Fenix ECOSUN E 700 IKP Mounting Instructions

ECOSUN LOW-TEMPERATURE RADIANT HEATING PANELS
Dimensions
Type
mm
E 700 IKP
E 700 IN 592x1192x30
(40)
E 700 IN-2

Use:

Especially for heating in industrial and agricultural applications.

Description:

Low-temperature radiant panels are assembled from a two-part case (FeZn 0.6mm) sealed against
the outside environment with sealant (IN, IN-2); all seams and openings are puttied (IKP). The heating
element is a resistive conductor. The front and sides of the panel are given a special surface treatment
based on dispersion acrylic paint and silica sand. The back side of the panel is not painted.
Power cords:
E 700 IKP: rubber cord H05 RR-F 3G1
E 700 IN: silicon cord V05SS-F 3G x 0.75
E 700 IN-2: silicon cord V05SS-F 3G x 1 with a protective sleeve
Bushings:
E 700 IKP: F0705SR-5R1
E 700 IN: plastic V-TEC PG 9
E 700 IN-2: metal AGRO AG

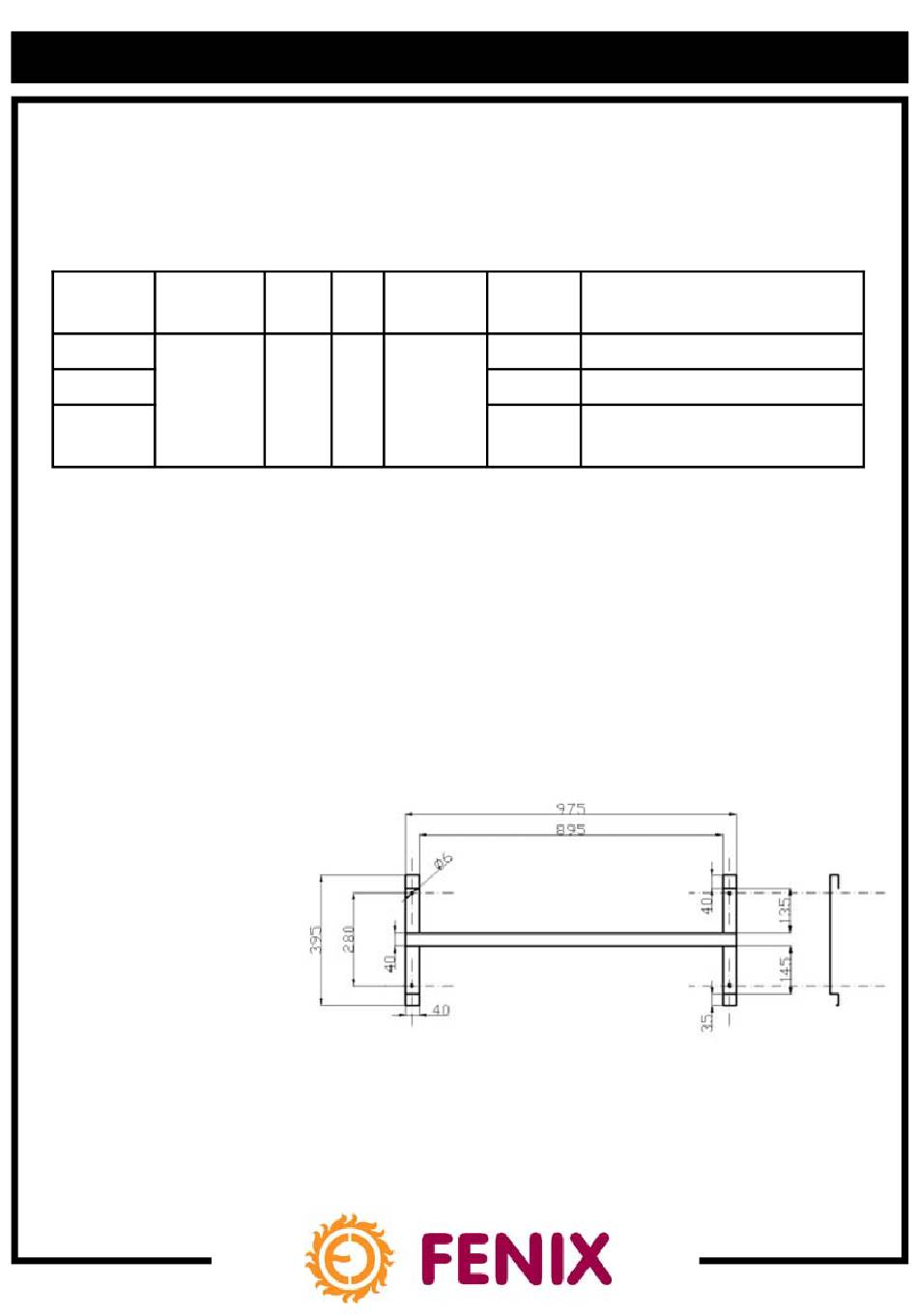

Dimensions of the mounting frame:

Installation:

Panels are installed beneath the ceilings, hung with chains or ropes. When using a mounting frame, they
are attached directly to the ceiling. If the ceiling is made of a fl ammable material, it is necessary to mount
the panels at least 5 cm from the fl ammable surface. Flammable objects must be at least 10 cm from the
front and sides.
MOUNTING INSTRUCTIONS
IKP, IN, IN-2
Voltage Input Safety
V W classification
230 700 I
Degree of Application areas and heating
protection
IP 54
IP 65
Areas 1,2 (SNV 1,2)
IP 65
II 2G Ex e II T3
N150/R03 (24.09.13)
categories
