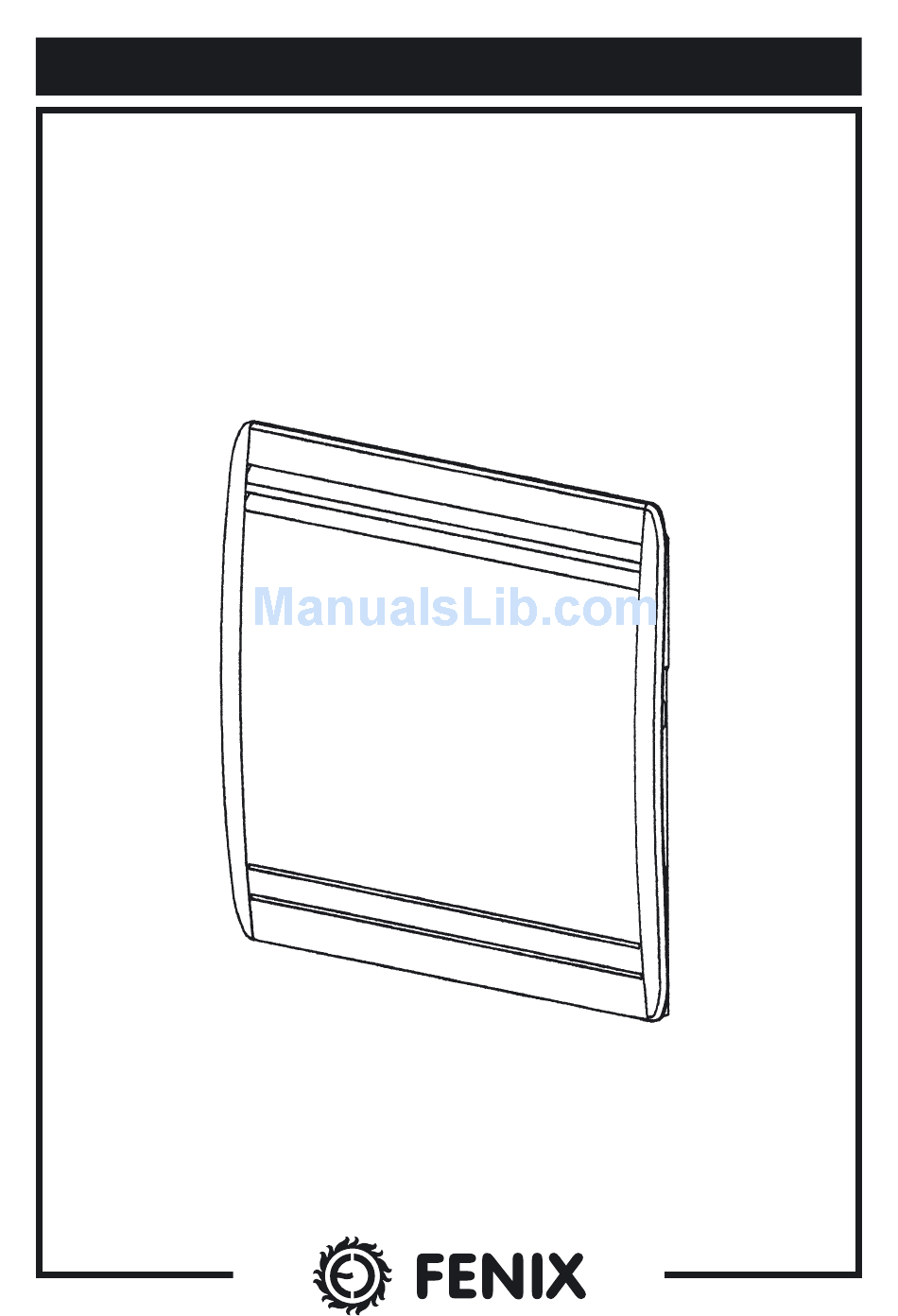

N162/R01(27.02.07)
USER'S GUIDE
ACTUA
NATURAL CONVECTION HEATER

Advertisement

loading
Need help?

Need help?

Do you have a question about the Actua and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fenix Actua

Summary of Contents for Fenix Actua

  • Page 1 N162/R01(27.02.07) USER'S GUIDE ACTUA NATURAL CONVECTION HEATER...

  • Page 2: Table Of Contents

    FOREWORD - You have just bought this natural convection heater ACTUA manufactured by Airélec. Thank you for your choice that proves your confidence. - It is important to read the entire guide carefully before installing and switching on your convector.

  • Page 3: Characteristics

    CURRENT WATTAGE VOLTAGE HEIGHT WIDTH DEPTH INTENSITY REFERENCE (mm) (mm) (mm) A689101 (ACTUA ETP 05) A689102 (ACTUA ETP 07) A689103 (ACTUA ETP 10) 1000 87+32 A689104 (ACTUA ETP 12) 1250 A689105 (ACTUA ETP 15) 1500 A689106 (ACTUA ETP 17) 1750...

  • Page 4: Recommendations For Positioning

    RECOMMENDATIONS FOR POSITIONING This convector is usually situated in a place where the heat produced can be mixed with the maximum volume of air. The convector must be connected in a fixed position according to applicable regulations. The convector must be installed in such a way that its switches and other controls are out of the reach of any person situated in the batch or under the shower.

  • Page 5: Installation And Fixation

    INSTALLATION AND FIXATION WATTAGE 500W 750W 1000W 1250W 1500W 1750W 2000W Convector 409mm 409mm 489mm 569mm 649mm 769mm 849mm width Distance 156mm 156mm 178mm 248mm 320mm 405mm 405mm between axes To carry out this operation, it is necessary to remove the bracket from the convector with a screwdriver, pressing both the clips (Pos.1 Fig.

  • Page 6: Wiring

    WIRING The installation must include an interrupting device for the disconnection in all poles. The minimum distance of disconnected contacts must be at least 3 mm. Current supply must be protected with a differential residual device intended at most for the value equal to 30 mA in accordance with the provisions of the standard NFC15-100.
  • Page 7 ACTIVITY The electronic control of this device has been designed to give you maximum economy. THE CONTROL BOX INCLUDES: THE FUNCTION SWITCH ALLOWS YOU TO SELECT 5 FUNCTIONS STOP (ARRET): to stop the heating (a stand-by mode). COMFORT (CONF): the comfort temperature is maintained in the room with a control knob set to the Comfort mode.

  • Page 8: Operation

    SETTING OF FUNCTIONS FOR MAXIMAL ECONOMY: case: YOU ARE IN THE ROOM. Set the function switch to the Comfort position. The reached temperature corresponds to the originally set temperature. In case of need, adjust the temperature with a thermometer. case: YOU ARE NOT IN THE ROOM OR DURING NIGHT. Set the function switch to the ECO position.
  • Page 9 USE OF THE 6 ORDER MODE THROUGH THE PILOT CONDUCTOR If your installation is controlled by the Tempo EDF type controller (French Electrical Companies), the decrease of temperature values Comfort 1 or Comfort 2 will be made according to the order of this controller in compliance with a tariff season. The following 6 orders are in question: Comfort, ECO, Comfort 1, Comfort 2, Anti-Freeze Mode and Stop (see the table in Chapter 4).

  • Page 10: Maintenance

    USER ADVICE: Remember: Your convector is equipped with an electronic thermostat to maintain a constant temperature. When the setting has been made through the control knob, do not touch the knob any more. Then use exclusively these positions of the function switch: Anti-Freeze Mode, ECO, Comfort, Programming and/or Stop.
  • Page 11 - Identification of Your Convector - The rating plate is situated in the right lower part of your convector (the control part) and enables to identify your convector. The rating plate includes the following data: - Complete convector references and its serial number (pos. A) – must be specified in case of after-sale service - Wattage (pos.
  • Page 12 THE STUDY, THE DESIGN AND THE MANUFACTURE OF THIS CONVECTOR HAVE BEEN MADE CAREFULLY TO PROVIDE YOU WITH COMPLETE SATISFACTION. Fenix Trading s.r.o., Slezská 2, 790 01 Jeseník tel.: +420 584 495 304, fax: +420 584 495 431 e-mail: fenix@fenixgroup.cz • www.fenixgroup.cz...
