Instructions for use and installation
1. Basic technical data
Type
ECOSUN S+ 06 *
ECOSUN S+ 08 *
ECOSUN S+ 09
ECOSUN S+ 12
ECOSUN S+ 18
ECOSUN S+ 24
ECOSUN S+ 30
ECOSUN S+ 36
* version Ecosun S+
2. Use
Radiant panels are intended for the heating of large spaces, mainly industrial halls and workshops, etc., warehouses, shops, function halls
and sports halls. They can also be used for the local heating of designated areas (zonal temperature maintenance).
The Ecosun S+ ANTICOR model is intended for environments with an increased risk of corrosion.
The panel is constructed for use in environments with splashing water. However, rapid cooling of the panel when it is hot can result in
irreversible damage to it.
3. Installation
Installation of these panels may only be carried out by a person with a specialized qualification. The electrical
wiring must comply with the valid norms in the country of installation. The panels can either be hung from the
ceiling on four fixtures using a chain or cords, or with the help of installation brackets. The brackets are
supplied disassembled in the terminal and need to be attached before installation of the panel. The brackets
can be supplemented with a swivel bracket – an inclinable bracket (not part of the product package).

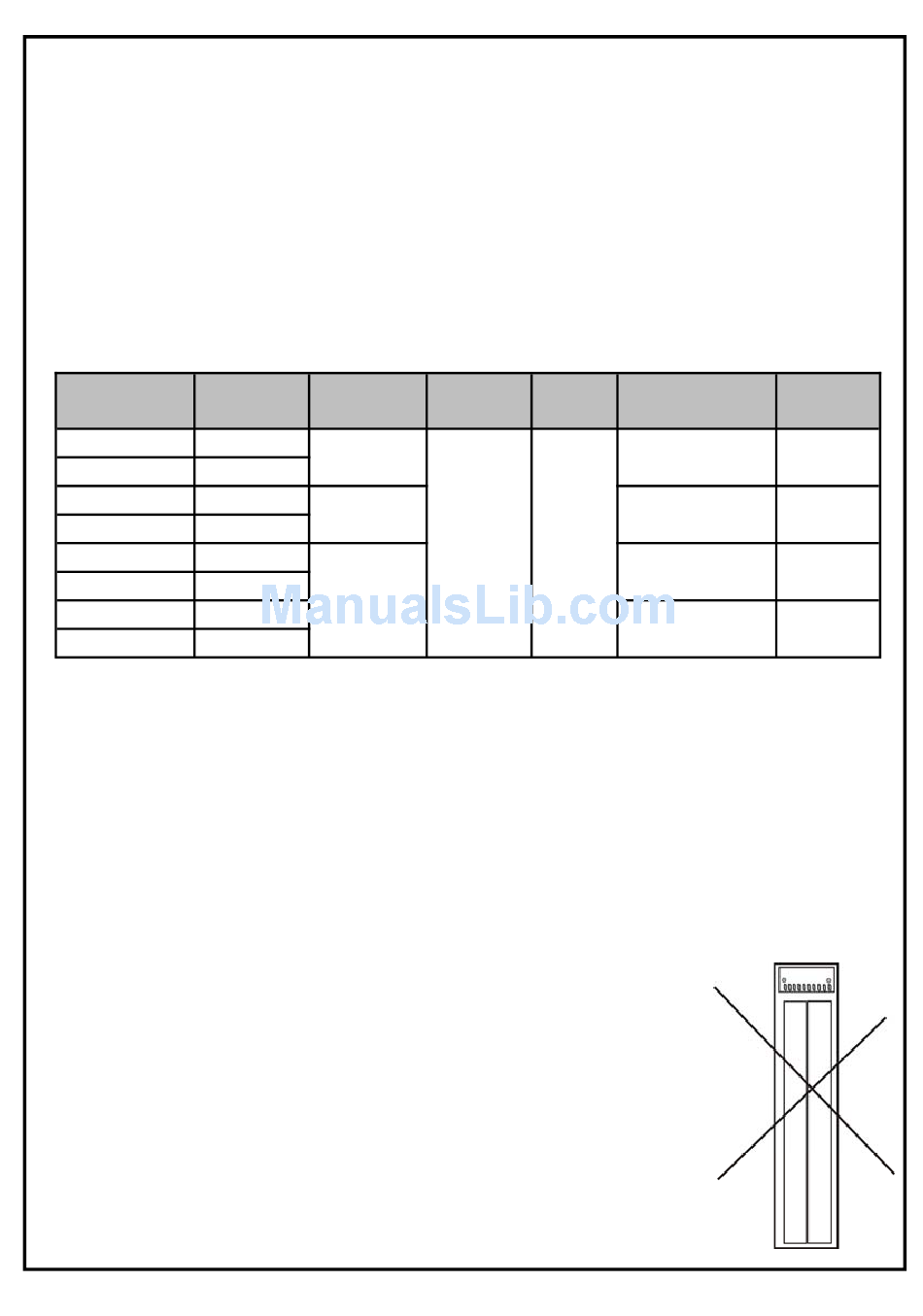

The radiant panel can be installed at an angle as well as vertically. However it must not be installed at an
angle or vertically in such a way that the terminal is the highest part of the panel. There is higher convection
of heat when the panel is in a tilted position and this heat would irreversibly damage the electrical compo-
nents of the terminal.

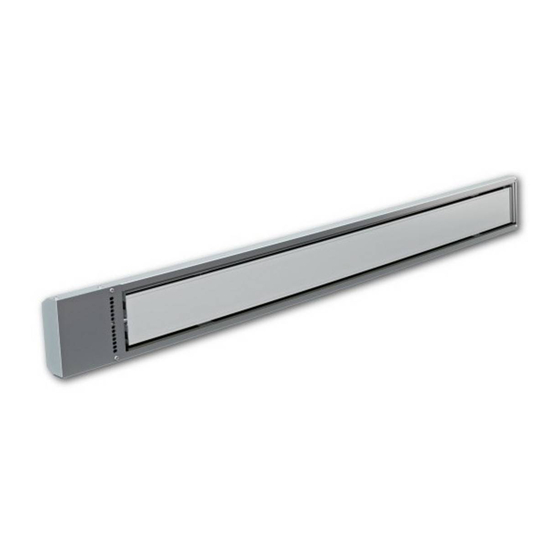

Radiant electric heating panel: ECOSUN S+
Wattage
Voltage
W
V
600
230/400V 3N
850
900
230 V 1N
1200
1800
2400
230/400V 3N
3000
3600
ECOSUN S+ ANTICOR
Protection
IP
class
I
IP 44
N529/R02 (02.10.13)
Dimensions
Weight
mm
650 x 250 x 60
1550 x 150 x 60
1550 x 250 x 60
12,35
1550 x 350 x 60
16,65
kg
4,9
7,8
Advertisement
Related Manuals for Fenix ECOSUN S+
Summary of Contents for Fenix ECOSUN S+
- Page 1 N529/R02 (02.10.13) Instructions for use and installation Radiant electric heating panel: ECOSUN S+ ECOSUN S+ ANTICOR 1. Basic technical data Wattage Voltage Protection Dimensions Weight Type class ECOSUN S+ 06 * 230/400V 3N 650 x 250 x 60 ECOSUN S+ 08 * ECOSUN S+ 09 230 V 1N 1550 x 150 x 60...
- Page 2 Spacing Note ECOSUN S+ 06 100 x 300 ECOSUN S+ 08 ECOSUN S+ 09 − 40 x 1000 diameter of the opening in the brackets: 6 mm ECOSUN S+ 12 − when handling the panel, it is not advisable to ECOSUN S+ 18 touch its radiant surface with dirty hands 100 x 1000...
- Page 3 3.5 mm for all poles, must be built into the distribution system. Regulation is provided via room thermostats with time switching (offered by FENIX) which switch power relays or contactors. For larger buildings, a microprocessor control system is suitable.
- Page 4 6. Warranty conditions 24 months from the date of sale. The warranty does not cover faults caused during transportation, unsuitable storage or unqualified installation. You can find the current and full warranty conditions at: www.fenixgroup.eu 7. Warning When the panel heats up for the first time, the thermal insulation is burnt, which causes a harmless smell (smoke) for a period of max. 60 minutes.
