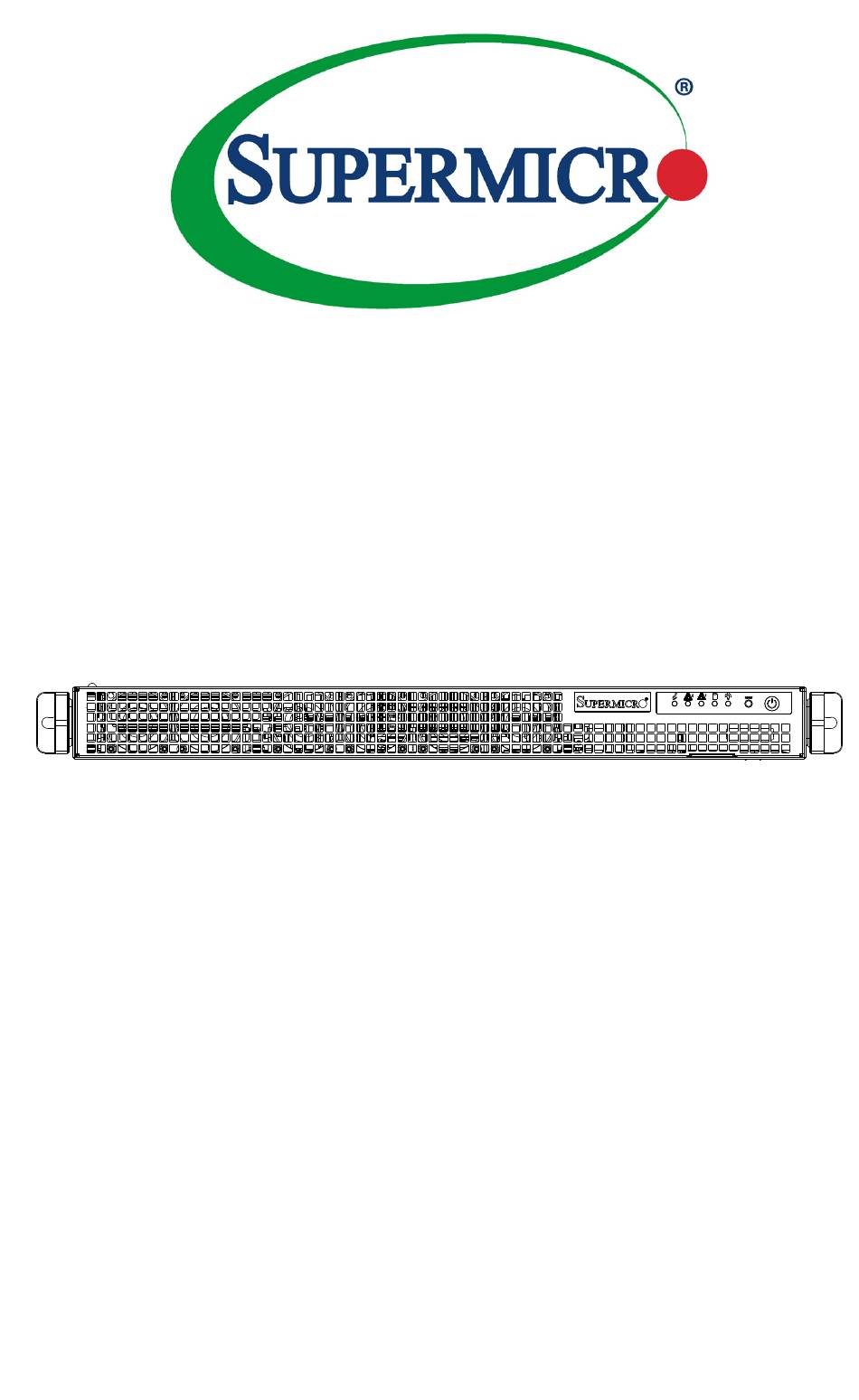

S
S
UPER
ERVER
®
6018R-MD
6018R-MDR
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERSERVER 6018R-MD and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SUPERSERVER 6018R-MD

Summary of Contents for Supermicro SUPERSERVER 6018R-MD

  • Page 1 UPER ERVER ® 6018R-MD 6018R-MDR USER’S MANUAL...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It pro- vides information for the installation and use of the SuperServer 6018R-MD/MDR. Installation and maintainance should be performed by experienced technicians only. The SuperServer 6018R-MD/MDR is a high-end server based on the SC514-505/ R400C chassis and the X10DRD-L serverboard.
  • Page 4 UPER ERVER 6018R-MD/MDR User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X10DRD-L serverboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfiguring the serverboard.
  • Page 5 Notes...

  • Page 6: Table Of Contents

    System Power ....................1-3 Hard Drives ..................... 1-3 Control Panel ....................1-3 Cooling System ....................1-3 Contacting Supermicro ..................1-5 Chapter 2 Rack Installation Preparing for Setup ..................2-1 Choosing a Setup Location ................2-1 Warnings and Precautions ................2-2 Rack Precautions ....................
  • Page 7 Reset ....................... 3-2 Power ......................3-2 Control Panel LEDs ..................3-2 Information LED ....................3-2 NIC2 ........................ 3-3 NIC1 ........................ 3-3 HDD ......................... 3-3 Power ......................3-3 Power Supply LEDs ..................3-4 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 UPER ERVER 6018R-MD/MDR User's Manual X10DRD-L Quick Reference ................. 5-12 Connector Definitions ................... 5-13 Jumper Settings .................... 5-19 5-10 Onboard Indicators ..................5-21 5-11 SATA Ports ....................5-22 5-12 Installing Drivers .................... 5-23 SuperDoctor® 5 .................... 5-24 5-13 Onboard Battery .................... 5-25 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices ..................

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 6018R-MD/MDR is a 1U server comprised of two main subsys- tems: the SC514-505/R400C chassis and the X10DRD-L serverboard. Please refer to our website for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 10: Serverboard Features

    ERVER 6018R-MD/MDR User's Manual Serverboard Features At the heart of the SuperServer 6018R-MD/MDR lies the X10DRD-L, a dual proces- sor serverboard based on Intel's C612 chipset. Below are the main features of the X10DRD-L (see Figure 1-1 for a block diagram of the chipset).

  • Page 11: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features The following is a general outline of the main features of the SC514-505/R400C chassis. System Power The SC514-505 chassis (used for the 6018R-MD) features a single 500W power supply. Power must be removed from the system when removing the power supply. The SC514-R400C chassis (used for the 6018R-MDR) features a redundant 400W power supply.

  • Page 12: System Block Diagram

    UPER ERVER 6018R-MD/MDR User's Manual Figure 1-1. Intel C612 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. X10DRD-L/LT VCCP0 12v VCCP1 12v VR12.5 VR12.5 4 PHASE 4 PHASE 145W 145W 9.6 GT/s CPU2 (Right) CPU1 (Left) PROCESSOR...

  • Page 13: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 14 UPER ERVER 6018R-MD/MDR User's Manual Notes...

  • Page 15: Chapter 2 Rack Installation

    Chapter 2: Rack Installation Chapter 2 Rack Installation This chapter provides instructions for mounting your chassis in a rack. Preparing for Setup The box in which your system was shipped should include two sets of rail assemblies, two rail mounting brackets and the mounting screws to mount the system into the rack.

  • Page 16: Warnings And Precautions

    UPER ERVER 6018R-MD/MDR User's Manual Warnings and Precautions Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. In multiple rack installations, the racks should be coupled together.

  • Page 17: Rack Mounting Considerations

    Chapter 2: Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 18: Installing The System Into A Rack

    UPER ERVER 6018R-MD/MDR User's Manual Installing the System into a Rack This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure differs slightly.

  • Page 19: Assembling The Outer Rails

    Chapter 2: Rack Installation Assembling the Outer Rails Each outer rail comes in two sections that must be assembled before mounting onto the rack. Assembling the Outer Rails 1. Identify the left and right outer rails by examining the ends, which bend outward. Match the left front outer rail with the left rear outer rail and the same for the right rails.

  • Page 20: Installing The Outer Rails Onto The Rack

    UPER ERVER 6018R-MD/MDR User's Manual Installing the Outer Rails onto the Rack Each end of the assembled outer rail includes a bracket with square pegs to fit into your rack holes. If you have an older rack with round holes, these brackets must be removed, and you must use screws to secure the rail to the rack.

  • Page 21: Sliding The Chassis Onto The Rack Rails

    Chapter 2: Rack Installation Sliding the Chassis onto the Rack Rails Installing the Chassis into a Rack 1. Align the chassis rails with the front of the rack rails. 2. Slide the chassis rails into the rack rails, keeping the pressure even on both sides.

  • Page 22: Installing The Server Into A Two Post Rack

    UPER ERVER 6018R-MD/MDR User's Manual Installing the Server into a Two Post Rack Optional brackets (p/n MCP-290-00016-0N) are needed to install the server to a two post (telco type) rack. Use the two L-shaped brackets on either side of the chassis (four total).

  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are two buttons and several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 24: Control Panel Buttons

    UPER ERVER 6018R-MD/MDR User's Manual Control Panel Buttons The chassis includes two push-buttons. Reset Use the reset button to reboot the system. Power The main power switch is used to apply or remove power from the power supply to the server. Turning off system power with this button removes the main power but maintains standby power.

  • Page 25: Nic2

    Chapter 3: System Interface NIC2 Indicates network activity on GLAN2 when flashing. NIC1 Indicates network activity on GLAN1 when flashing. Indicates IDE channel activity on the hard drive when flashing. Power Indicates power is being supplied to the system power supply units. This LED should normally be illuminated when the system is operating.

  • Page 26: Power Supply Leds

    UPER ERVER 6018R-MD/MDR User's Manual Power Supply LEDs On the rear of the power supply module, an LED displays the status. • Solid Green: When illuminated, indicates that the power supply is on. • Solid Amber: When illuminated, indicates the power supply is plugged in and turned off, or the system is off but in an abnormal state.

  • Page 27: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certified technicians should attempt to install or configure components. Read this chapter in its entirety before installing or configuring components in the Supermicro chassis. Some warnings may not apply for your system. These warnings may also be found on our web site at www.supermicro.com/about/ policies/safety_information.cfm.
  • Page 28 UPER ERVER 6018R-MD/MDR User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Chapter 4: Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬...

  • Page 30: Installation Instructions

    UPER ERVER 6018R-MD/MDR User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 32: Power Disconnection Warning

    UPER ERVER 6018R-MD/MDR User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 34: Equipment Installation

    UPER ERVER 6018R-MD/MDR User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 36: Battery Handling

    UPER ERVER 6018R-MD/MDR User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 38: Redundant Power Supplies (If Applicable To Your System)

    UPER ERVER 6018R-MD/MDR User's Manual Redundant Power Supplies (if applicable to your system) Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。...

  • Page 39: Backplane Voltage (If Applicable To Your System)

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에...

  • Page 40: Comply With Local And National Electrical Codes

    UPER ERVER 6018R-MD/MDR User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 42: Hot Swap Fan Warning (If Applicable To Your System)

    UPER ERVER 6018R-MD/MDR User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 43 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 44: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 45 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 46 UPER ERVER 6018R-MD/MDR User's Manual Notes 4-20...

  • Page 47: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the X10DRD-L serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 48: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing a CPU 1. There are two levers on the LGA 2011 socket.
  • Page 49 Chapter 5: Advanced Serverboard Setup 3. With the second lever fully Open the load plate. retracted, gently push down on the "Open 1st" lever to loosen the load plate. Lift the load plate with your fingers to open it completely. 4.
  • Page 50 UPER ERVER 6018R-MD/MDR User's Manual Gently close the load plate. 7. With the "Close 1st" lever fully retracted, gently close the load plate. Push down and lock the lever labeled "Close 1st". 8. Make sure the locking mechanism on the "Close 1st" lever catches the lip of the load plate.

  • Page 51: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the serverboard and the heatsink bracket underneath.

  • Page 52: Connecting Cables

    UPER ERVER 6018R-MD/MDR User's Manual Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from blocking the flow of cooling air that moves through the system from front to back.

  • Page 53: I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-2. Front Control Panel Header Pins (JF1) Ground Power Button Ground Reset Button Power Fail LED 3.3V OH/Fan Fail/ UID LED PWR Fail LED) NIC2 Activity LED NIC2 Link LED NIC1 Activity LED NIC1 Link LED UID Switch HDD LED FP PWRLED...

  • Page 54: Installing Memory

    UPER ERVER 6018R-MD/MDR User's Manual Installing Memory Note: Check the Supermicro web site for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing DIMMs 1. Insert the desired number of DIMMs into the memory slots, starting with slots DIMMA1.

  • Page 55: Memory Modules

    Chapter 5: Advanced Serverboard Setup Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU 1 DIMMA1 DIMMB1 DIMMC1 DIMMD1 CPU2 DIMME1 DIMMF1 DIMMG1 DIMMH1 Processor and Memory Module Population for Optimal Performance Number of CPU and Memory Population Configuration Table CPUs+DIMMs (For memory to work properly, please follow this table.) 1 CPU &...

  • Page 56: Adding Pci Expansion Cards

    UPER ERVER 6018R-MD/MDR User's Manual Adding PCI Expansion Cards PCI Expansion Slots One RSC-RR1U-E8 riser card is used to support a FHHL (full-height, half-length) size expansion (add-on) card to the system. PCI Card Installation Before installing a PCI add-on card, make sure it is supported by the riser card. Begin by releasing the locking tab that corresponds to the slot you wish to populate.

  • Page 57: Serverboard Details

    Chapter 5: Advanced Serverboard Setup Serverboard Details Figure 5-5. SUPER X10DRD-L Layout LAN2 LAN1 USB0/1 JUSBRJ45 COM1 AST2400 USB2/3 JIPMB1 IPMI_LAN Intel LAN CTRL X10DRD-L BIOS REV:1.00 IPMI CODE BAR CODE BIOS LICENSE SAN MAC MAC CODE CPU2 CLOSE 1st JBT1 CPU1 OPEN 1st...

  • Page 58: X10Drd-L Quick Reference

    UPER ERVER 6018R-MD/MDR User's Manual X10DRD-L Quick Reference Jumper Description Default Setting JBT1 Clear CMOS See Section 5-9 C1/JI SMB to PCI-E Slots Enable/Disable Pins 2-3 (Disabled) JPB1 BMC Enable/Disable Pins 1-2 (Enabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1 Gigabit LAN 1/2 Enable/Disable Pins 1-2 (Enabled) JPME2...

  • Page 59: Connector Definitions

    Chapter 5: Advanced Serverboard Setup Connector Definitions ATX Power 24-pin Connector Pin Definitions (JPW1) Pin# Definition Pin # Definition Power Connectors +3.3V +3.3V A 24-pin main ATX power supply connec- -12V +3.3V tor (JPWR1) and two 8-pin CPU power connectors (JPWR2/3) are included on PS_ON the serverboard.
  • Page 60 UPER ERVER 6018R-MD/MDR User's Manual NIC1/NIC2 LED Indicators NIC1/2 LED Pin Definitions (JF1) The NIC (Network Interface Controller) Pin# Definition LED connection for LAN port 1 is located NIC 2 Activity LED on pins 11 and 12 of JF1, and the LED NIC 2 Link LED connection for LAN port 2 is on pins 9 and NIC 1 Activity LED...
  • Page 61 Chapter 5: Advanced Serverboard Setup Power Button The Power Button connection is located Power Button on pins 1 and 2 of JF1. Momentarily Pin Definitions (JF1) contacting both pins will power on/off the Pin# Definition system. To turn off the power when the Signal system is in suspend mode, press the Ground...
  • Page 62 Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI user's guide posted on our website @ http:// www.supermicro.com. Fan Headers The X10DRD-L has eight fan headers (Fan1 ~ Fan8). These are 4-pin fan head-...

  • Page 63: Chassis Intrusion

    Chapter 5: Advanced Serverboard Setup Internal Speaker Internal Buzzer (SP1) Pin Definition The Internal Speaker, located at SP1, can Pin# Definitions be used to provide audible indications for Pin 1 Pos. (+) Beep In various beep codes. See the table on the Pin 2 Neg.
  • Page 64 UPER ERVER 6018R-MD/MDR User's Manual T-SGPIO 0/1 Headers Serial_Link-SGPIO Two T-SGPIO (Serial-Link General Pin Definitions Purpose Input/Output) headers are Pin# Definition Definition included to communicate with the en- closure management chip in the system. Ground DATA Out I-SGPIO1 supports onboard I-SATA 0-3 Load Ground ports, while I-SGPIO2 supports I-SATA...

  • Page 65: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used to choose between Connector optional settings. Jumpers create shorts Pins between two pins to change the function of the connector. Pin 1 is identified with Jumper a square solder pad on the printed circuit board.
  • Page 66 UPER ERVER 6018R-MD/MDR User's Manual C Bus to PCI-Express Slots Use jumpers JI C1 and JI C2 to connect C for PCI-E slots Jumper Settings the System Management Bus (I C) to Jumper Setting Definition the PCI-Express slots to improve PCI Pins 1-2 Enabled performance.

  • Page 67: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup 5-10 Onboard Indicators LAN1/2 LEDs LAN1/2 Link LED (Left) LED State Each Ethernet LAN port has two LEDs. LED Color Definition The green LED indicates activity, while 10 Mbps or No Connection the other Link LED may be green, am- Green 100 Mbps ber, or off to indicate the speed of the...

  • Page 68: 5-11 Sata Ports

    SATA Ports Six SATA 3.0 ports (I-SATA 0-5), supported by the Intel PCH C612, are located on the serverboard. Note that I-SATA 4/5 also support Supermicro SuperDOMs, which are yellow SATA DOM (Device-On-Module) connectors with power pins built in and do not require separate external power cables. SuperDOMs are backward- compatible with non-Supermicro SATA DOMs that require the external power supply.

  • Page 69: 5-12 Installing Drivers

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Drivers The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your serverboard.

  • Page 70: Superdoctor® 5

    ERVER 6018R-MD/MDR User's Manual SuperDoctor® 5 The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program moni- tors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 71: 5-13 Onboard Battery

    Chapter 5: Advanced Serverboard Setup 5-13 Onboard Battery Care must be taken to assure that the chassis cover is in place when the system is operating to assure proper cooling. Out of warranty damage to the system can occur if this practice is not strictly followed. Figure 5-7.
  • Page 72 UPER ERVER 6018R-MD/MDR User's Manual Notes 5-26...

  • Page 73: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the chassis. The only tool required is a Phillips screwdriver. Review the warnings and precautions listed in the manual before setting up or servicing this chassis.

  • Page 74: Removing Power From The System

    UPER ERVER 6018R-MD/MDR User's Manual Figure 6-1. 6018R-MD/6018R-MDR Front and Rear Views Control Panel 6018R-MDR Rear I/O Ports PCI Slots 6018R-MD Rear I/O Ports PCI Slots Removing Power from the System Before performing setup or maintenance tasks, use the following procedure to ensure that power has been removed from the system.
  • Page 75 Chapter 6: Advanced Chassis Setup Thumb screw Figure 6-2. Removing the Chassis Cover...

  • Page 76: Installing Hard Drives

    UPER ERVER 6018R-MD/MDR User's Manual Installing Hard Drives The 6018R-MDR supports two fixed 2.5" hard disk drives. The 6018R-MD supports two fixed 2.5" or one 3.5" hard disk drives. The use of enterprise level hard drives only is recommended. Installing Hard Disk Drives 1.
  • Page 77 Chapter 6: Advanced Chassis Setup Figure 6-5. Securing the Bracket to the HDD Tray (3.5" Drives) Figure 6-6. Securing the HDD Tray to the Chassis Floor...

  • Page 78: System Fans

    UPER ERVER 6018R-MD/MDR User's Manual System Fans The SC514 chassis includes five heavy-duty fans plus the option to add one additional fan for system coolong. Replacing a System Fan 1. If necessary, open the chassis cover while the power is running to determine which fan requires changing.
  • Page 79 Chapter 6: Advanced Chassis Setup Figure 6-7. Fan Layout Figure 6-8. Removing a Fan from the Fan Housing...

  • Page 80: Installing Expansion Cards

    UPER ERVER 6018R-MD/MDR User's Manual Installing Expansion Cards The system supports one full-height, half-length PCI Express expansion card. The expansion card is installed using a riser card and a riser bracket. Screw Install Expansion Card Figure 6-9. Removing the Riser Bracket Installing Expansion Cards 1.
  • Page 81 Chapter 6: Advanced Chassis Setup Figure 6-10. Riser Card Bracket...

  • Page 82: Power Supply

    UPER ERVER 6018R-MD/MDR User's Manual Power Supply 6018R-MD The 6018R-MD has a single 500W power supply. The power supply is auto-switching capable, which enables it to automatically sense and operate at a 100v to 240v input voltage. Changing a Single Power Supply 1.

  • Page 83: 6018R-Mdr

    100V-240V input voltage. If a power supply unit fails, it can be changed without powering down the system. Replacement units can be ordered directly from Supermicro. Changing a Redundant Power Supply 1. Press the release button on the failed power supply.
  • Page 84 UPER ERVER 6018R-MD/MDR User's Manual Notes 6-12...

  • Page 85: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. Note: The AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.

  • Page 86: How To Start The Setup Utility

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 87 Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 p.m. appears as 17:30:00. Supermicro X10DRD-iT BIOS Version: This item displays the version of the BIOS ROM used in the system.

  • Page 88: Advanced Setup Configurations

    UPER ERVER 6018R-MD/MDR User's Manual Advanced Setup Configurations Use the arrow keys to select the Advanced tab and press <Enter> to access the submenu items: Warning: Take caution when changing the Advanced settings. An incorrect value, a wrong DRAM frequency, or an improper timing setting may cause the system to mal- function.

  • Page 89: Power Configuration

    Chapter 7: BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the <F1> key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 90: Cpu Configuration

    UPER ERVER 6018R-MD/MDR User's Manual CPU Configuration  This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to configuration CPU settings. Socket 1 CPU Information/Socket 2 CPU Information This submenu displays the following information regarding the CPU installed in Socket 1 and/or Socket 2 as detected by the BIOS.
  • Page 91 Chapter 7: BIOS Execute Disable Bit (Available if supported by the OS & the CPU) Select Enable to enable the Execute-Disable Bit technology which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during an attack.

  • Page 92: Advanced Power Management Configuration

    UPER ERVER 6018R-MD/MDR User's Manual Intel Virtualization Technology (Available when supported by the CPU) Select Enable for Intel Virtualization Technology support, which will allow one platform to run multiple operating systems and applications in independent parti- tions, creating multiple "virtual" systems in one physical computer. The options are Enable and Disable.
  • Page 93 Chapter 7: BIOS  CPU P State Control (Available when Power Technology is set to Custom) EIST (P-States) (Available when Power Technology is set to Custom) EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation.

  • Page 94: Chipset Configuration

    UPER ERVER 6018R-MD/MDR User's Manual Enhanced Halt State (C1E) Select Enable to use Enhanced Halt-State technology, which will significantly reduce CPU power consumption by reducing CPU clock cycle and voltage during a halt-state. The options are Disable and Enable.  CPU T-State Control (Available when Power Technology is set to Custom) ACPI (Advanced Configuration Power Interface) T-States Select Enable to support CPU throttling by the operating system to reduce power...

  • Page 95: Ioat Configuration

    Chapter 7: BIOS CPU1 SLOT4 PCI-E 3.0 x8 Use this feature to set the PCI-E bus speed for the slot specified above. The options are Gen (Generation) 1 (2.5 GT/s), Gen (Generation) 2 (5 GT/s), and Gen (Generation) 3 (8 GT/s). IIO2 Configuration CPU2 SLOT7 PCI-E 3.0 x8 Use this feature to set the PCI-E bus speed for the slot specified above.
  • Page 96 UPER ERVER 6018R-MD/MDR User's Manual Interrupt Remapping Select Enable for Interrupt Remapping support to enhance system performance. The options are Enable and Disable. QPI (Quick Path Interconnect) Configuration QPI General Configuration The following QPI information will be displayed: • Number of CPU •...

  • Page 97: Memory Configuration

    Chapter 7: BIOS Isoc Mode Select Enable to enable Isochronous support to meet QoS (Quality of Service) requirements. This feature is especially important for virtualization technology. The options are Disable and Enable. Memory Configuration Integrated Memory Controller (IMC) Enforce POR Select Enabled to enforce POR restrictions on DDR4 frequency and voltage programming.
  • Page 98 UPER ERVER 6018R-MD/MDR User's Manual • P1-DIMMA1 • P1-DIMMB1 • P1-DIMMC1 • P1-DIMMD1 • P2-DIMME1 • P2-DIMMF1 • P2-DIMMG1 • P2-DIMMH1 Memory RAS (Reliability-Availability-Serviceability) Configuration Use this submenu to configure the following Memory RAS settings. Memory RAS Configuration Setup RAS Mode When Disable is selected, RAS is not supported.

  • Page 99: South Bridge Configuration

    Chapter 7: BIOS Patrol Scrub Interval This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0 to 24. Demand Scrub Demand scrubbing is a process that allows the CPU to correct correctable memory errors found on a memory module.
  • Page 100 UPER ERVER 6018R-MD/MDR User's Manual EHCI1 Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on USB 2.0 connector #1. (At least one USB 2.0 connector should be enabled for EHCI support.) The options are Disabled and Enabled. EHCI2 Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on USB 2.0 connector #2.

  • Page 101: Sata Configuration

    Chapter 7: BIOS SATA Configuration  When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following items: SATA Controller This item enables or disables the onboard SATA controller supported by the Intel PCH chip.
  • Page 102 UPER ERVER 6018R-MD/MDR User's Manual Port 0-5 SATA Device Type Use this item to specify if the SATA port specified by the user should be con- nected to a solid state drive or a hard disk drive. The options are Hard Disk Drive and Solid State Drive.
  • Page 103 Chapter 7: BIOS Port 0-5 Hot Plug Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a SATA disk drive installed on this port without shutting down the system. The options are Enabled and Disabled. Port 0-5 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device.
  • Page 104 UPER ERVER 6018R-MD/MDR User's Manual sSATA Port 0-3 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device. The options are Disabled and Enabled. Port 0-3 sSATA Device Type Use this item to specify if the sSATA port specified by the user should be con- nected to a solid state drive or a hard disk drive.
  • Page 105 Chapter 7: BIOS sSATA Port 0-3 Hot Plug Select Enabled to support hot-plugging on the port specified by the user, which will allow the user to replace an sSATA drive without shutting down the system. The options are Disabled and Enabled. sSATA Port 0-3 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device.
  • Page 106 UPER ERVER 6018R-MD/MDR User's Manual Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled. SR-IOV (Available if the system supports Single-Root Virtualization) Select Enabled for Single-Root IO Virtualization support.

  • Page 107: Super Io Configuration

    Chapter 7: BIOS Onboard LAN1 Option ROM/Onboard LAN2 Option ROM Use this option to select the type of device installed in LAN Port1 or LAN Port2 used for system boot. The options for LAN1 Option ROM are Disabled, PXE, iSCSI, and FCoE.

  • Page 108: Serial Port Console Redirection

    UPER ERVER 6018R-MD/MDR User's Manual The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12). The options for Serial Port 2 are Auto, (IO=2F8h;...
  • Page 109 Chapter 7: BIOS Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd.
  • Page 110 UPER ERVER 6018R-MD/MDR User's Manual Redirection After BIOS Post Use this feature to enable or disable legacy Console Redirection after BIOS Power-On Self-Test (POST). When the option BootLoader is selected, legacy Console Redirection is disabled before booting the OS. When the option Always Enable is selected, legacy Console Redirection remains enabled upon OS bootup.
  • Page 111 Chapter 7: BIOS in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space. Stop Bits A stop bit indicates the end of a serial data packet.
  • Page 112 UPER ERVER 6018R-MD/MDR User's Manual Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) The submenu allows the user to configure Console Redirection settings to sup- port Out-of-Band Serial Port management. EMS Console Redirection Select Enabled to use a COM port selected by the user for EMS Console Redi- rection.

  • Page 113: Acpi Settings

    Please reboot the system for a change on this setting to take effect. The options are Enabled and Disabled. Note: Refer to the Supermicro TPM user's guide for more details on how to install and set up the TPM in the BIOS.
  • Page 114 UPER ERVER 6018R-MD/MDR User's Manual TPM State Select Enabled to use TPM (Trusted Platform Module) settings to enhance system data security. Please reboot your system for any change on the TPM state to take effect. The options are Disabled and Enabled. Pending Operation Use this item to schedule a TPM-related operation to be performed by a security device for system data integrity.

  • Page 115: Event Logs

    Chapter 7: BIOS Event Logs Use this feature to configure event log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS event log settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) event logging dur- ing system boot.

  • Page 116: View Smbios Event Log

    UPER ERVER 6018R-MD/MDR User's Manual SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events. The options are Enabled and Disabled. MECI (Multiple Event Count Increment) Enter the increment value for the multiple event counter. Enter a number between 1 to 255.

  • Page 117: Ipmi

    Chapter 7: BIOS IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the Baseboard Management Control (BMC) firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...

  • Page 118: Bmc Network Configuration

    UPER ERVER 6018R-MD/MDR User's Manual When SEL is Full This feature allows the user to determine what the BIOS should do when the sys- tem event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.

  • Page 119: Security Settings

    Chapter 7: BIOS Security Settings This menu allows the user to configure the following security settings for the system. Password Check If this feature is set to Setup, a password is required for a user to enter the BIOS Setup utility. If Always is selected, the user will need to enter a password when entering the BIOS setup utility and entering the Windows OS environment.

  • Page 120: Secure Boot Menu

    UPER ERVER 6018R-MD/MDR User's Manual Secure Boot Menu  System Mode Secure Boot Secure Boot Select Enabled for the system to bootup securely. The options are Disabled and Enabled. Secure Boot Mode This feature allows the user to select the desired secure boot mode for the system. The options are Standard and Custom.
  • Page 121 Chapter 7: BIOS  Set New KEK (Key Exchange Key) Select <Yes> to confirm that a new KEK will be set in the NVRAM (Non-Volatile RAM).  Append KEK (Key Exchange Key) Select <Yes> to load the new KEK from the manufacturer's defaults. Select <No> to load the new KEK from other sources.
  • Page 122 UPER ERVER 6018R-MD/MDR User's Manual  Set New DBX Select <Yes> to confirm that the new DBX files will be downloaded to the Non- Volatile RAM (NVRAM).  Append DBX (DataBase Timer) Select <Yes> to load the new DBX files from the manufacturer's defaults. Select <No>...

  • Page 123: Boot Settings

    Chapter 7: BIOS Boot Settings Use this feature to configure boot settings: Setup Prompt Timeout This feature allows the user to determine how long, in seconds, the system should wait for the setup activation key before it boots up. The default setting is 1. Boot Mode Select Use this item to select the type of device to be used for system boot.
  • Page 124 UPER ERVER 6018R-MD/MDR User's Manual • Dual Boot Order #6 • Dual Boot Order #7 • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 •...
  • Page 125 Chapter 7: BIOS • Legacy Boot Order #1  UEFI Application Boot Priorities • UEFI Boot Order #1 7-41...

  • Page 126: Save & Exit

    UPER ERVER 6018R-MD/MDR User's Manual Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Discard Changes and Exit Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 127 Chapter 7: BIOS Save As User Defaults Select this option and press <Enter> to save any changes to the BIOS setup for future use. Restore User Defaults Select this option and press <Enter> to retrieve user-defined settings that were saved previously. Boot Override This feature allows the user to override the boot priorities sequence in the Boot menu and immediately boot the system with another device specified by the user.
  • Page 128 UPER ERVER 6018R-MD/MDR User's Manual Notes 7-44...

  • Page 129: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed upon each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 130 UPER ERVER 6018R-MD/MDR User's Manual Notes...

  • Page 131: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors Dual Intel Xeon E5-2600 v3 Series processors in LGA2011 (Socket R3) sockets Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel PCH C612 Memory Capacity Eight DIMM sockets that can support up to 512 GB of load reduced (LRDIMM) or 256 GB of registered (RDIMM) DDR4-2133/1866/1600 memory Note: See the memory section in Chapter 5 for details.

  • Page 132: System Cooling

    UPER ERVER 6018R-MD/MDR User's Manual Chassis 6018R-MD: SC514-505 (1U rackmount) 6018R-MDR: SC514-R400C (1U rackmount) Dimensions: (WxHxD) 17.2 x 1.7 x 16.9 in. (437 x 43 x 429 mm) Weight, 6018R-MD: Gross: 28 lbs. (12.7 kg.) Net: 16 lbs. (7.26 kg.) Weight, 6018R-MDR: Gross: 26 lbs.

  • Page 133: Regulatory Compliance

    See www.dtsc.ca.gov/hazardouswaste/perchlorate” Disclaimer (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
  • Page 134 UPER ERVER 6018R-MD/MDR User's Manual Notes...
