- Screw the hose olives to the pump connector IN and
OUT with union nuts. Slide the hoses (NW 12) onto the
olives. The hoses must be secured with suitable clamps.
- Via a hose to the "Overflow" connector, overflowing
fluid can be directed into a suitable vessel. The ves-
sel should be positioned lower than the "Overflow"
connector.
In case of closed external system, if there is in any case
no risk of exceeding the maximum fluid level, you can
close the "Overflow" connector with the included
overflow cap. This minimizes the energy loss and pro-
tects, in case of long-term applications with low tem-
peratures and high humidity, against unwanted water
input and the associated volume increase.
Check fluid heat expansion!
- Connect the "Backflow" connector to IKA calorim-
eter with a suitable hose.
When IKA calorimeter is not connected, please close
the "Backflow" connector with included backflow cap.

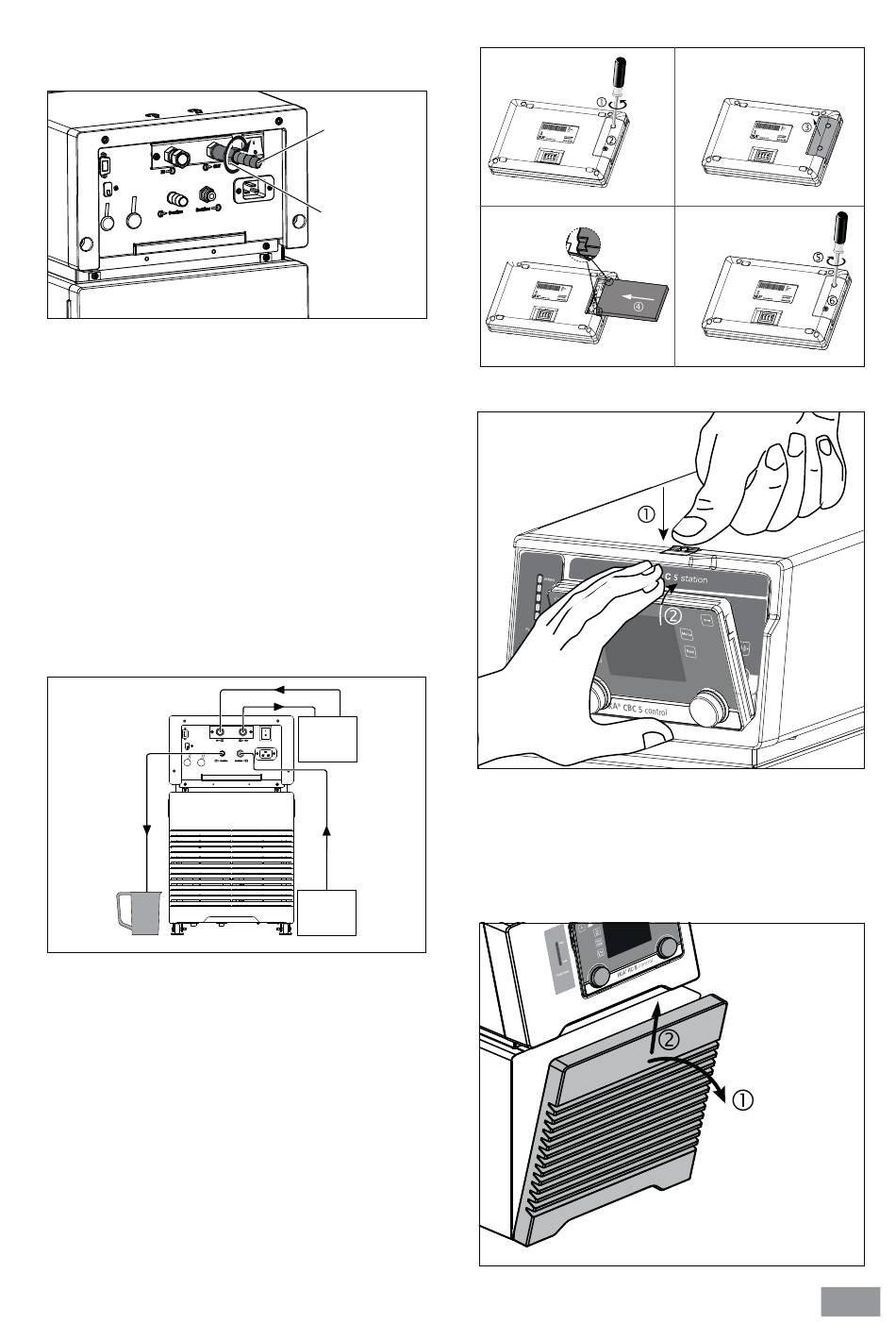

Fig. 6
Note: When the external system is not necessary, please
seal the pump connector IN and OUT with the existing
union nuts and stoppers.

• Inserting battery into the WiCo:

Olives
Union nut
Fig. 5

• Mounting the WiCo to the station:

External
system

• Filling and draining:

IKA ®
Calorimeter
Note: notch upward!
Fig. 7
Fig. 8
Note: If the WiCo need be permanently attached to the
station, we strictly recommend to fasten the unlocking
button with the integrated screw (turn counter clock wise).
- Before filling the fluid into the bath, open the venting
grid as indicated in following figure.
Fig. 9
