• station:

A

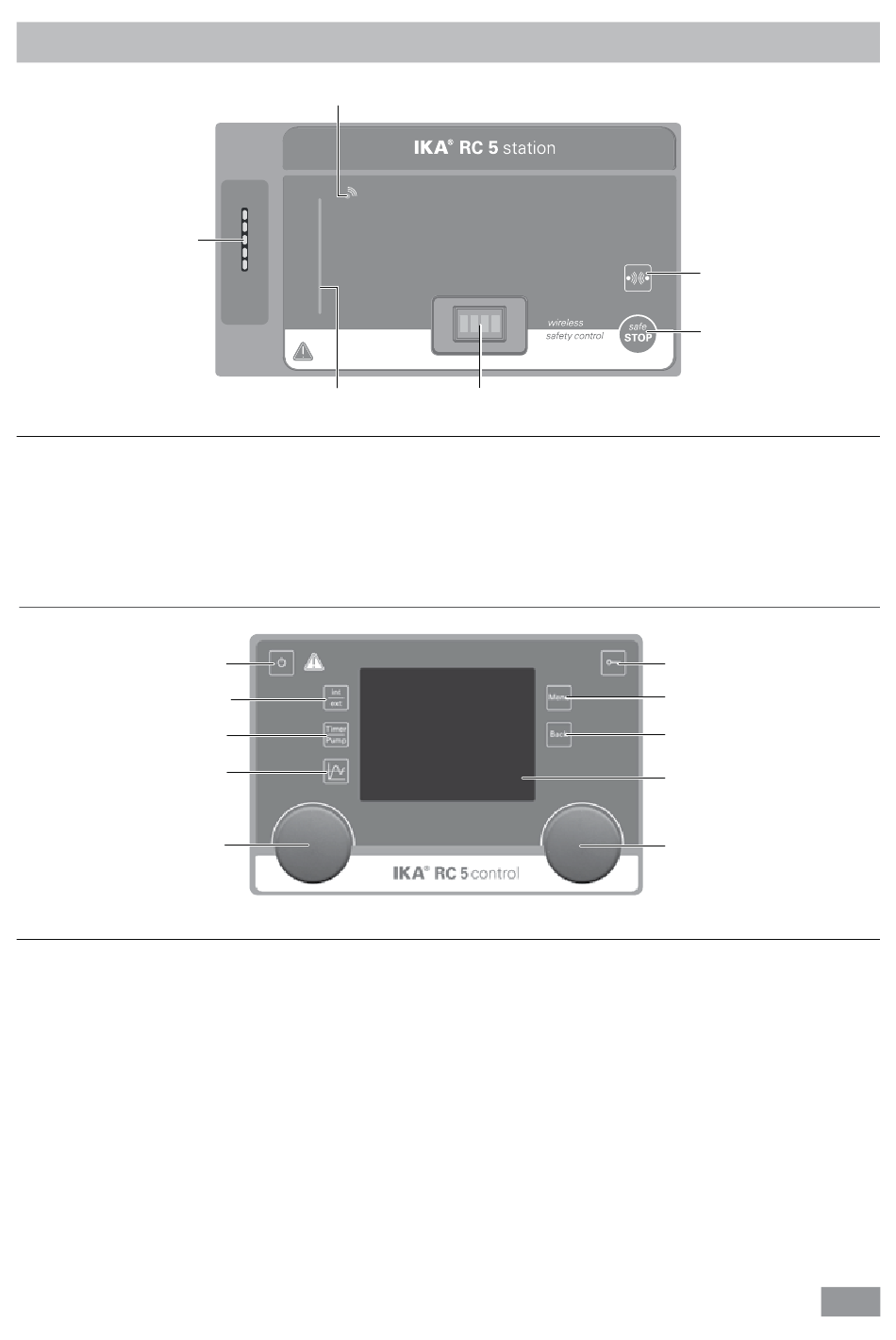

Fig. 16
Item Designation
A Fluid level indicator:
B LED bar:
C Contacts:
D safe STOP key:
® searching key: Search the WiCo when the Bluetooth
E Bluetooth
F Bluetooth ® LED:

• WiCo:

Fig. 17
Item Designation
L On/Off button:
M "int/ext" button:
N "Timer/Pump" button:
O Graph button:
P Rotating/pressing knob:
R Rotating/pressing knob:
S Display:
T "Back" button:
U "Menu" button:
V Lock button:

Operator panel and display

F
High
Low
Fluid level
B
Function
Indicate the bath fluid level (when the fluid level is too low or too high, the
bottom or the top LED segment change into red color).
Display different status of the circulator with different color.
Communicate and charge the WiCo.
Safely stop the working of the circulator in emergency.
Bluetooth ® indicator.
L
M
N
O
P
Function
Switch the WiCo on and off.
Switch between the internal and external temperature display and control.
Switch between the timer and pump display.
Display time/temperature graph.
Set the temperature value.
Start/Stop the cooling function.
Navigation, selecting and changing the settings in the menu.
Set the pump speed value.
Start/Stop the pump function.
Screen.
Return to the previous menu level.
Press it once: main menu is displayed.
Press it a second time: back to the working screen.
Lock/Unlock the knobs and buttons.
C
® is active.
E
D
V
U
T
S
R
