IKA RC 5 control Operating Instructions Manual page 25

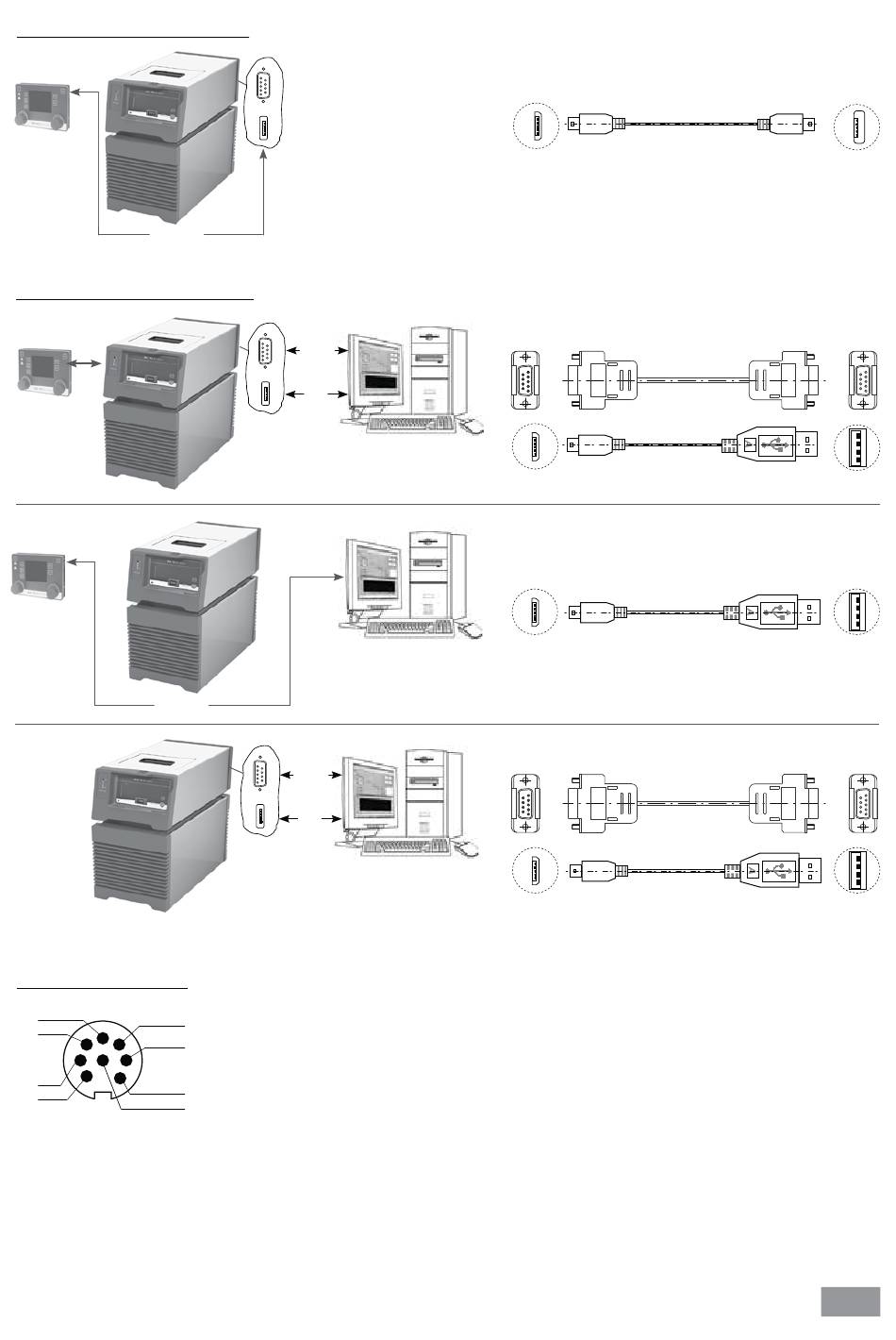

Connection WiCo to station:
USB micro B
USB cable
Fig. 31
Connection the device to PC:
USB micro B
USB cable
Fig. 32
Multifunction interface:
2
4
1
6
Fig. 33
USB micro A
RS 232
or
USB
USB micro B
USB A
USB A
RS 232
or
USB
USB micro B
USB A
1 M1 Output Valve + (+24Vdc/max. 0.8A)
5
2 M1 Output Valve -
3
3 M2 Output Alarm/Switch 1 (max. 30Vdc/ac/max. 1A)
4 M2 Output Alarm/Switch 2
5 M3 Input standby + (+5V ca. 10mA)
7
8
6 M3 Input standby - (0V only for Standby)
7 --- (reserved for later use, do not connect!)
8 --- (reserved for later use, do not connect!)
USB micro B
9-pin RS 232
USB micro B
USB micro B
9-pin RS 232
USB micro B
USB micro A
9-pin RS 232
USB A
USB A
9-pin RS 232
USB A
