• Unpacking:

- Please unpack the device carefully.
- Any damage should be notified immediately to the
shipping agent (post office, railway network or logis-
tics company).

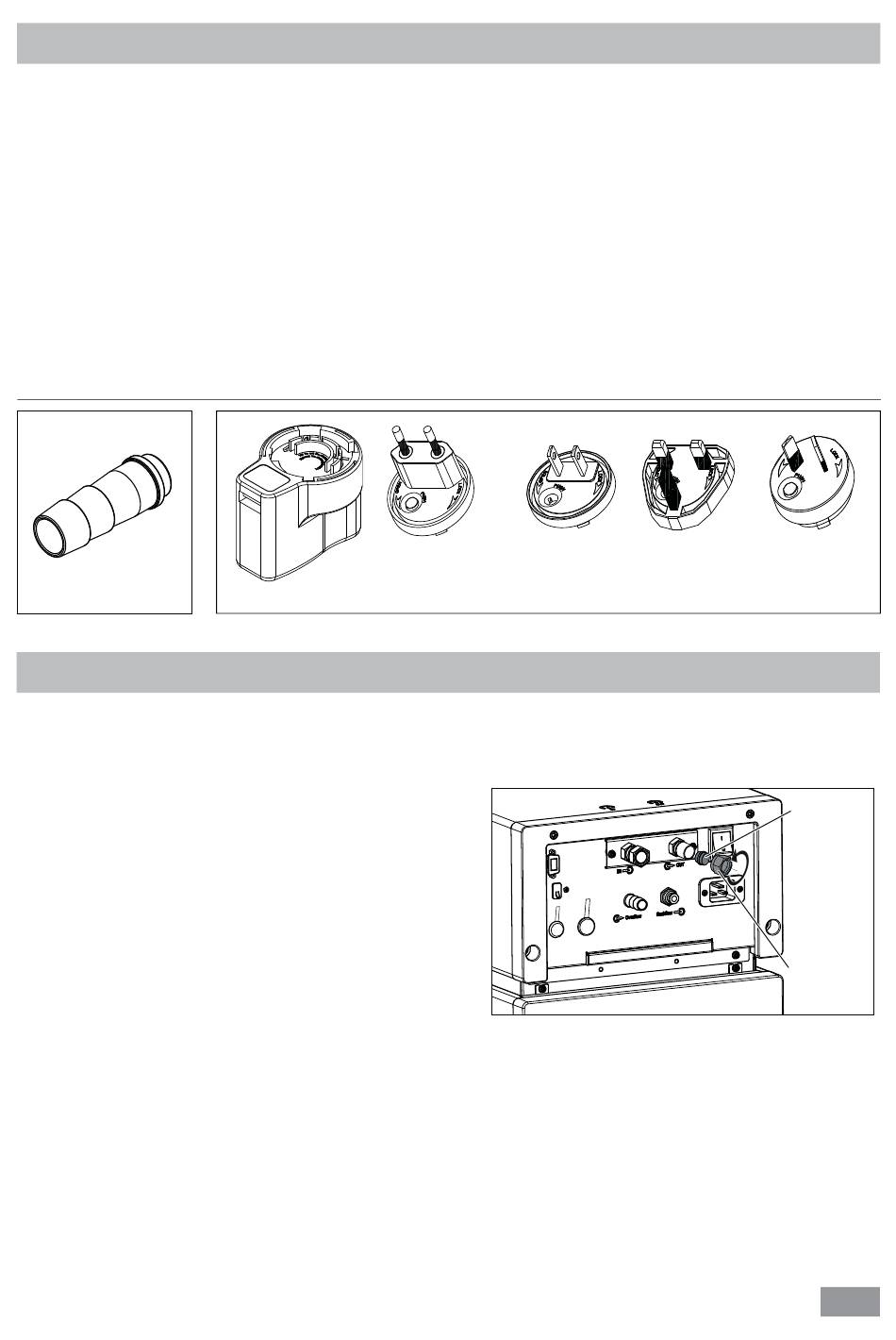

Fig. 2

• Setting up:

- Place the unit on an even, stable, clean, nonslip, dry
and fireproof surface.
- Keep at least 20 cm of open space on the front and
rear side.
- The place for installation should be large enough and
provide sufficient air ventilation to ensure the room
does not warm up excessively because of the heat
from device radiates to the environment.
- Do not set up the device in the immediate vicinity of
heat sources and do not expose to sun light.
- Cooling machine, pump motor and electronics pro-
duce intrinsic heat that is dissipated via the venting
grids! Never cover these venting grids!
Note: After setting up the device, wait at least one hour
before starting the operation to avoid the damage to the
cooling system.
Unpacking
Adapter
Europe, Switzerland
Fig. 3

Preparations

• Delivery scope:

- RC 5 control with WiCo
- Power cables
- Hose olive NW 8 (2 pieces)
- Hose olive NW 12 (2 pieces)
- WiCo holder WH 10
- OS 1.0 power supply
- Temperature sensor Pt 100.30
- USB 2.0 cable micro A – micro B
- USB 2.0 cabel A – micro B
- Plastic cap (for "Overflow" connector)
- Plastic cap (for "Backflow" connector)
- User guide
- Warranty card.
Adapter
USA, China

• Connecting the tubings:

- Unscrew the union nuts and stoppers using a wrench
(SW 19) from the pump connector IN (9) and OUT (10).
- Connect the hoses for circulating the external system
to the pump connection M 16 x 1 for IN and OUT
directly or with the olives.
see Fig. 2
see Fig. 2
see Fig. 3
(for WiCo)
Adapter Adapter
England Australia
Stopper
Union nut
Fig. 4
