Battery pack:
This symbol indicates the charging status of the RB 1 bat-
tery pack within the WiCo.
The charging symbol appears if the WiCo
- Is connected to a PC via a USB cable
- Is connected to a station via a USB cable
- Is connected to the power supply unit OS 1.0 via a USB
cable
- Is connected to the station via the charger contacts.
Refrigerating
This symbol indicates that the refrigerating function is active.
indicates active refrigerating process.
Fluid level:
This symbol indicates fluid level.
The red symbol means the fluid is above the maximum
fluid level. Excess fluid should be drained out.
The red symbol means the fluid is below the minimum
fluid level. Please add fluid.

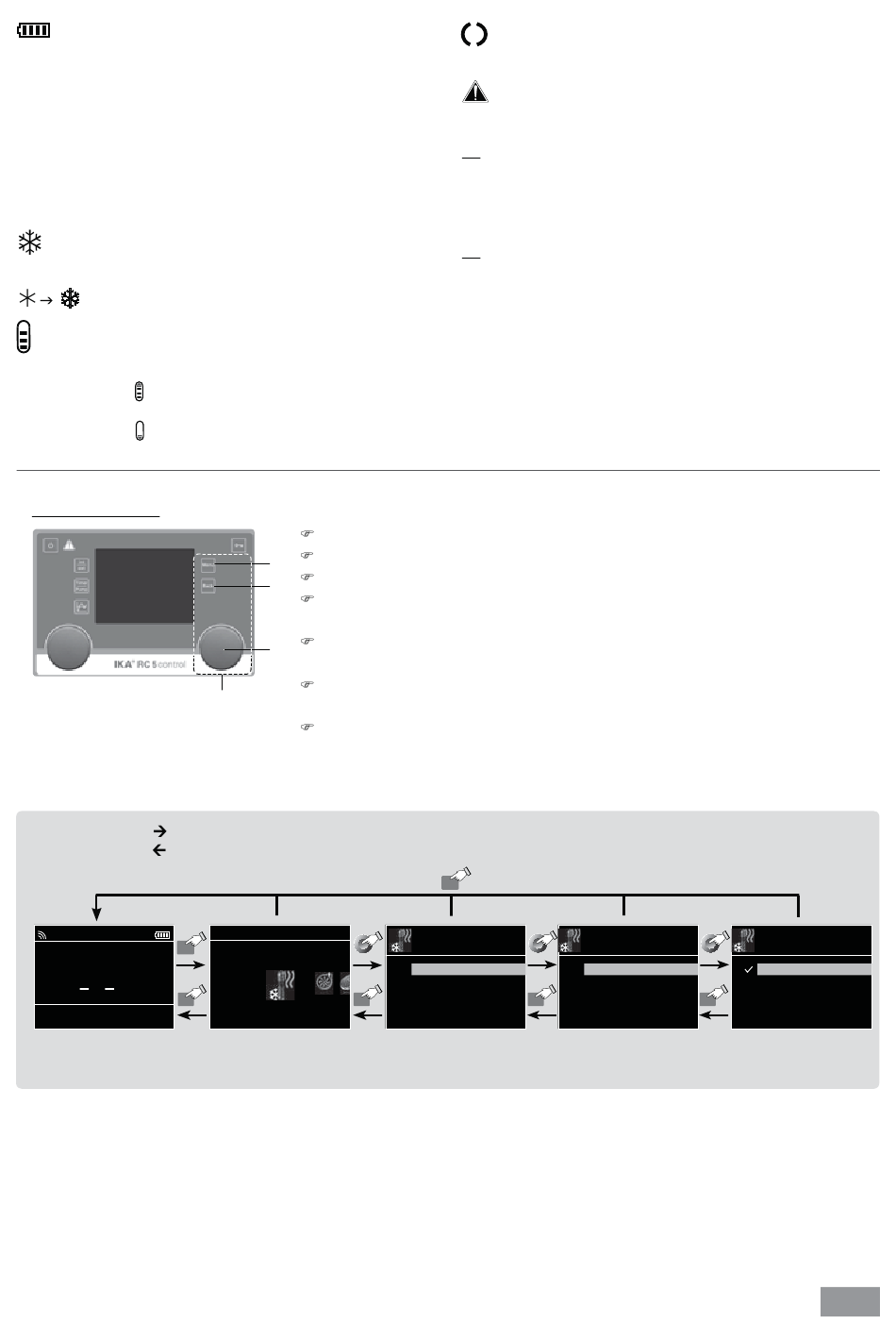

• Menu navigation and structure:

Menu navigation:
Fig. 23
Control elements for
menu navigation
Note: When the tempering or pump functions are active, the menu is locked. On the display, the active menu option is
highlighted in yellow. The active status of a menu item is marked with a check (√).
Menu navigation: Press the "Menu" button (U) and rotate rotating/pressing knob (R).
Press the "Back" button (T) or the "Menu" button (U).
A
Menu
0.00
int °C
ext °C
Back
int 5.00 1000
set °C Pump rpm
Note: If you press the "Menu" button (U), the system skips directly back to the working screen.
If you press the "Back" button (T), the system skips back to the previous screen.
Fig. 24
Press the "Menu" button (U).
Select the menu by turning the right rotating/pressing knob (R) to the right or left.
U
Open the menu item by pressing the right rotating/pressing knob (R).
T
Turn the rotating/pressing knob (R) to select the desired menu option and edit
the values or settings.
Press the rotating/pressing knob (R) to get into sub menu items to active/inactive
R
to switch settings or to confirm settings ("OK").
Press the "Back" button (T) to a setting or cancel to return to the previous
menu.
Press the "Menu" button (U) to return directly to the working screen.
MENU
Back
TEMPERING
Pump:
This symbol indicates that the pump is activated.
Warning:
This symbol indicates that warning is active.
PC
PC Control:
This symbol means that either the station or the WiCo
is connected to a computer and is being controlled from
the computer.
PR
Program Control:
This symbol indicates that the WiCo is controlled by a pro-
gram (see "PROGRAMS").
Menu
Tempering
Control
Limits
Temperature Sensor
Back
> Tempering
Control
Control Mode
Control Parameters
Fluids
Back
> Tempering > Control
Control Mode
Internal (int)
External (ext)
