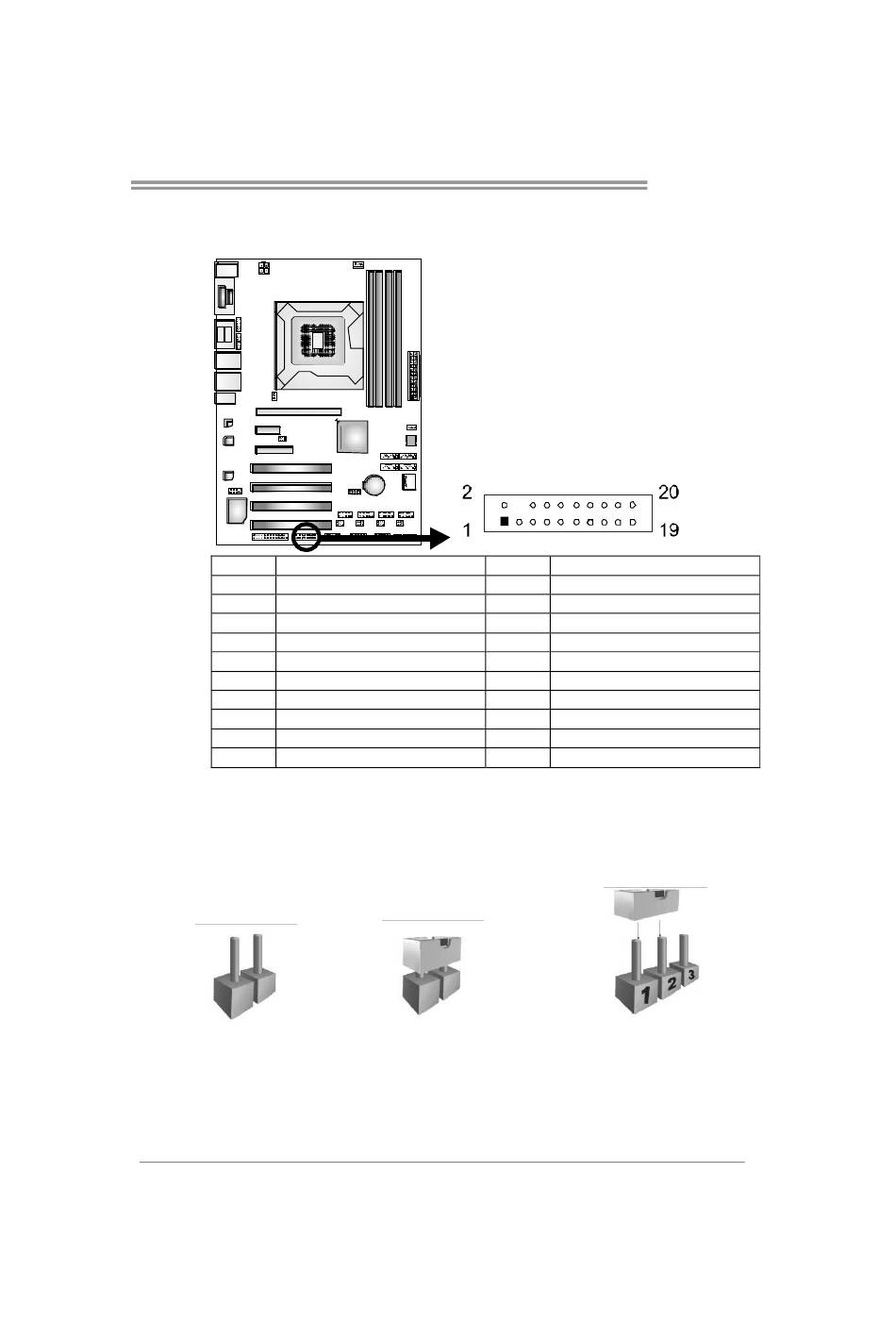

TPM1: Trusted Platform Module Header
This header allows you to store cryptographic keys that protect information
Pin Assignment
1 CLK_PCI_TPM
3 LFRAME#
5 PL_RST2#
7 FWH3
9 VCC3_3
11 FWH0
13 SMBCLK
15 AUX33
17 Ground
19 SUS_STAT#
*How to Setup Jumpers
The illustration shows how to set up jumpers. When the jumper cap is placed on
pins, the jumper is "close", if not, that means the jumper is "open".
Pin opened
Pin Assignment
2 Ground
4 Key
6 VCC5
8 FWH2
10 FWH1
12 Ground
14 SMBDATA
16 SERIRQ
18 CLK_RUN#
20 LDRQJ1
Pin closed Pin1-2 closed
21
