2.5 O
NBOARD

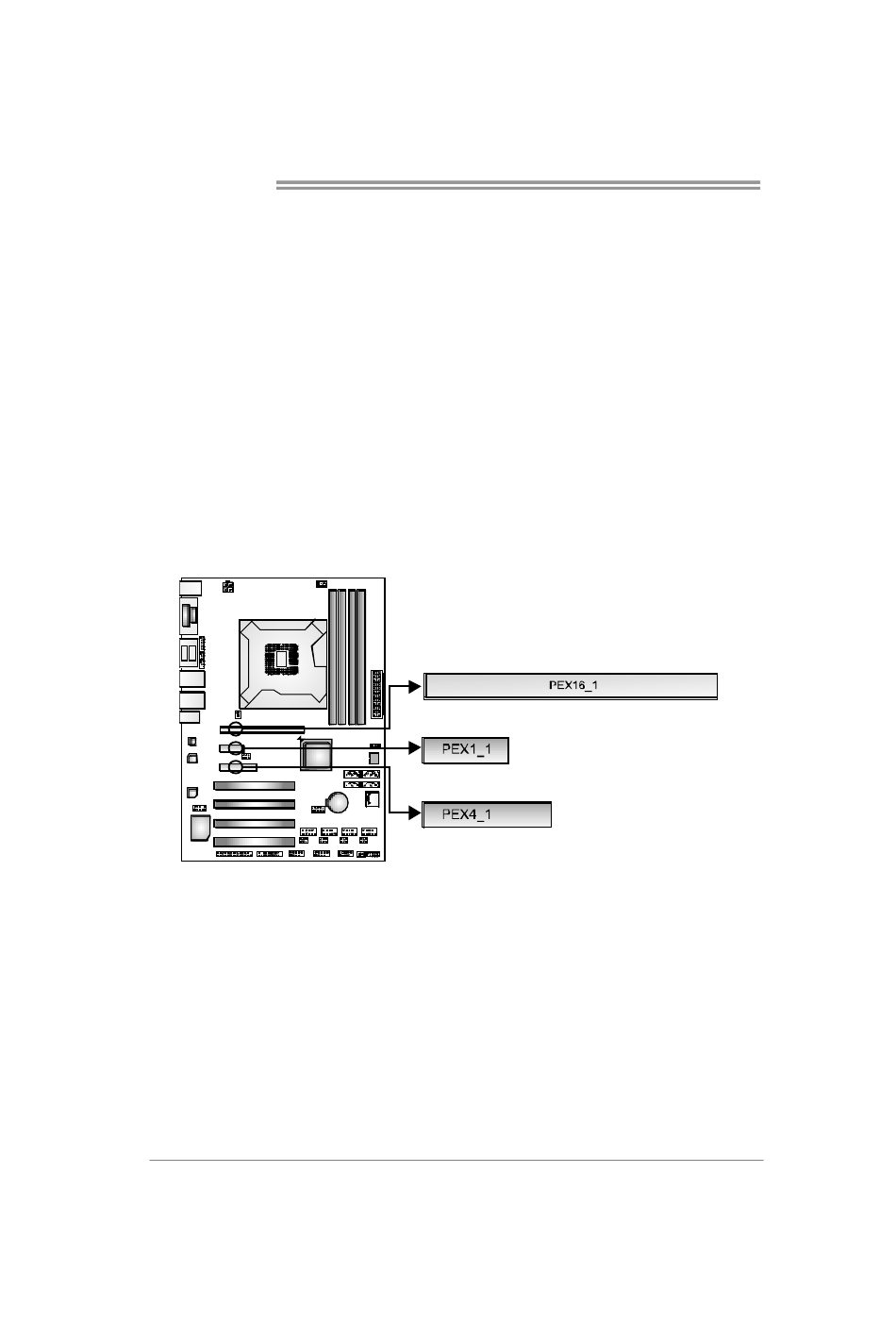

PEX16_1: PCI-Express x16 Slot
- PCI-Express 3.0 compliant.
Maximum theoretical realized bandwidth of 16GB/s simultaneously per
-
direction, for an aggregate of 32GB/s totally.
- PCI-Express Gen3 is supported by Core i7-3xxx / i5-3xxx CPUs.
PEX1_1: PCI-Express x1 Slot
- PCI-Express 2.0 compliant.
- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.
PEX4_1: PCI-Express x4 Slot
- PCI-Express 2.0 compliant.
- Data transfer bandwidth up to 2GB/s per direction; 4GB/s in total.
