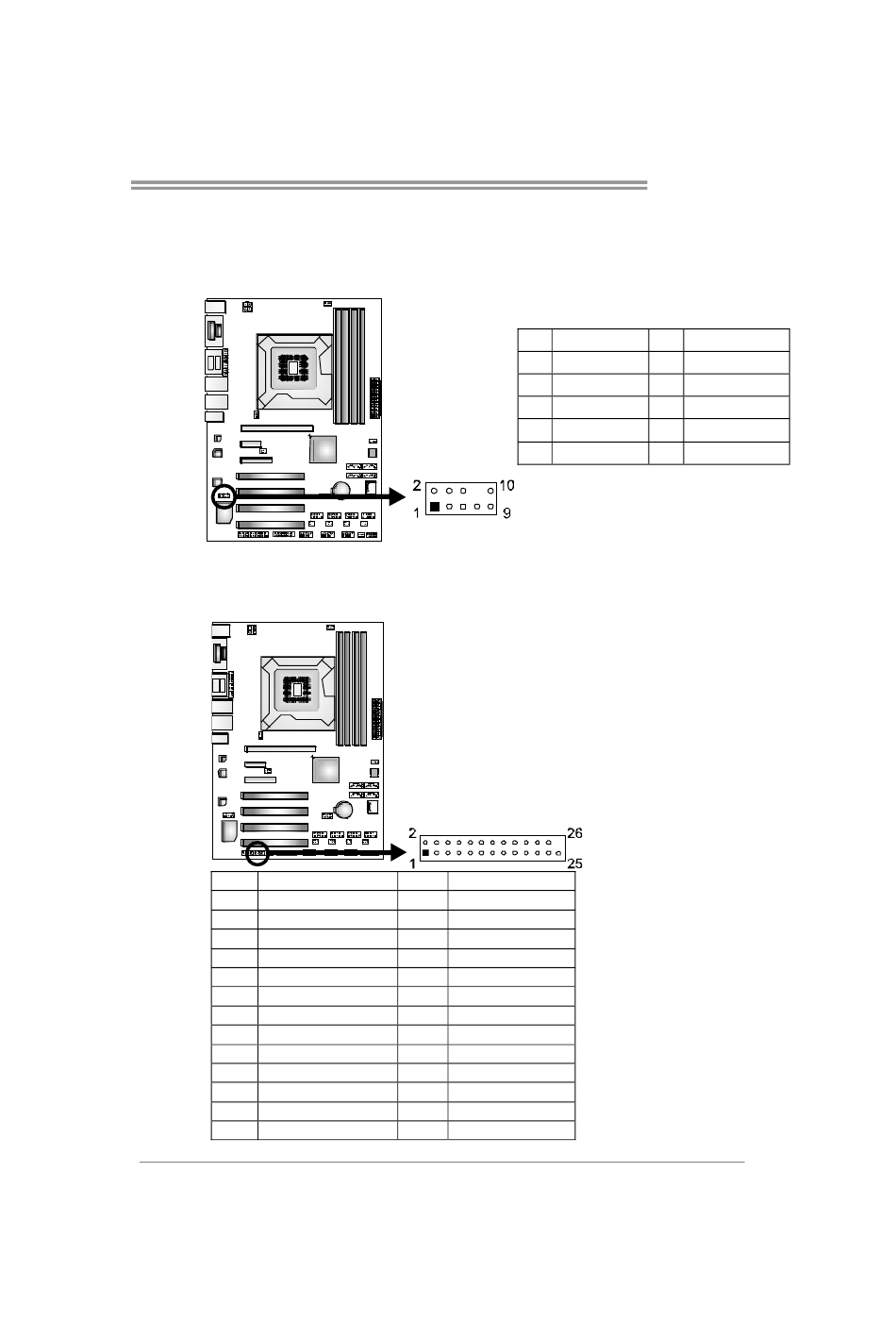

F_AUDIO1: Front Panel Audio Header
This is an interface for the front panel audio cable that allows convenient
connection and control of audio devices. This header allows only HD audio front
panel connector; AC'97 connector is not acceptable..
JPRNT1: Printer Port Connector
This header allows you to connect printer port on the PC.
Pin Assignment
1 -Strobe
3 Data 0
5 Data 1
7 Data 2
9 Data 3
11 Data 4
13 Data 5
15 Data 6
17 Data 7
19 -ACK
21 Busy
23 PE
25 SCLT
Pin Assignment Pin
1 Mic Left in
3 Mic Right in
5 Right line out
7 Front Sense
9 Left line out
Pin Assignment
2 -ALF
4 -Error
6 -Init
8 -Scltin
10 Ground
12 Ground
14 Ground
16 Ground
18 Ground
20 Ground
22 Ground
24 Ground
26 Key
Assignment
2 Ground
4 Present Sense
6 GND_AUD
8 Key
10 GND_AUD
