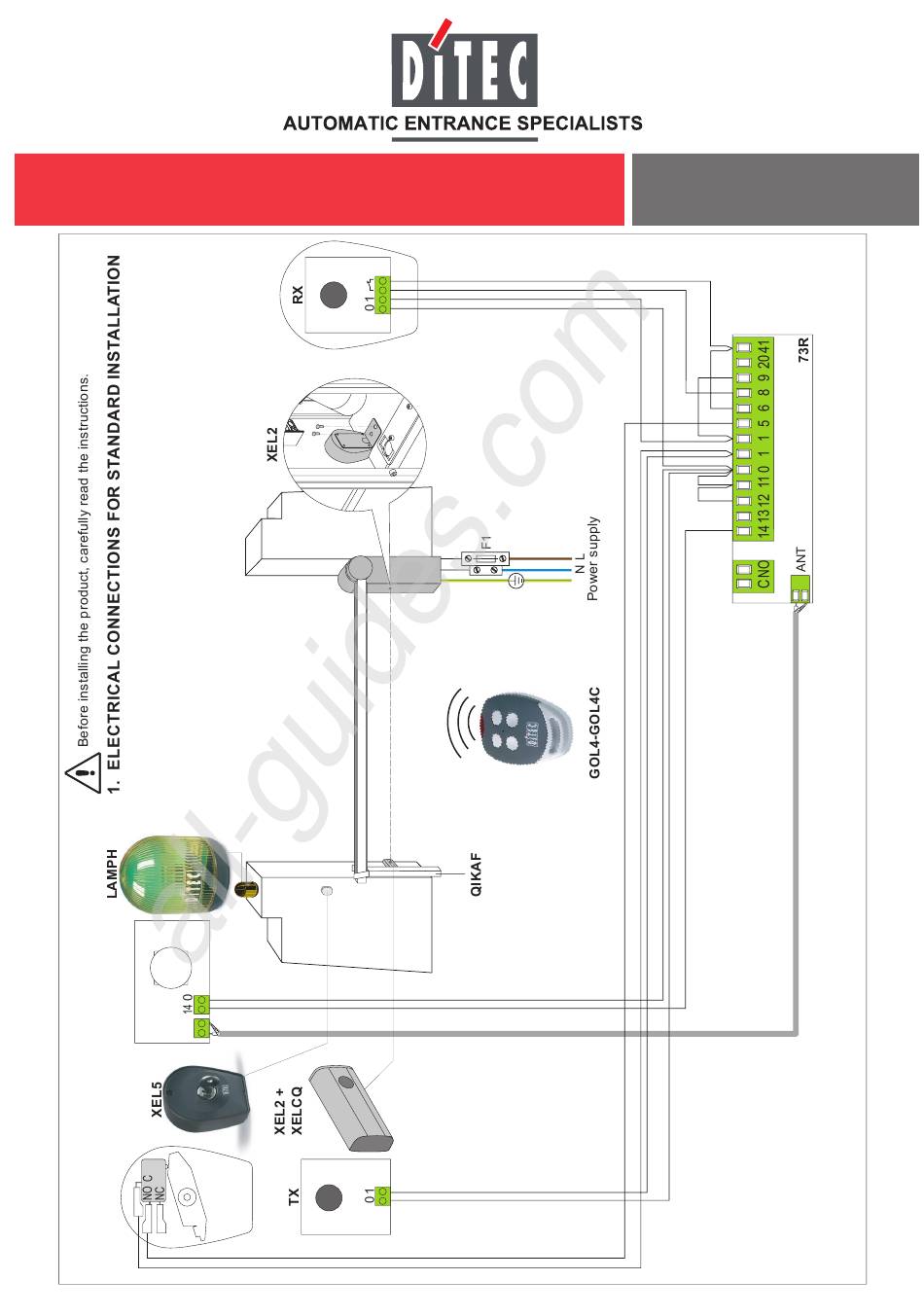

- Page 1 All manuals and user guides at all-guides.com QIK7EH - 73R IP2007 QUICK REFERENCE rev. 2008-08-04 4x0,5 mm² 3x1,5 mm² 2x1,5 mm² RG58 (max 10 m) 4x0,5 mm² 4x0,5 mm²...
- Page 2 All manuals and user guides at all-guides.com 2. 73R STANDARD SETTING DIP2 = ON LEFT OPENING DIP1 = ON OPENING RADIO MODE 1 2 3 4 5 DIP1 = OFF STEP BY STEP RADIO MODE DIP2 = OFF VA VC TC R1 RIGHT OPENING C NO 14 13 12 11...
- Page 3 For different setting and further information consult the QIK7EH automation instruction manual, the 73R control panel instruction manual and BIXLR22 radio instruction manual. DITEC S.p.A. Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com QIK7EH - 73R QUICK REFERENCE - IP2007...
