NetComm NTC-220 Series Connecting Manual

Connecting wireless router to an eaton network card
Hide thumbs Also See for NTC-220 Series:

Advertisement

Quick Links

Download this manual
C C o o n n n n e e c c t t i i n n g g a a N N e e t t C C o o m m m m W W i i r r e e l l e e s s s s R R o o u u t t e e r r t t o o a a n n E E a a t t o o n n N N e e t t w w o o r r k k C C a a r r d d
I I n n t t r r o o d d u u c c t t i i o o n n
This document provides instructions for connecting a NetComm Wireless NTC-220 or NTC-140W Series
wireless router to one of the following Eaton connectivity cards:
•

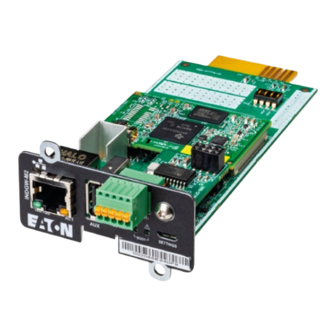

Industrial Gateway Card (INDGW-M2)
•
Gigabit Industrial Gateway X2 Card (INDGW-X2)
•
Power Xpert Gateway UPS (PXGX-UPS)
•
Power Xpert Gateway Minislot UPS (PXGMS)
•
Gigabit Network (Network-M2)
P P r r e e r r e e q q u u i i s s i i t t e e s s
•
Eaton UPS with a INDGW-M2, INDGW-X2, PXGX-UPS, PXGMS, or Network-M2 card
•
USB-to-USB (Type B) cable for PXGX-UPS
•
USB-to-USB (MiniTypeB) for PXGMS
•
USB-to-USB (MicroUSB B) for INDGW-M2, INDGW-X2, or Network-M2
•
Serial COM port or USB-to-serial 9-pin male adapter
•
An existing PredictPulse account (refer to the
•
Download the latest card firmware and RNDIS driver from the Eaton product site:
–
–
Go to the Resources page and scroll down to the Software, firmware, and applications section. Click
the links to download the firmware and RNDIS driver files.
N N e e t t C C o o m m m m W W i i r r e e l l e e s s s s R R o o u u t t e e r r I I n n s s t t a a l l l l a a t t i i o o n n G G u u i i d d e e l l i i n n e e s s
Refer to the Quick Start Guide provided with the NetComm Wireless router for instructions on mounting the
router and connecting power.
NOTE
The Network-M2 card has now reached end-of-life (EOL) status.
For the INDGW-M2 card, go to
https://www.eaton.com/us/en-us/catalog/backup-power-ups-surge-it-power-distribution/eaton-
industrial-gateway-card.resources.html
For the INDGW-X2 card, go to
https://www.eaton.com/us/en-us/catalog/backup-power-ups-surge-it-power-distribution/eaton-gigabit-
industrial-gateway-card.html.
NOTE
The Netcomm Wireless router must be powered by a 120V electrical outlet powered by
the UPS. This ensures that the router is protected during a power outage. If no UPS-
protected outlet is available, a Universal Accessory Power (UAP) kit is required. The UAP
must be installed by an Eaton technician. Contact your Eaton service representative for a
quote.
NOTE
The router must be powered by a 120V electrical outlet powered by the UPS. This
ensures that the router is protected during a power outage. If no UPS-protected outlet is
available, a Universal Accessory Power (UAP) kit is required. The UAP must be installed
by an Eaton technician. Contact your Eaton service representative for a quote.
Connecting a NetComm Wireless Router to an Eaton Network Card
PredictPulse Quick Start
Guide)
P-164000722—Rev 11
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NTC-220 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NetComm NTC-220 Series

Summary of Contents for NetComm NTC-220 Series

  • Page 1 N N e e t t C C o o m m m m W W i i r r e e l l e e s s s s R R o o u u t t e e r r I I n n s s t t a a l l l l a a t t i i o o n n G G u u i i d d e e l l i i n n e e s s Refer to the Quick Start Guide provided with the NetComm Wireless router for instructions on mounting the router and connecting power.
  • Page 2 UPS Data Connector Network RESTART Speed LED Button ON LED Warning LED Log in using the username admin and password admin. You are prompted to change your password. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 3 The Version column shows the firmware version of the card. To check the latest firmware for the network card: • For an INDGW-M2 card, go to https://www.eaton.com/us/en-us/catalog/backup-power-ups-surge-it-power-distribution/eaton- industrial-gateway-card.html Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 4 TER (termination) in the 1 position. For a multiple-EMP application, at least one switch must be set on each EMP in in the daisy-chain and the TER switch set on the last EMP in the daisy-chain. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 5 EMP sensor(s). When discovered, the EMP is displayed as shown in Figure • If no device is found, verify the EMP connections and settings and click Discover again. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 6 Settings on the left sidebar menu. Click the Network & Protocol tab (see Figure 8). Verify the IPv4 Mode is set to DHCP and record the IP address to be used later when configuring the PredictPulse Wizard. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 7 Enter 192.168.1.1 in the NTP server field. For instructions on configuring NTP in the modem, see the Configuring a PXGX-UPS or PXGMS Card section. Also enter the Location, Contact, and System Name. Click Save. Proceed to the Run the PredictPulse Wizard section. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 8 If installing on an existing PXGX-UPS or PXGMS card, reset the card to factory default settings as follows: • Locate the onboard DIP switch and set switch 6 to ON Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 9 On the E-mail tab, click Configure to display the E-mail Event Trigger Configuration page (see Figure 14). Verify that all or some alarms are checked. Scroll to the bottom of the page and click Apply after making any changes. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 10 Click Apply after making any changes. Figure 15. Date/Time Tab Login to the modem graphical user interface (GUI) by connecting to the modem Wi-Fi, NetComm XXXX, using the network key printed on the back of the modem. Once connected, open an internet browser: •...
  • Page 11 17, with 151.110.127.39 listed for NTP service. Click Save if any changes were made. Figure 17. NetComm Wireless Services Tab Proceed to the Run the PredictPulse Wizard section. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 12 You are prompted to change your password. Enter the new password Eaton123!, re-enter the new password, and press Submit. Entering a password other than Eaton123! will cause the PredictPulse activation to fail. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 13 21). In the SMTP SETTINGS section: • Enter mail.eaton.com in the Server IP/Hostname field • To ensure that e-mails are not marked as spam, enter ups.networkcard@eaton.com in the Default sender address field Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 14 Upstream port on the PXGX-UPS or Ethernet port on the PXGMS or Network-M2 to any open port other than 1 on the Power Xpert Ethernet Switch. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 15 23). Figure 23. PredictPulse Wizard Initial Display Enter the Organization Code and customer E-Mail Address and click Begin Registration. The PredictPulse Device Activation window displays (see Figure 24). Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 16 26). Scroll down to the Dynamic DHCP client list (see Figure 27) to find the connected devices. The web card IP will have an asterisk as the Computer name. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 17 OK. Figure 28. PredictPulse Wizard Card Configuration Error The PredictPulse wizard activates each card. Upon completion, the wizard displays a confirmation message (see Figure 29). Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 18 PredictPulse activation wizard run from modem connection • Call placed to the Brightlayer Data Center at 800-356-5737, option 2, option 2 to confirm portal activation and communication receipt Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...

  • Page 19: Troubleshooting

    If the signal is weak, an external antenna may be required. The external antenna replaces the 3G antennas provided with the router. Once connected, position the external antenna to maximize the signal strength. Figure 30. NetComm Wireless Status Page Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 20 Although not required, Eaton recommends enabling the remote reboot function of your router to assist Eaton specialists in remotely troubleshooting. To do so, navigate to the router’s Services page (see Figure 33). Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 21 Figure 33. NetComm Wireless Services Page Scroll down and click SMS Messaging. From the SMS Messaging drop-down menu, select Diagnostics (see Figure 34). Figure 34. NetComm Wireless SMS Messaging Drop-Down Menu Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...

  • Page 22: Additional Information And Support

    A A d d d d i i t t i i o o n n a a l l I I n n f f o o r r m m a a t t i i o o n n a a n n d d S S u u p p p p o o r r t t For additional information about PredictPulse, visit Eaton.com/PredictPulse. For specific questions, call the Brightlayer Data Center at 800-356-5737, option 2, option 2. Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 23 Additional Information and Support Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11...
  • Page 24 P-16400072211 P-164000722 11...
