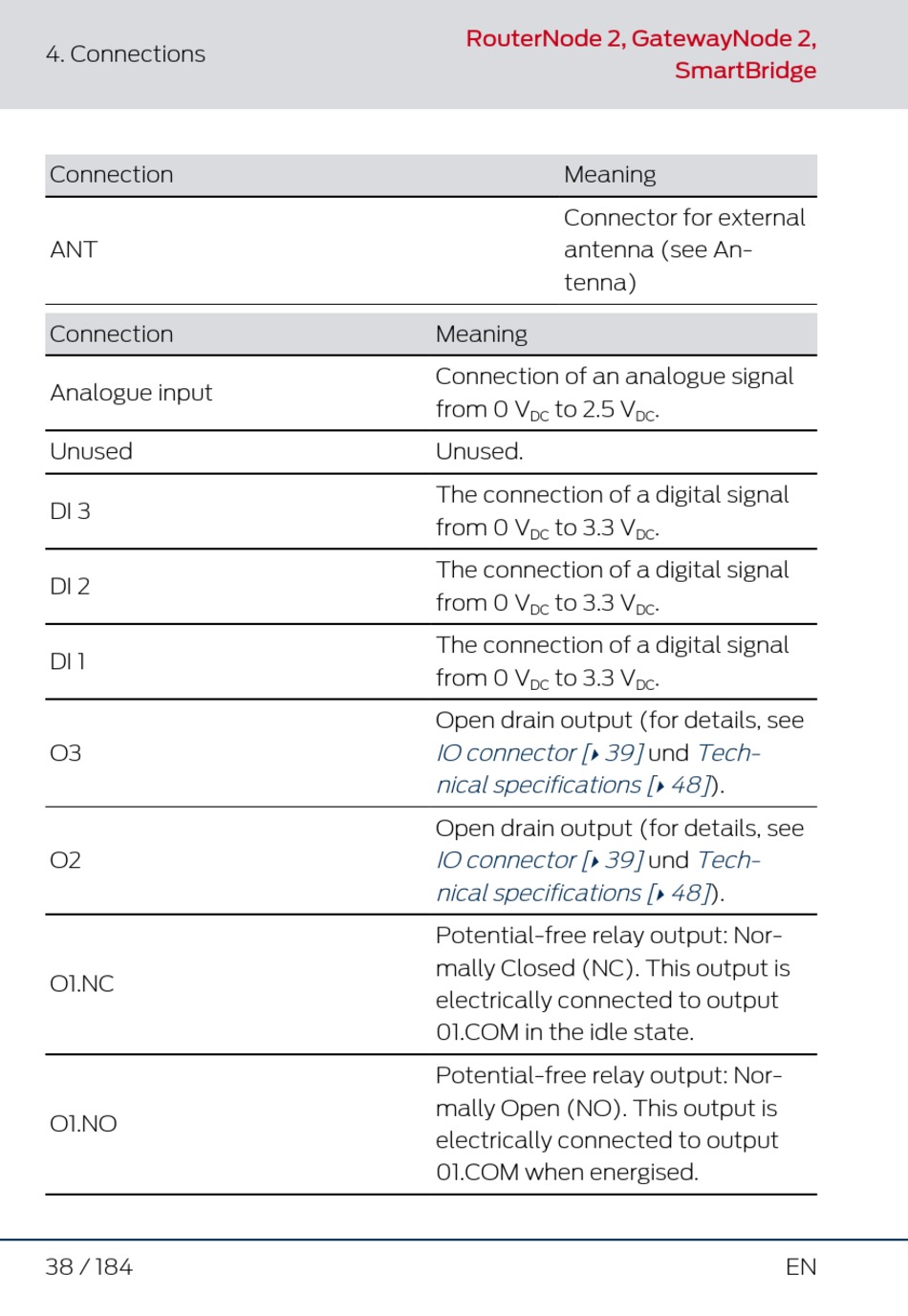

4. Connections
Connection
ANT
Connection
Analogue input
Unused
DI 3
DI 2
DI 1
O3
O2
O1.NC
O1.NO
38 / 184
RouterNode 2, GatewayNode 2,
Meaning
Connector for external
antenna (see An-
tenna)
Meaning
Connection of an analogue signal
from 0 V to 2.5 V
DC
Unused.
The connection of a digital signal
from 0 V to 3.3 V
DC
The connection of a digital signal
from 0 V to 3.3 V
DC
The connection of a digital signal
from 0 V to 3.3 V
DC
Open drain output (for details, see
IO connector [ 39]
}
nical specifications [
Open drain output (for details, see
IO connector [ 39]
}
nical specifications [
Potential-free relay output: Nor-
mally Closed (NC). This output is
electrically connected to output
01.COM in the idle state.
Potential-free relay output: Nor-
mally Open (NO). This output is
electrically connected to output
01.COM when energised.
SmartBridge
.
DC
.
DC
.
DC
.
DC
Tech-
und
48]
).
}
Tech-
und
48] ).
}
