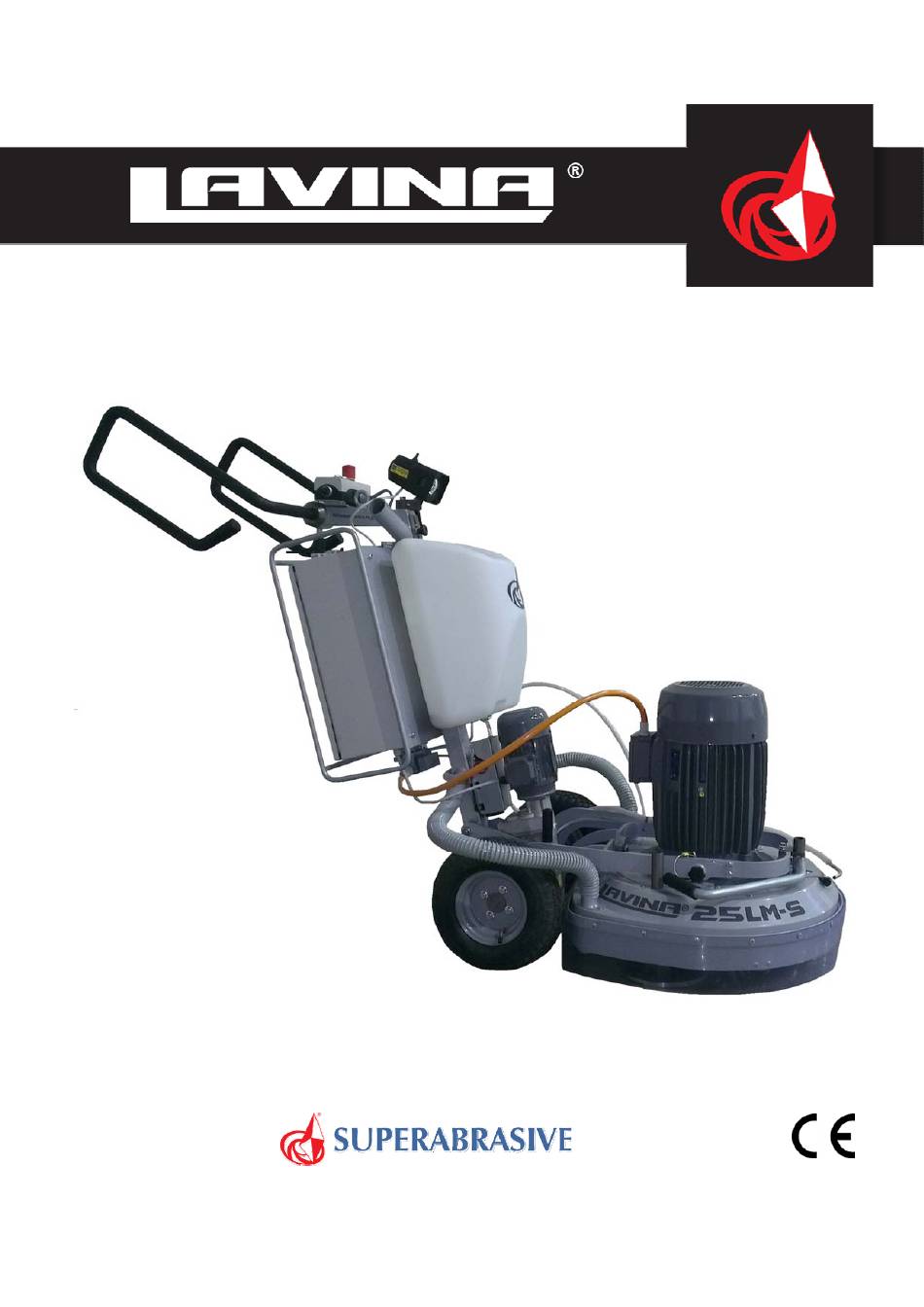

- Page 1 Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 LAVINA L25LM-S-E User Manual ® www.superabrasive.com / factory@superabrasive.com ...
-
Page 2: Table Of Contents
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 Carriage Exploded View (Fig.7.8) 12 1. GENERAL INFORMATION Tool Holder Exploded View (Fig.7.9) 12 Manufacturer 3 General Description 3 8. MAINTENANCE AND INSPECTION Machine Characteristics 3 Main Design 3 Cleaning ... -
Page 3: General Information
The machine is driven by no maintenance Helical‐bevel gearbox, assembled with 300W motor with individual frequency control. ENVIRONMENTAL CONDITIONS The temperature range for operating the Lavina®25LM‐S‐E machine outdoors is between 41°F and 86°F or 5°C and 30°C. Never use the Lavina®25LM‐S‐E machine during rain or snow when working outdoors. When working indoors, always operate the machine in well‐ventilated areas. Figure 1.3 3 ... -
Page 4: Electrical Connection
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 ELECTRICAL CONNECTION The voltage (Volt) and power (Ampere) are displayed on a label on the electrical control box to avoid any incorrect connection. Refer to these before connecting the power.To avoid electrical shocks, make sure the ground power supply is functioning properly. VACUUM CONNECTION A connection on a vacuum dust extractor is located on the carriage. The Lavina®25LM‐S‐E machine does not include a vacuum dust extractor. The customer must purchase the vacuum dust extractor separately. The hose of the vacuum extractor must be Ø 50 mm and can be glided over the pipe. The vacuum dust extractor must be adapted for floor grinders and have a minimum air displacement of 320m3/h with a negative vacuum of 21 kPa. TECHNICAL DATA CE‐CERTIFICATION Lavina® 25LM‐S‐E ® The Lavina 25LM‐S‐E machine is designed to ... -
Page 5: Preparation For Work
Before filling the water tank with water make sure that the the machine. The machine is in upright working position. The machine is not working and the main switch is turned off. protection devices are working properly. The electrical cable is Before turning on the machine make sure that the base is free to move and follow the machine easily. In order to keep the Placed on the floor, the machine MUST NOT be in an upright electrical cable from being damaged, no vehicle should cross the position when turned on! zone where electrical cables are situated. OPERATING MACHINE PROTECTION DEVICES When operating the Lavina®25LM‐S‐E , make certain that there The machine is equipped with several protection devices is no including the following: one, but you around the machine. An emergency stop button Never leave the machine unattended while working. A protection skirt and a hood for protecting the tool The electrical cable must move freely and must be damage‐ plates. free. These devices protect the operator and/or other persons from The water hose must move freely and must be damage‐free. potential injuries. Do not remove them. On contrary, before Check if the floor, you will work on, is not too uneven. If this is using the machine, please ensure that all protective devices are the mounted and function properly. The security plate prevents the case, it may cause damage to the machine. ... -
Page 6: Handling And Transportation
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 3. HANDLING AND TRANSPORTATION PREPARING THE MACHINE FOR TRANSPORTATION Unplug the motor cable plug from the control box and disconnect the water hose from the main head by pulling it out (Fi g.3.1) (Fi g.3.2). Wind the electrical cable on the carriage. Release the pin sets, which attach the head to the carriage. Pull out the hoses (Fig.3.3), and dismount the head from the carriage. Figure 3.1 Figure 3.2 Figure 3.3 The head of the LAVINA®25LM‐S‐E machine has one bar and support handles intended for easy moving and transportation. LIFT THE MACHINE FROM WORKING TO TOOL MOUNTING POSITION Pus h the front handle down and swivel it to the front ( Fi g.3.4). Pull the handle up and ensure the head is stable in the upright position, for Mounting/dismounting the tool. Ensure that the water tank is empty before flipping the machine. Pull the head to upright position (Fig.3.5). The machines manufactured after Jan.1 2014 are with changed locking of the front handle as shown on the fig.3.4.1. Figure 3.5 Figure 3.4... -
Page 7: Operation
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 4. OPERATION PRELIMINARY CONTROLS Inspect the working area as explained in the safety instructions. For wet use, fill in the water tank when the electrical cable is disconnected. Connect the vacuum extractor and ensure that the vacuum hose is clear and it will follow the machine easily. Plug in the machine and make sure that the power cord is free to follow the working direction of the Lavina®25LM‐S‐E machine. WATER FLOW CONTROL UNIT The operator can choose the water sprayer in the front when the tap is in the horizontal position (Fig.4.1), the water will spray under the cover of the machine when the level is in the vertical position (Fig.4.2).The flow regulating valve located on the tank (Fig.4.2.1) is increasing or reducing the water flow to the working area – in front of the machine or under the main head cover of the machine/only for machines produced afterJan.1 2014/. Figure 4.2 Figure 4.2.1... -
Page 8: Control Board
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 THE CONTROL BOARD 1. Power cable plug 2. Digital RPM indicator Indicates the revolution per minute of the grinding plates (not the revolution per minute of the entire unit). 3. Electrical box 4. Lamp cable gland 5. Inverter alarm led Light blue when the inverter goes into alarm mode. 6. Water pump switch Lights orange when the water pump is working. 7. Power led lights green when the power is on 8. Forward/Reverse switch choose forward for clockwise rotation of the grinding plates or reverse for counter clockwise rotation of the grinding plates 9. Potentiometer changes the RPM of the grinding plates from 300‐1100 rpm 10. Reset button resets the alarm of the inverter 11. OFF button stops the motor Figure 4.6 12. ON button starts the motor ... -
Page 9: Tools And Accessories
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 5. TOOLS AND ACCESSORIES WEIGHTS Superabrasive offers additional weights for increasing the productivity of the machine (Fig.5.1). Each additional weight weighs about 64lbs or 29kg. Each individual application, type and condition of surface, power capacity of the outlet, etc. will determine the number of weights you can use without tripping a breaker. The additional weights depend on the tools; it is not always possible to add weights. Some tools work too aggressively and the machine can stop. The weight can be ordered with item number A08.00.00.00 Figure 5.1 Figure 5.2 TOOL HOLDER KEY The tool holder key (Fig.5.3) is used for adjusting, mounting and dismounting of the foam plates. Always use the key for mounting. Item number is A03.00.00.00 Figure 5.3 ... -
Page 10: Popular Tools
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 6. POPULAR TOOLS RECOMMENDED TOOLS QuickChange System and Tooling feature extremely fast and convenient tool changes, and a long tool life, providing for great long‐term cost savings. The QuickChange pads are produced in four different bonds for super hard, hard, medium and soft concrete, in a variety of grit sizes. They are offered with 1 or 2 buttons or rectangular segments, which allows you to customize the aggressiveness of the cut. Calibra grinding discs: our popular ceramic bond discs are designed for the removal of difficult scratches and they save you valuable time by eliminating the need for multiple passes with metal tools. They can be used wet or dry, and are best for hard concrete applications. They are 3‐inch, with included Velcro back attachment. ® NATO polishing discs feature a special resin formula designed for both wet and dry applications and a unique design with wide channels allowing for work on a cleaner surface and ensuring a quality polish. Available in 3 and 4 in sizes. They are with included Velcro attachment. ... -
Page 11: Exploded View
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 7. EXPLODED VIEW LAVINA® 25LM‐S‐E GENERAL EXPLODED VIEW (FIG.7.1) LAVINA® 25LM‐S‐E TOP COVER EXPLODED VIEW 1 (FIG.7.2) LAVINA® 25LM‐S‐E PLANETARY DRIVE EXPLODED VIEW (FIG.7.3) LAVINA® 25LM‐S‐E TOP COVER EXPLODED VIEW 2 (FIG.7.4) ... -
Page 12: Bottom Cover Exploded View 1 (Fig.7.5)
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 LAVINA® 25LM‐S‐E BOTTOM COVER EXPLODED VIEW 1 (FIG.7.5) LAVINA® 25LM‐S‐E BOTTOM COVER EXPLODED VIEW 2 (FIG.7.6) LAVINA® 25LM‐S‐E PULLEY UNITS EXPLODED VIEW (FIG.7.7) LAVINA® 25LM‐S‐E CARRIAGE EXPLODED VIEW (FIG.7.8) LAVINA® 25LM‐S‐E TOOL HOLDER EXPLODED VIEW (FIG.7.9) Figure 7.5 ... -
Page 13: Maintenance And Inspection Cleaning
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 8. MAINTENANCE AND INSPECTION CLEANING Keep your machine clean. Cleaning the machine on a regular basis will help detect and solve potential problems before they can cause damage to the machine. Most importantly, check and clean the tool plate connections, power cord and plugs, vacuum hoses, and water tank. CHECK DAILY After operating the Lavina S machine, the operator should conduct a visual inspection of the machine. Any defect should be solved immediately. Pay attention to power cords, plugs and vacuum hoses, loose bolts or screws. Tool holders: Buffers and spiders are consumables and must be visually checked every day and replaced when needed. Make sure flanges and discs are mounted and locked well in place. The key lock holders (butterflies) should be checked also. Check the rubber buffers and the fixing of the holdings. The flange holding the buffers (Fig8.1 1) has to be firmly fixed to the unit. A gap seen there means that there are loose screws securing the holder. The screws have to be tightened immediately to safely operate the machine. Working with loose screws on the holder could also cause damage to the machine. The tightening force of the screws has to be 25… 30N.m (18…22 ft/lbs). It is very important to regularly check the screws (Fig.8.1 2) that fix the “QuickChange” holder to the safety part, so that the holder will not fly away if the buffers get damaged. The tension of the planetary belt can be checked daily by moving the head and feeling the resistance of the Figure 8.1 moving pulleys, if the belt slips tension immediately, see the chapter: Troubleshooting. CHECK AND REPLACE AFTER THE FIRST 15 WORKING HOURS Check the belt tension after 15 hours of working with the machine. The bottom cover has a control cover (Fig.8.2) that allows for fast and easy control and correction of the belt. It is recommended that the tension of the belt be tested after the first 15 hours, and tightened if necessary. For the correct tension, see the chapter: TROUBLESHOOTING “mounting the belt”. Every time you open the control cover, mount all the screws back with washers. CHECK EVERY 200 WORKING HOURS Every 200 working hours, the operator should inspect all parts of the machine carefully. ... -
Page 14: Electrical Schemes
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 LAVINA® 25LM‐S‐E ELECTRICAL SCHEMES WITH YASKAWA INVERTER 380 Volt Figure 8.3 LAVINA® 25LM‐S‐E ELECTRICAL SCHEMES YASKAWA CONNECTION MAIN CIRCUIT TERMINALS ... -
Page 15: Troubleshooting
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 9. TROUBLESHOOTING INDEX OF PROBLEMS AND SOLUTIONS 9.1 REPLACING POWER CORD AND PLUGS When replacing the power cord or plugs, always use cords and plugs with the exact specifications as the original ones. Never use lower quality or different types of cords or plugs. In addition, take into consideration the distance of the application from the electrical source. The grater the distance, the greater the resistance and the less current that will be available at the other end, there will be a voltage drop and the inverter will go into alarm mode. This also happened if several machines are working on the same line or when the generator is underrated. In general, our standard cable can be doubled in length, if a longer length is needed you can replace all the cables with cables of a bigger gage rated for the length and the amperage. 9.2 DISMOUNTING AND MOUNTING TOOL HOLDER TO CHANGE BUFFERS AND SPIDER, CHANGING V‐RINGS AND FELT‐RINGS Figure 9.2.2 Figure 9.2.3 Figure 9.2.1 Figure 9.2.6 Figure 9.2.4 Figure 9.2.5 To check or place the buffers and the spiders, the tool holder has to be dismounted. Remove the countersunk screws on top of the ... -
Page 16: Tensioning And Replace The Planetary Belt
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 9.3 TENSIONING AND REPLACE THE PLANETARY BELT Figure 9.3.3 Figure 9.3.2 Figure 9.3.1 ... -
Page 17: Checking The Tension Of The Belt
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 Figure 9.5.7 Figure 9.5.8 Figure 9.5.9 Completely dismount the tensioning device (Fig.9.5.1). Make 2 marks on the dismounted belt that are exactly 10 cm from each other (belt without tension) (Fig.9.5.2). The purpose is to measure 10.2 cm on the belt in tension for 2% tension , a maximum of 2.5% is allowed (a maximum of 2.5% is allowed). ATTENTION: NEVER “OVER” TENSION THE BELT, THE BELT WILL BE DAMAGED AND IT WILL NEVER RECOVER ITS ORIGINAL TENSION Mount the belt back around the planetary pulley; see that the belt is behind the driving pulley (Fig.9.5.3). Put the belt around the left roller of the tensioning device (Fig.9.5.4). Put the tensioning device back in place and pull the belt from the roller on the right side (Fig.9.5.5). Put the belt around the driving pulley (Fig.9.5.6). Begin to tension until the measure of 10 cm between the marks becomes 10.2 cm (Fig.9.5.7) (Fig.9.5.8). Tighten the tensioning device while turning the bolt move the planetary head so the belt can slide. (Fig.9.5.8). Do not forget to lock Figure 9.5.10 the tensioning device (Fig.9.5.9). 9.6 CHECKING THE TENSION OF THE BELT Figure 9.6.1 Figure 9.6.2 ... -
Page 18: Replacing Of The Pulley Units
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 9.7 REPLACING THE PULLEY UNITS Dismount guard and top cover as previous described. Figure 9.7.3 Figure 9.7.1 Figure 9.7.2 Figure 9.7.4 Figure 9.7.5 Figure 9.7.6 Figure 9.7.8 Figure 9.7.7 Figure 9.7.9 ... -
Page 19: Mounting The Belt
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 For the two other pulleys, loosen the five bolts of each pulley between the base plate and the motor base disc (Fig.9.7.13). An oil seal ring (Fig.9.7.14) and a seal (Fig.9.7.15) should be placed on top of the pulley before mounting. 9.8 MOUNTING THE BELT See here the schematic of the belt on the pulleys (Fig.9.8.1). To dismount/mount the belt, follow the tensioning instructions in the chapter: Checking the tension of the belt. Figure 9.8.1 9.9 MOTOR CONNECTION If you replace the motor, please check the cable connection and follow the figures below. LAVINA® 25LM‐S‐E The motor is connected in “Star” 380 Volt, reminder for the wire connection of the motor. ... -
Page 20: Fault Diagnosis Inverter Yaskawa V1000
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 9.10 FAULT DIAGNOSIS INVERTER YASKAWA V1000 Pages are referring to Yaskawa Electric SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual 20 ... - Page 21 Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 21 ...
- Page 22 Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 22 ...
-
Page 23: Warranty And Returns
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 10. WARRANTY AND RETURNS WARRANTY POLICY FOR THE LAVINA®25LM‐S‐E MACHINE Superabrasive Ltd. guarantees that the original purchaser of the Lavina®25LM‐S‐E machine will be covered against defects in material and workmanship for a period of 2 years from the date of delivery or 500 hours of use whichever comes first. The following conditions pertain to this warranty: Applies only to the original owner and it is not transferable. Machine must not be dismantled and tampered with in any way. Covered components proven defective will be repaired or replaced at no charge. Covered components include ... -
Page 24: Spare Parts
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 13. SPARE PARTS ASSEMBLY AND PARTS SPECIFICATIONS 13.1 LAVINA® 25LM‐S‐E GENERAL PARTS FOR MACHINES PRODUCED BEFORE JAN.1 2014/ Model Item No. Description 25LM-S -E L25LS-10.00.00 Main Head 25LM-S -E MAR8.25 Tube 25LM-S -E 10-16DIN3017 Clamp 25LM-S -E L25LMS-20.00.00 Carriage With Electrical Box 25LM-S -E MAR8.20... -
Page 25: Top Cover Parts
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 13.2 LAVINA® 25LM‐S‐E TOP COVER PARTS 1 FOR MACHINES PRODUCED BEFORE JAN.1 2014/ Model Item No. Description Pcs. L25L-S-E L25GS-19.00.00 Top Cover Assembly L25L-S-E M6X10ISO7380F Screw L25L-S-E L25NSPS-07.00.00.05 Back Weight Holder L25L-S-E L25SPS-07.00.00.29 Rubber Buffer L25L-S-E L25GS-18.00.00 Frame Assembly ... -
Page 26: Planetary Drive Parts
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 13.3 LAVINA® 25LM‐S‐E TOP COVER PARTS 2 Model Item No. Description Pcs. 25LM-S-E L25GS-19.00.00.01 Top Cover 25LM-S-E L25GS-19.10.00 Vacuum Port 25LM-S-E L25GS-19.20.00 Water Fitting 25LM-S-E M12DIN985 25LM-S-E M5DIN125A Washer 25LM-S-E M5DIN127B Spring Washer 25LM-S-E M5DIN934 25LM-S-E L25SPS-04.01.00.00 Vacuum Port... -
Page 27: Bottom Cover Parts
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 13.6 LAVINA® 25LM‐S‐E BOTTOM COVER PARTS 1 Model Item No. Description Pcs. 25LM-S-E L25LS-14.00.00 Bottom Cover Assembly 25LM-S-E M5X12DIN6921 Bolt 25LM-S-E L25LS-14.00.05 Sealer Inspection Cover 25LM-S-E L25L-10.00.09 Inspection Cover 25LM-S-E M6DIN127B Spring Washer ... -
Page 28: Pulley Units Parts
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 13.8 LAVINA®25LM‐S‐E PULLEY UNIT PARTS Model Item No. Description Pcs. 25LM-S-E L25LS-11.00.00 Pulley Unit Assembly 25LM-S-E M6X20DIN7991 Screw 25LM-S-E L25L-10.00.21 25LM-S-E TRA000650 Rotary Seal 25LM-S-E L25SPS-00.00.00.23 Compensating Ring ... -
Page 29: Tool Holder Parts
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 13.10 LAVINA®25LM‐S‐E TOOL HOLDER PARTS Model No. Item No. Description Pcs. L25LM-S-E A31.10.00 Quick Change Assembly L25LM-S-E A31.12.00 Keylock Set L25LM-S-E A31.10.02-K Copling 2 with screws L25LM-S-E M6X16DIN7991 Screw L25LM-S-E A25.00.10-K Buffer with two screw... -
Page 30: Jan.1 2014
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 13.11 LAVINA® 25LM‐S‐E CARRIAGE PARTS FOR MACHINES PRODUCED AFTER JAN.1 2014/ Model Item No. Description Pcs. L25LSE-22.00.00 Guard/for control box/ 25M-S -E L25S-23.10.00 Handle Assembly 25M-S -E L32R-27.10.00 Wheel assembly 25M-S -E 25M-S -E L25S-23.00.06 Locking bit M10 x 20-DIN 6921 Screw 25M-S -E L25LМS-21.00.00... -
Page 31: Control Box Parts 380Volt
Superabrasive User Manual Original Language Lavina® 25LM‐S‐E 12/2014 13.12. LAVINA® 25LM‐S‐E CONTROL BOX PARTS 13.12 LAVINA®25LM‐S‐E CONTROL BOX PARTS 380 VOLT Model Item No. Description Item No. Description 25M-S-HV L20NS-30.30.00 Lamp Unit Incl. Cable 17.1.1 L25S-30.20.11 Plug 25M-S-HV L20NS-30.10.01 Cable Gland 17.1.2 L25LHVS-30.20.12 Cable for Electro Motor 25M-S-HV L25LES-30.10.02...
