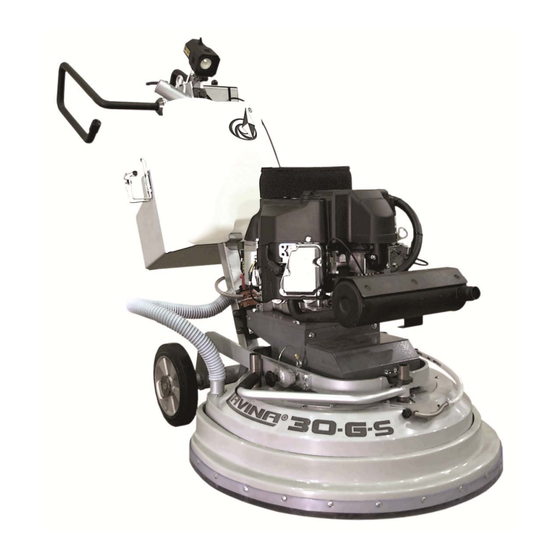

- Page 1 Superabrasive Owner’s Manual – LAVINA® 30G‐S 6/2014 LAVINA 30G-S ® User Manual Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us CONTENT 1 ...
- Page 2 A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. See next page for more details on LAVINA warranty and return policies. Print and mail this form. Or fill out and submit our...
- Page 3 The warranty herein is non-transferable, and only applies to the original owner or purchaser of the machine. RETURN POLICY FOR LAVINA® S MACHINES The Lavina® S machines may be returned, subject to the following terms: In no case, a machine is to be returned to Superabrasive Inc. for credit or repair without prior authorization. Please contact Superabrasive Inc.
-
Page 4: Table Of Contents
Superabrasive Owner’s Manual – LAVINA® 30G‐S 6/2014 Planetary Drive Exploded View 14 1. GENERAL INFORMATION Top Cover Exploded View 2 14 Preface 3 Bottom Cover Exploded View 1 15 Manufacturer 3 Bottom Cover Exploded View 2 15 General Description 3 Carriage Exploded View 15 Machine Characteristics 3 Tool Holder Exploded View 15 LAVINA® 30G‐S Main Design 3 Environmental Conditions 4 8. MAINTENANCE AND INSPECTION Vacuum Connection 4 Technical Data 4 ... -
Page 5: Superabrasive Owner's Manual - Lavina® 30G-S
. GENERAL DESCRIPTION The Lavina® S machine is intended for grinding, polishing and buffing concrete, marble, granite, limestone and terrazzo surfaces with diamond tools. The Lavina® S machine is a three‐disc machine, which can be used dry as well as wet. For best results, use only tools manufactured or recommended by Superabrasive and its distributors. Additionally, the machine could be used for grinding wood floor surfaces. The Lavina® S machine is manufactured and fitted for the above-mentioned applications only! Every other use may possess risks to the persons involved. MACHINE CHARACTERISTICS The Lavina® S machine is made of two main component sections: LAVINA® 30G‐S MAIN DESIGN Figure 1.1 The two main components are the carriage and main head. -
Page 6: Environmental Conditions
. SONOROUS EMISSIONS The sonorous emissions are within the limits of directives and harmonized standards from the European Union when the Lavina® S is operated with the recommended tools and in normal conditions. However, as previously stated, the operator must wear ear protectors. LABEL DATA ... -
Page 7: Preparation For Work
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 In areas where loose tiles or other objects are preventing Another cause may be substandard, inexpensive machines with proper use of the machine. no emissions control technology and improperly set In rooms without proper ventilation carburetion. Overfilled Fuel Cylinders: Nearly all fire relatedincidents reported result from bringing a cylinder into PREPARATION FOR WORK a building without first checking for overfill. This action is Make sure that: You have closed the dangerous, unwise, and unnecessary. work area, so that no person unfamiliar with operating the FIRE SAFETY ... -
Page 8: Local Agencies And Regulations
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 5. Have the machine and cylinder inspected before using them During the normal operating and maintenance cycles, the again operator is exposed to few residual risks, which cannot be LOCAL AGENCIES AND REGULATIONS eliminated due to the nature of the operations. NFPA BEFORE YOU BEGIN Operating a propane powered Working area must be clear from any debris or objects. floor care machine requires compliance with certain safety A first‐time operator must always read the manual and pay regulations. The National Fire Protection Agency (NFPA) attention to all safety instructions. Standard for Storage and Handling of LP Gas is the appropriate All propane connections and cables must be inspected for authority for safe propane use. A copy of this publication is potential damages. available through the NPFA in Quincy, MA (1‐800‐334‐3555). Perform general daily inspections of the machine and Among its regulations, NFPA #58 requires that all personnel inspect the machine before each use. employed in the handling of propane gas be trained in its proper Always inspect the safety devices: handling and operating procedures. It also requires them to ... -
Page 9: Testing
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 life of 30 days, depending on the concentration of The operator must have floor grinding experience. contaminants, humidity, and temperature. The operator must know what to do in case of emergency. TESTING The operator must have an adequate technical knowledge and There are a great number of instruments offered on the preparation. The operator is expected to operate their equipment safely market to test for toxic gases. Only those designed to read and responsibly. They are responsible for the proper carbon monoxide resulting from combustion engines is handling and storage of propane cylinders, identifying considered acceptable for testing exhaust emissions from potential hazards associated with his job and avoiding propane powered floor machines. these hazards at all times. Some instruments are used to read “ambient air” and may PROPANE CYLINDERS be damaged if used to take readings in the muffler or tail The Propane cylinders are constructed of either aluminum or pipe. Selecting the proper instrument is an important part of steel. We recommend aluminum because it is lighter and meeting the testing requirements. ... -
Page 10: Storage Cylinders
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 Propane changes into a gas, is ‐44 F (‐42 C). Exposing TRANSPORTING CYLINDERS unprotected skin to propane gas or liquid could result in When transporting cylinders to a propane dealer or to a job, frostbite injury. make sure the cylinders are securely fastened and standing in All new cylinders should be vented and purged of air per an upright position with the service valve closed. manufacturer’s instructions before use. Never bleed propane A cylinder rattling around in the back of a vehicle and cylinders indoors. banging into other objects constitutes a hazard. Avoid STORAGE CYLINDERS dropping or banging cylinders against sharp objects. When not in use, propane cylinders always should be stored The propane cylinders are sturdily constructed but a series outside in an upright position in a secure, tamperproof, steel of hard jolts could cause damage. mesh storage cabinet. This cabinet may be located next to Please note that any cylinder that has been filled is always the building but with at least five considered full, no matter how little propane gas remains feet (1.5 m) of space between the cabinet and the nearest ... -
Page 11: Lifting
The machines manufactured after 2013 are with `changed locking of the front handle as shown on the fig.3.6.1. Figure 3.5 Figure 3.6 Figure 3.6.1 LIFTING Lifting the machine by crane is possible by using the eye bolt mounted on the carriage (see fig. 3.7). The eye bolt and machine construction is rated only for the weight of the machine. Do not lift any other loads on the machine. Use always hoisting equipment rated for 300 kg or 660 lbs. STORAGE Always store and transport the LAVINA® S machine in a dry place. Never transport the LAVINA® S machine unprotected; it may be damaged if transported unprotected during rain or snow. Figure 3.7 When during the storage of the machine the temperature may fall down to or less 32F (or 0 C) you should empty the water from the system using following steps: ‐ Pull out the hose of the tank (Fig.3.8) ‐ Using compressed air blow out the water from the system for the two positions of the turn‐cock (Fig. 3.9, Fig. 3.10). Figure 3.10 Figure 3.9 Figure 3.8 MOUNTING OF GUARD ASSEMBLY Set the machine in the position shown on Fig 3.11, turn the Guard Assembly (Fig 3.12). Pull backwards the Guard Assembly, you have to be sure that the Tool holders have passed through it (Fig 3.13). Put the Guard Assembly on position (Fig 3.14). ... -
Page 12: Mounting Of Guard Assembly
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 4. OPERATION PRELIMINARY CONTROLS Inspect the working area as explained in the safety instructions. For wet use, fill in the water tank or connect the vacuum extractor and ensure that the vacuum hose is clear and it will follow the machine easily. Make sure the bonnet air filter on top of the engine is clean. It should be cleaned hourly. Check the engine oil level, screw the dipstick in to get reading. See to it the tank is fill up (see also “Storage Propane tanks). TANK and FUEL LINES ‐ The tanks has already been covered but do the fuel lines show any sign of wear and tear, such as cracks or any corrosion. Screw the brass fuel line fitting onto the tank service‐valve hand tight only. This connection MUST be secure because the service valve has a safety valve inside it, which will only open if the brass fuel‐line fitting is COMPLETELY seated into the service valve. WATER FLOW CONTROL UNIT The operator can choose the water sprayer in the front when the tap is in the horizontal position (Fig.4.1), the water will spray under the cover of the machine when the level is in the vertical position (Fig.4.2).The flow regulating valve located on the tank (Fig.4.2.1) is increasing or reducing the water flow to the working area – in front of the ... -
Page 13: Control Board
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 CONTROL BOARD pm engine rpm tools THE CONTROL BOARD 2000 650 1 Start/Stop Engine switch Turn key to the right 2100 683 for contact full right for starting the engine, to stop 2200 715 key to left full left is contact 2300 748 2 Start/Stop clutch Start will electronically activate 2400 780 the grinding plates to spin, by pushing stop it will 2500 813 disconnect engine from grinding heads 2600 845 3 Throttle Push forward to accelerate. 2700 878 4 Digital RPM/workings hours indicator When the 2800 910 motor runs it indicates the revolutions per minute 2900 943 ... -
Page 14: Tools And Accessories
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 5. TOOLS AND ACCESSORIES WEIGHTS Superabrasive offers additional weights for increasing the productivity of the machine (Fig.5.1). Each additional weight weighs about 64 lbs or 29 kg. Each individual application, type and condition of surface, power capacity of the outlet, etc. will determine the number of weights you can use without tripping a breaker. The weight stacks on to three posts around the outer bowl (Fig.5.2). The additional weights depend on the tools; it is not always possible to add weights. Some tools work too aggressively and the machine can stop. The weight can be ordered with item number A 08.00.00.00. Figure 5.1 Figure 5.2 TOOL HOLDER KEY The tool holder key (Fig. 5.3) is used for adjusting, mounting and dismounting of the foam plates. Always use the key for mounting. Item number is A03.00.00.00 Figure 5.3 FOAM PLATE Diamond tools with Velcro are mounted on the foam plate (Fig.5.4). The foam plate is mounted on the “QuickChange System” . Item number is LV‐13.5‐FP‐S Figure 5.4 SECURITY PLATE FOR QUICKCHANGE PADS Plate (Fig.5.5) used to ensure the “Quickchange” pads. ... -
Page 15: Tools
6. POPULAR TOOLS RECOMMENDED TOOLS QuickChange System and Tooling feature extremely fast and convenient tool changes, and a long tool life, providing for great long‐term cost savings. The QuickChange pads are produced in four different bonds for super hard, hard, medium and soft concrete, in a variety of grit sizes. Offered with 1 or 2 buttons or rectangular segments, which allows you to customize the aggressiveness of the cut. Calibra grinding discs: our popular ceramic bond discs are designed for the removal of difficult scratches and they save you valuable time by eliminating the need for multiple passes with metal tools. They can be used wet or dry, and are best for hard concrete applications. They are 3-inch, with included Velcro back attachment. NATO® polishing discs feature a special resin formula designed for both wet and dry applications and a unique design with wide channels allowing for work on a cleaner surface and ensuring a quality polish. Available in 3 and 4 in sizes. They are with included Velcro attachment. V‐HARR® Premium Polishing Pads are designed for mechanically polishing and restoring concrete; also ideal for terrazzo and hard stone floors. V‐HARR® pads are offered in a wide variety of diameters and grit sizes to accommodate many applications. Dry use is strongly recommended. ® Shine Pro are high quality diamond‐impregnated pads for floor maintenance. Available in a variety of sizes, and are great for daily use. When used wet, they require only water (no wax or chemicals needed) and are a very environmentally friendly solution for maintaining floors. Use only Superabrasive’s recommended tools. For more tooling options, visit www.superabrasive.com 10 ... -
Page 16: Exploded View
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 7. EXPLODED VIEW LAVINA® 30G‐S GENERAL EXPLODED VIEW (FIG.7.1) LAVINA® 30G‐S TOP COVER EXPLODED VIEW 1 (FIG.7.2) LAVINA® 30G‐S PLANETARY DRIVE EXPLODED VIEW (FIG.7.3) LAVINA® 30G‐S TOP COVER EXPLODED VIEW 2 (FIG.7.4) Figure 7.1 Figure 7.2 Figure 7.4 Figure 7.3 14 ... -
Page 17: Carriage Exploded View
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 LAVINA® 30G‐S BOTTOM COVER EXPLODED VIEW 1 (FIG.7.5) LAVINA® 30G‐S BOTTOM COVER EXPLODED VIEW 2 (FIG.7.6) LAVINA® 30G‐S CARRIAGE EXPLODED VIEW (FIG.7.7) LAVINA® 30G‐S TOOL HOLDER EXPLODED VIEW (FIG.7.8) Figure 7.6 Figure 7.5 Figure 7.8 Figure 7.7 15 ... -
Page 18: Maintenance And Inspection
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 8.MAINTENANCE AND INSPECTION REMARK Tampering w/Emission Control System Prohibited Federal law and California State law prohibits the following acts or the causing thereof: (1) the removal or rendering inoperative by any person other than far purposes of maintenance, repair, or replacement, of any device or element at design incorporated into any new engine for the purpose of emission control prior to its sale or delivery to the ultimate purchaser or while it is in use, or (2) the use of the engine after such device or element of design has been removed or rendered inoperative by any person. Among those acts presumed to constitute tampering, involve the parts/systems listed below: Carburetor and internal parts Crankcase Cylinder heads Spark plugs Breather chamber and internal parts Magneto or electronic ignition system Intake pipe and tube Fuel filter element Air cleaner elements MECHANICAL PARTS ... -
Page 19: Check And Replace Every 200 Working Hours
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 CHECK AND REPLACE EVERY 50 WORKING HOURS Change engine oil, while changing check for leakage of engine oil at the various seals. The hour meter will blink between 48‐52 hours as a reminder. /"Engine Oil Capacity" is 1.5L(1.6US.qt) when oil filter is not removed 1.7L(1.8US.qt) when oil filter is removed/. Recommended Oil Change Intervals Do not exceed the 50‐hour oil change interval. Oil changes more frequent than 25 hours will give even longer engine life. In any case, always use 30HD or 10W30 engine oil with all of the following ratings: SF, SG, and CC. make sure the oil level is ... -
Page 20: Troubleshooting
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 9. TROUBLESHOOTING 9.1 ENGINE When troubles occur, be sure to check the simple causes which at first, may seem too obvious to be considered. For example, a starting problem could be caused by fuel starvation due to an empty propane cylinder or an unopened service valve. If you do not check for this, starter burnout could result. Some Troubles and solutions: Surging idle To smooth out the engines' idle characteristics, adjustment is provided by an idle screw on the lower left side of the carburetor as viewed from the operator's position. The screw is bright steel and 1/4" in diameter with a Phillips head on it. Rotating the screw clockwise will increase the idle speed and this should cure the "surging idle". If it does not, call our customer service. Engine starts and idles, but will quit as the throttle is advanced It is possible that the propane tank's service valve is faulty. To check for this, close the valve completely and then reopen very slowly while you listen for a "click" when the gas begins to travel through the valve. If you hear this very slight noise, the valve is only partially opening. This allows enough gas through to start and idle the engine, but not enough for full throttle operation. As the throttle is increased, allowing more air to enter the intake, the engine will quit from fuel starvation. Call your dealer or the factory for instructions on where to have the service valve replaced. Meanwhile, to get by, you can continue to open the service valve until you do not hear a “click" and then the engine will run normally. If it does not, call your customer service. Starter barely turns the engine over or the solenoid just clicks The battery is likely low in charge. This can be remedied by recharging the battery using a 12 Volt battery charger at 4.12 amperes. The battery is located under the frame at the rear of the buffer. The positive post is the one with the RED cable attached to it. Follow the instructions that came with the battery charger. REMINDER: this will continue to happen unless your ... -
Page 21: Dismounting/Mounting Of The Engine
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 Pull the connector of the battery (Fig. 9.3.1), pull out the Propane hose (Fig. 9.3.2), the connectors of the lamp (Fig. 9.3.3), dismount the control panel (Fig. 9.3.4), and take off all water and vacuum hoses (Fig. 9.3.5). Remove the tank (Fig. 9.3.6). Now it is possible to separate the head by removing the pins; two people are needed to do this operation: one person holds the carriage the other pulls the pins (Fig. 9.3.7). Figure 9.3.6 Figure 9.3.5 Figure 9.3.7 Figure 9.3.4 9.4 DISMOUNTING/MOUNTING THE ENGINE Figure 9.4.2 Figure 9.4.3 Figure 9.4.1 Separate head from carriage (see previous chapter). Remove front (Fig. 9.4.1) and back belt protection (Fig. 9.4.2). Loose the motor base plate (Fig. 9.4.3), release the tension device (Fig. 9.4.4), and take out the belt (Fig. 9.4.5). Take off the engine (Fig. 9.4.6). Figure 9.4.6 Figure 9.4.5 Figure 9.4.4 Reassemble in the same manner. (Fig. 9.4.7), Tension the belt with bolt (4) on (fig. 9.4.6) or (fig. 9.4.4) The belt tension can be tested with a Frequency ... -
Page 22: Replacing The Clutch
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 9.5 REPLACING THE CLUTCH Figure 9.5.1 Figure 9.5.2 Figure 9.5.3 In case the electric clutch has to be replaced, remove the engine (see previous chapter) and lay it on its side with the oil drainage up (Fig. 9.5.1). Remove the motor base plate (Fig. 9.5.2) and loosen the front nut with an impact wrench to dismount the pulley and clutch (Fig. 9.5.3). Reassemble in the same manner. Do not forget to mount back the washers on the shaft (Fig. 9.5.4). The torque on the front nut (Fig. 9.5.3) to mount the pulley and clutch should be 70 Nm or 52 ft lbs. Figure 9.5.4 9.6 DISMOUNTING AND MOUNTING TOOL HOLDERS TO CHANGE BUFFERS AND SPIDERS, CHANGING V‐RINGS AND FELT‐RINGS Figure 9.6.2 Figure 9.6.3 Figure 9.6.1 Figure 9.6.6 Figure 9.6.4 Figure 9.6.5 To check or replace the buffers and the spiders, the tool holders have to be dismounted. Remove the countersunk screws on ... -
Page 23: Tensioning And Replacing The Planetary Belt
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 Figure 9.6.10 Figure 9.6.8 Figure 9.6.9 Figure 9.6.7 When the tool holder is dismounted, you can change the sealers (V‐Ring and Felt‐Ring). Take out Felt‐Ring, Adaptor and V‐Ring. Before mounting check on which side the adaptor is fitting, remember the correct side. Mount the V‐Ring with the smallest lip of the V to inside (Fig.9.6.7) just push the V‐ring so the top is on the same level as the pulley top (Fig.9.6.8). Then take the adaptor in the correct way and push the V‐Ring down with the adaptor (Fig.9.6.9). The lowest lip of the V‐Ring should only barely touch its gliding surface; also never push the V‐Ring down with fingers. Mount now the Felt‐ring on top (Fig.9.6.10). Close the sealers with the cap (Fig.9.6.11). Figure 9.6.11 9.7 TENSIONING AND REPLACING THE PLANETARY BELT Figure 9.7.1 Figure 9.7.2 If the belt slips or is broken, separate the carriage from main head (Fig. 9.7.1). Take off handles, fork, top frame, and weight holders so you can push up the top cover (Fig. 9.7.2). 9.8 TENSIONING USED PLANETARY BELT Figure 9.8.2 Figure 9.8.1 Noticing speed lost in planetary movement it is possible to tension the belt for planetary movement as described in 9.9: Mounting and tensioning a new planetary belt. ... -
Page 24: Mounting And Tensioning A New Planetary Belt
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 9.9 MOUNTING AND TENSIONING A NEW PLANETARY BELT Figure 9.9.1 Figure 9.9.3 Figure 9.9.2 Figure 9.9.4 Figure 9.9.6 Figure 9.9.5 Figure 9.9.7 Figure 9.9.8 Figure 9.9.9 Completely dismount the tensioning device (Fig. 9.9.1). Make 2 signs on the dismounted belt exactly 10 cm out of each other (belt without tension) (Fig. 9.9.2). The purpose is to measure 10.2 cm on the belt in tension what is a tension of 2%., a maximum of 2.5% is allowed. ATTENTION: NEVER “OVER” TENSION THE BELT, THE BELT WILL BE DAMAGED AND IT WILL NEVER RECOVER ITS ORIGINAL TENSION Mount the belt back around the planetary pulley; see that the belt is behind the driving pulley (Fig.9.9.3). Put the belt around the left roller of the tensioning device (Fig. 9.9.4). Put the tensioning device back in place and pull the belt from the roller on the right side (Fig. 9.9.5). Put the belt around the driving pulley (Fig. 9.9.6). Begin to tension until the measure of 10 cm ... -
Page 25: Replacing The Pulley Units
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 Figure 9.10.1 Figure 9.10.2 Figure 9.10.3 Figure 9.10.4 Figure 9.10.5 Open the checking cover to reach the belt and tension device (Fig. 9.10.1). While tensioning check regularly tension. Push the belt down and with a pressure of 71N. This is approximately 7 kilograms or 15 pounds with this pressure the belt should move 3.5-4 mm or 1/8”. -
Page 26: Mounting The Belt
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 Figure 9.11.11 Figure 9.11.12 Figure 9.11.10 Dismounting the driving pulley: take the top screw out to release the bushing (Fig.9.11.1), push the bushing together with the washer up (Fig.9.11.2), push washer down of the bushing (Fig.9.11.3)., take bushing out (Fig.9.11.4), push key out (Fig.9.11.5), now the washer releases (Fig.9.11.6), dismount sealer cap (Fig.9.11.7)(Fig.9.11.8), the pulley can be released with two crowbars but do not use excessive force (Fig.9.11.9), push the sealer cap to dismount (Fig.9.11.10), by mounting back secure with sealant (Fig.9.11.11), center the holes to mount the pulley (Fig.9.11.12). Figure 9.11.13 Figure 9.11.14 Figure 9.11.15 The two other pulleys: loosen the five bolts of each pulley between the base plate and the motor base disc (Fig. 9.11.13). An oil seal ring (Fig. 9.11.14) and a seal (Fig. 9.11.15) should be placed on top of the pulley before mounting. 9.12 MOUNTING THE BELT See here the schematic of the belt on the pulleys (Fig.9.12.1). To dismount/mount the belt, follow the tensioning instruction in chapter: Checking the tension of the belt. Figure 9.12.1 24 ... -
Page 27: Warranty
The warranty herein is non-transferable, and only applies to the original owner or purchaser of the machine. RETURN POLICY FOR LAVINA® S MACHINES The Lavina® S machines may be returned, subject to the following terms: In no case, a machine is to be returned to Superabrasive Inc. for credit or repair without prior authorization. Please contact Superabrasive Inc. -
Page 28: Spare Parts
Superabrasive Owner’s Manual – LAVINA® 30G‐S 6/2014 13. SPARE PARTS ASSEMBLY AND PARTS SPECIFICATIONS 13.1 LAVINA® 30G‐S GENERAL PARTS FOR MACHINES PRODUCED BEFORE Jan. 1, 2014/ Model Item No. Description Pcs. L30G-S L30-05.00.00.00 Guard Assembly L30G-S L30GS-10.00.00 Main head L30G-S L25GS-03.00.00 Pin Assembly L30G-S MAR8.110 Tube L30G-S L25GS-20.00.00 Carriage L30G-S D40L700 Vacuum Hose L30G-S MAR8.25... -
Page 29: For Machine Produced Before 2014
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 13.2 LAVINA® 30G‐S TOP COVER 1 PARTS FOR MACHINES PRODUCED BEFORE Jan. 1, 2014/ Model Item No. Description Pcs. Top Cover L30G-S L25GS-19.00.00 Assembly L30G-S M6X10ISO7380F Screw Back Weight L30G-S L25NSPS-07.00.00.05 Holder L30G-S L25SPS-07.00.00.29 Rubber Buffer L30G-S L25GS-18.00.00 Frame Assembly L30G-S M8X20DIN6921 Bolt L30G-S L25GS-10.00.31... -
Page 30: Engine Base Parts
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 13.3 LAVINA® 30G‐S ENGINE BASE PARTS Model Item No. Description Pcs. L30G-S FS481VA-CS10-M Kawasaki Engine *L30G-S L25G-S-10.02.06 Clutch Washer L30G-S 5215 Electric Clutch L30G-S L25G-10.02.02.S Bolt Set L30G-S M8X25DIN933 Bolt L30G-S M8DIN127B Spring Washer L30G-S M8DIN125A Washer L30G-S L25G-10.00.65... -
Page 31: Planetary Drive Parts
Base plate 13.6 LAVINA® 30G‐S WATER SUPPLY PARTS FOR MACHINES PRODUCED BEFORE Jan. 1, 2014/ Model Item No. Description Pcs. L30G-S A29.21.00 Backflow Preventer L30G-S A29.22.00 Vent Valve 13.6 LAVINA®30G‐S WATER TANK PARTS FOR MACHINES PRODUCED AFTER Jan. 1, 2014/ Model Item No. Description Pcs. L30G-S A29.21.00 Backflow Preventer L30G-S A29.50.00 Regulator L30G-S 1/2"... -
Page 32: Bottom Cover 1 Parts
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 13.7 LAVINA® 30G‐S BOTTOM COVER 1 PARTS Model Item No. Description Pcs. L30G-S L25LS-14.00.00 Bottom Cover Assembly L30G-S M5X12DIN6921 Bolt L30G-S L25LS-14.00.05 Sealer Inspection Cover L30G-S L25L-10.00.09 Inspection Cover L30G-S M6DIN127B Spring Washer L30G-S M6X12DIN933 Bolt L30G-S M6DIN9021A Washer... -
Page 33: Bottom Cover 2 Parts
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 13.9 LAVINA® 30G‐S BOTTOM COVER 2 PARTS Model Item No. Description Pcs. Item No. Description Pcs. L30G-S L25L-12.00.00 Tensioning Support L25L-10.00.12 Sector L30G-S L25L-10.00.16 Sector L25L-10.00.07 Support L30G-S M6DIN127B Spring Washer L32C-14.20.04 L30G-S M6X30DIN933 Bolt M10DIN934 L30G-S PL2476-975L-9 Endless Transmission V Belt L25L-10.00.08... -
Page 34: For Machine Produced Before 2014
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 FOR MACHINES PRODUCED BEFORE Jan.1, 2014/ 13.11 LAVINA® 30G‐S CARRIAGE PARTS / Model Item No. Description Pcs. Item No. Description Pcs. L30G-S L25GS-21.00.00 Frame M5DIN985 L30G-S L25G-23.00.00 Handle Assembly M5X20DIN933 Bolt L30G-S L25SPS-02.00.00.18-01 A29.20.00 Water Flow Control Unit... -
Page 35: For Machine Produced After 2013
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 13.11 LAVINA® 30G‐S CARRIAGE PARTS / FOR MACHINES PRODUCED AFTER Jan.1, 2014/ Model Item No. Description Pcs. Item No. Description Pcs. L30G-S L25GS-21.00.00-01 Frame M5X20DIN933 Bolt L30G-S L25-S-23.10.00 Handle Assembly A29.40.00 Water Flow Control Unit L30G-S L25-S-23.00.02 End Cover A29.20.01-01... -
Page 36: Engine Parts
Superabrasive User Manual Original Language Lavina® 30G‐S 6/2014 13.12 LAVINA® 30G‐S ENGINE PARTS Model Item No. Description Pcs. L30G-S W3132 Kawasaki FS481V-AS10-M 18H 12V L30G-S K49065-7007 Oil Filter L30G-S W1325 Oil Pressure Switch L30G-S F466230 Elbow L30G-S K59071-7004 Joint L30G-S FE17409029909 Oil Drain Valve L30G-S...
