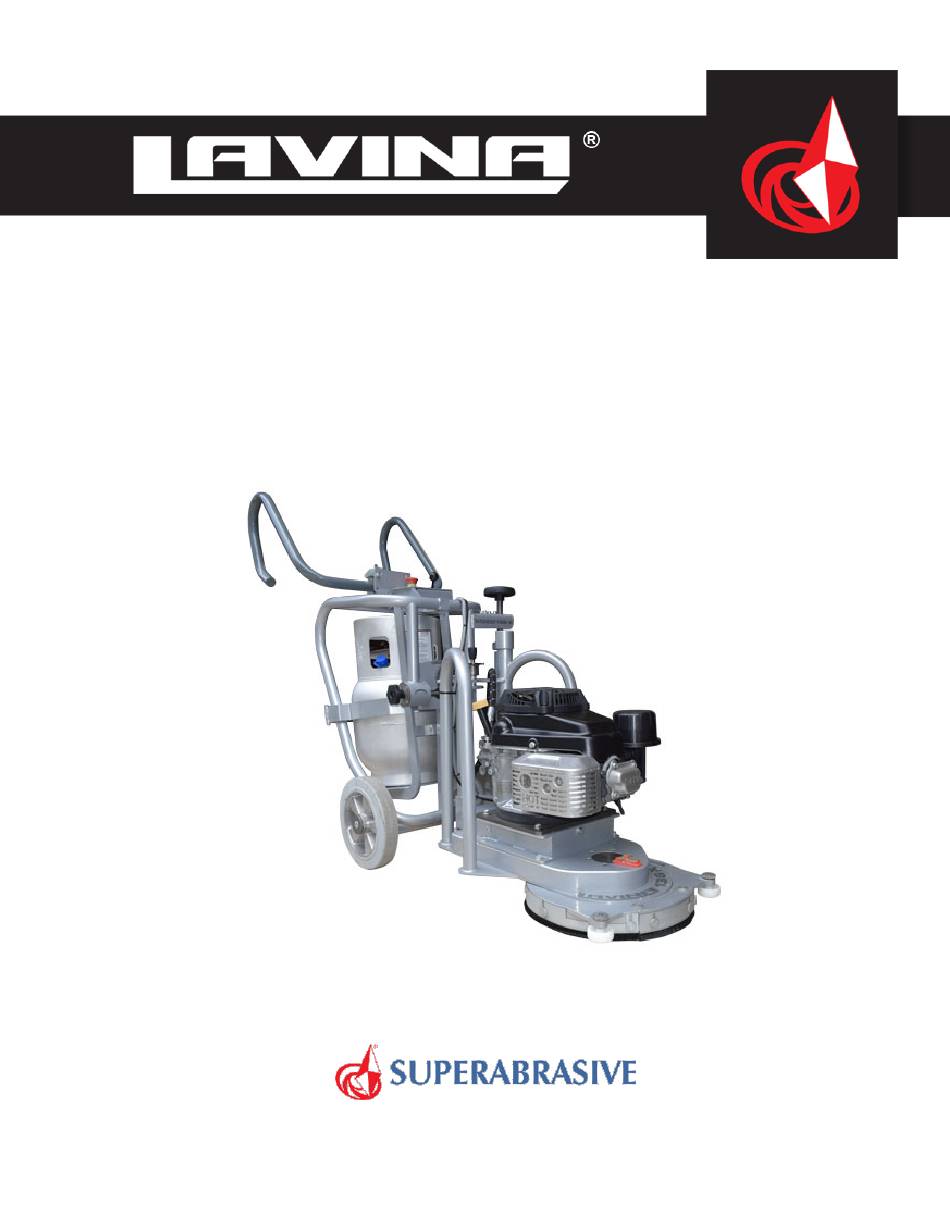

- Page 1 LAVINA 13G-X ® User Manual Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us...
- Page 2 1/2018 Superabrasive User Manual Original Language Lavina®13G-X...
-
Page 3: Warranty And Returns
Original Language Lavina®13G-X WARRANTY AND RETURNS ® WARRANTY POLICY FOR LAVINA X MACHINES A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. You can either mail a hard copy of the warranty card or submit it electronically - see page 2. -
Page 4: Table Of Contents
Adjusting handle ............... 12 2. LAVINA®13G-X Main Head 1 ..........23 Tool protecting guard ..............12 3. LAVINA®13G-X TOOL HOLDER PARTS/SEE ALSO FIG.8.7.13/ .. 24 the Control Board ..............12 (POS.1 INCLUDE POS.1.1;1.2;1.3/POS.1.3 INCLUDE POS.1.3.1 and etc.) Starting the Machine ..............12 .................... -
Page 5: General Information
1. GENERAL INFORMATION This owner’s manual is intended for the operator of the Lavina® 13G-X machine, the servicing technician as well as for anyone involved with operating or servicing the machine. We recommend that you read the instructions very carefully and follow them strictly. -
Page 6: Vacuum Connection
VACUUM CONNECTION A connection for a vacuum dust extractor is located on the handle. The Lavina®13G-X does not include a vacuum dust extractor. The customer must purchase the vacuum dust extractor separately. The hose of the vacuum extractor must be Ø 50.8 mm and can be glided over the pipe. -
Page 7: Safety Instruction
SAFE USE RECOMMENDED USE The LAVINA® 13G-S is designed to eliminate all risks The LAVINA® 13G-S machine is designed and manufactured to correlated with its use. However, it is not possible to eliminate grind and polish concrete, terrazzo and natural stone floors. It the risks of an eventual accident with the machine. -
Page 8: Hazard Communication
1/2018 Superabrasive User Manual Original Language Lavina®13G-X be fatal. Carbon monoxide (CO) poses the greatest risk, since shall be permitted to be used in buildings frequented by the CO can be lethal within as little as 30 minutes exposure at public, including the times when such buildings are occupied 3,000 parts per million (ppm) concentration. -
Page 9: Operating Machine
(air in the breathing zone of the operator). Instruments capable of testing carbon monoxide When operating the Lavina® 13G-S , make certain that in the exhaust should be able to read from 0 to at least there is no one, but you around the machine. -
Page 10: Propane Cylinders
1/2018 Superabrasive User Manual Original Language Lavina®13G-X PROPANE CYLINDERS heater, or other source of ignition. Propane changes into a gas, is -44º F (-42º C). Exposing unprotected skin to propane gas or liquid could result in frostbite injury. The Propane cylinders are constructed of either aluminum ... -
Page 11: Operation
1/2018 Superabrasive User Manual Original Language Lavina®13G-X 3. OPERATION PRELIMINARY CONTROLS Inspect the working area as explained in the safety instructions. For dry use connect the vacuum extractor and ensure that the vacuum hose is clear and it will follow the machine easily. -
Page 12: Adjusting Handle
1/2018 Superabrasive User Manual Original Language Lavina®13G-X ADJUSTING HANDLE Unscrew the handle (Fig. 3.8) till it reaches the ager (Fig. 3.9). Pull up the ager (Fig. 3.9) and turn the handle to the desired position. Figure 3.9 Figure 3.8 TOOL PROTECTING GUARD The protecting guard has free movement and is self-adjusting according to the height of the tool abrasion and is turning in the °... -
Page 13: Operating The Machine
Work at a constant speed allowing the tools time to work at a speed appropriate for the tools’ grit size. Avoid vibrations. Do not stop the LAVINA® 13G-X machine in one spot while the tools are still working because they will leave marks on the floor surface. -
Page 14: Tools And Accessories
1/2018 Superabrasive User Manual Original Language Lavina®13G-X 4. TOOLS AND ACCESSORIES TOOL HOLDER KEY The tool holder key (Fig.4.2) is used for adjusting, mounting and dismounting of the foam plates. Always use the key for mounting. Item number is A03.00.00.00 Figure 4.2... -
Page 15: Popular Tools
1/2018 Superabrasive User Manual Original Language Lavina®13G-X 5. POPULAR TOOLS RECOMMENDED TOOLS QuickChange System and Tooling feature extremely fast and convenient tool changes, and a long tool life, providing for great long‐term cost savings. The QuickChange pads are produced in four different bonds for super hard, hard, medium and soft concrete, in a variety of grit sizes. -
Page 16: Maintenance And Inspection
Propane installation. CHECK DAILY After operating the Lavina® X machine, the operator should conduct a visual inspection of the machine. Any defect should be solved immediately. Pay attention to power cords, plugs and vacuum hoses, loose bolt or screws. -
Page 17: Troubleshooting
1/2018 Superabrasive User Manual Original Language Lavina®13G-X 7. TROUBLESHOOTING INDEX OF PROBLEMS AND SOLUTIONS 7.1 ENGINE When troubles occur, be sure to check the simple causes which at first, may seem too obvious to be considered. For example, a starting problem could be caused by fuel starvation due to an empty propane cylinder or an unopened service valve. -
Page 18: Dismounting Tool Holder To Change V-Rings
1/2018 Superabrasive User Manual Original Language Lavina®13G-X AIR FILTER CHANGE Service Interval: Every 25 hours—Clean the foam pre-cleaner. Every 300 hours— Replace the paper air filter. (May need more often in dusty conditions.) Note: Do Not operate the engine without the air filter assembly; extreme engine damage will occur. -
Page 19: Disassembling And Mounting Tool Holder To Change Buffers And Elastic Element
Superabrasive User Manual Original Language Lavina®13G-X 7.3 DISASSEMBLING AND MOUNTING TOOL HOLDER TO CHANGE BUFFERS AND ELASTIC ELEMENT When the TOOL HOLDER is disassembled you can change defective parts – elastic element, buffers, etc. Lift the locking pin (Fig.7.3.1) to dismount the retaining washer (Fig. 7.3.2). Take out the screws on the buffers and the nuts of the elastic element (Fig. -
Page 20: Tensioning The Belts
Superabrasive User Manual Original Language Lavina®13G-X 7.4 TENSIONING THE BELTS PLEASE MAKE SURE YOU CHECK THE TENSION OF THE BELT AFTER THE FIRST 15 HOURS OF OPERATION If the operator notices, the grinding spindle is turning irregular or noisy or in the worse case, the grinding spindle does not turn although the motor turns. -
Page 21: Replacing The Clutch
2/2013 Superabrasive User Manual Original Language Lavina®13-S Figure 7.5.8 Figure 7.5.9 Figure 7.5.10 The driving transmission from the engine to the tools is made by the two types of belts: V-belt – from the engine to the pulley and timing belt – from the pulley to the tool.To change the timing belt follow the instruction of Figure 7.5.1 to Figure 7.5.6. -
Page 22: Warranty And Returns
Superabrasive Inc. guarantees that the original purchaser of the Lavina ®13G-X machine will be covered against defects in material and workmanship for a period of 2 years from the date of delivery or 500 hours of use whichever comes first. -
Page 23: Spare Parts
Self Locking Nut M16DIN125A Washer L13GX10.00.00 Main Head L13GX20.00.00 Carriage M5X10ISO7380F Screw L13GX20.10.00 Pult W2504 Propane tank 2. LAVINA®13G-X MAIN HEAD 1 Item No. Description Pcs. A43.00.00 Tool Holder A43 L13GX10.00.01 Adaptor TWVA00800 V-Ring Type A M5X12DIN912 Screw М5DIN7980 Washer L13GX10.40.00... -
Page 24: Lavina®13G-X Tool Holder Parts/See Also Fig.8.7.13
1/2018 Superabrasive User Manual Original Language Lavina®13G-X 3. LAVINA®13G-X TOOL HOLDER PARTS/ SEE ALSO FIG.8.7.13/ (POS.1 INCLUDE POS.1.1;1.2;1.3/POS.1.3 INCLUDE POS.1.3.1 and etc.) Item No. Description Pcs. A43.10.00 Quick Change Assembly A31.12.00 Keylock Set A43.11.00 Quick Change plate A41.12.00 Security set 1.3.1... -
Page 25: Lavina®13G-X Main Head 3
1/2018 Superabrasive User Manual Original Language Lavina®13G-X 5. LAVINA®13G-X MAIN HEAD 3 Item No. Description Pcs. L13GX10.00.03 Flange М6X10DIN7991 Screw L13S-10.00.40 Disc Cover M6X12DIN7991 Screw D3.2X1.8X803 Seal L13GX10.10.00 Driven Bearing OMEGA9255MHP25 Timing Belts M8X12DIN7991 Screw L13GX10.20.00K Frame SET L13GX10.90.00 Pulley Unit Assembly... -
Page 26: Lavina®13G-X Carriage Parts 1
1/2018 Superabrasive User Manual Original Language Lavina®13G-X 5. LAVINA®13G-X CARRIAGE PARTS 1 Item No. Description Pcs. Item No. Description Pcs. M10X16DIN7991 Screw L13S-20.40.01 Screw L25X-20.00.03 Wheel Cap M10DIN440R Washer IFP250x50-25x60 Wheel M10DIN125A Washer L13S-21.00.06-1 Bush L13X-20.20.00 Axle L13S-21.20.00 Connecting Rod... -
Page 27: Lavina®13G-X Carriage Parts 2
Handle M8X16DIN912 Screw M5X12DIN6921 Bolt L20GX-23.00.11 Fixator L20GX-23.20.00 Fixator M6X16DIN6921 Bolt L20GX-23.00.01 Flange M6X12ISO7380-1 Screw М6DIN9021 Screw L20GX-23.00.02-1 Axle M8DIN985 Self Locking Nut L13GX20.40.00 Frame 6 LAVINA® 13G-X Control Board Parts Item No. Description Pcs. W4110 Throttle W4313 Hour Meter...
