Advantech IPMI-1000 Startup Manual

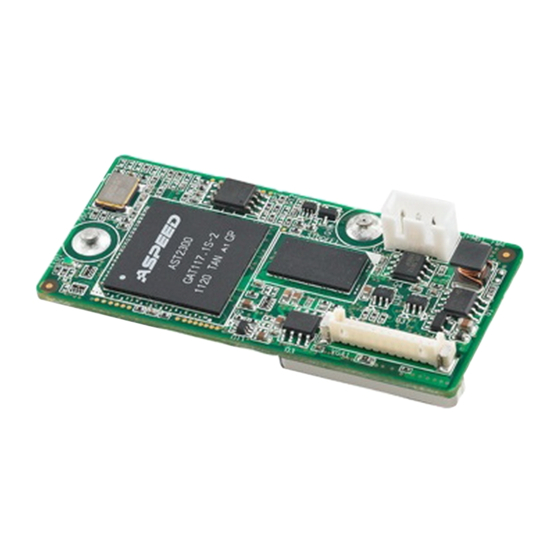

IPMI-1000
IPMI module, AST2300 chipset
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. IPMI-1000 module x 1
2. Startup manual x 1
3. Screw x 2
4. Warranty Card x 1
5. VGA cable x 1
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the IPMI-1000 Series.
Part No. 2006IPM100
Print in China
PN: 20061IPM100
P/N: 19350304A0
P/N: 2190000902
P/N: 1700020805
1st Edition
October 2012
Specifications
General Features
• Out of band (OS independent)
• User management
• Remote control
• System health
• Maintenance
SBC Support List
PPCE-7127G2-00A1E
PCE-5126WG2-00A1E
Note: For more SBC support list, please visit our website.
Mechanical and Environmental
• Dimensions: 68 mm x 31.5 mm
• Power supply type: 5 VSB
• Power requirements: 5 VSB @ 55mA
• Operating temperature: 0 ~ 60° C
• Operating humidity: 60° C @ 85% RH, Non-Condensing
• Storage temperature: -40 ~ 85° C
• Storage humidity: 60° C @ 95% RH, Non-Condensing
• Weight: 0.48 kg
Connectors
There are four connectors on the module and one of them
is used to connect with SBC. The below table lists the func-
tions of these connectors.
Connectors
Label Function
BMC1 IPMI connector
VGA1 VGA1 connector
MRCROSD1 Local media device
IPMB Reserved
IPMI-1000 Startup Manual 1
