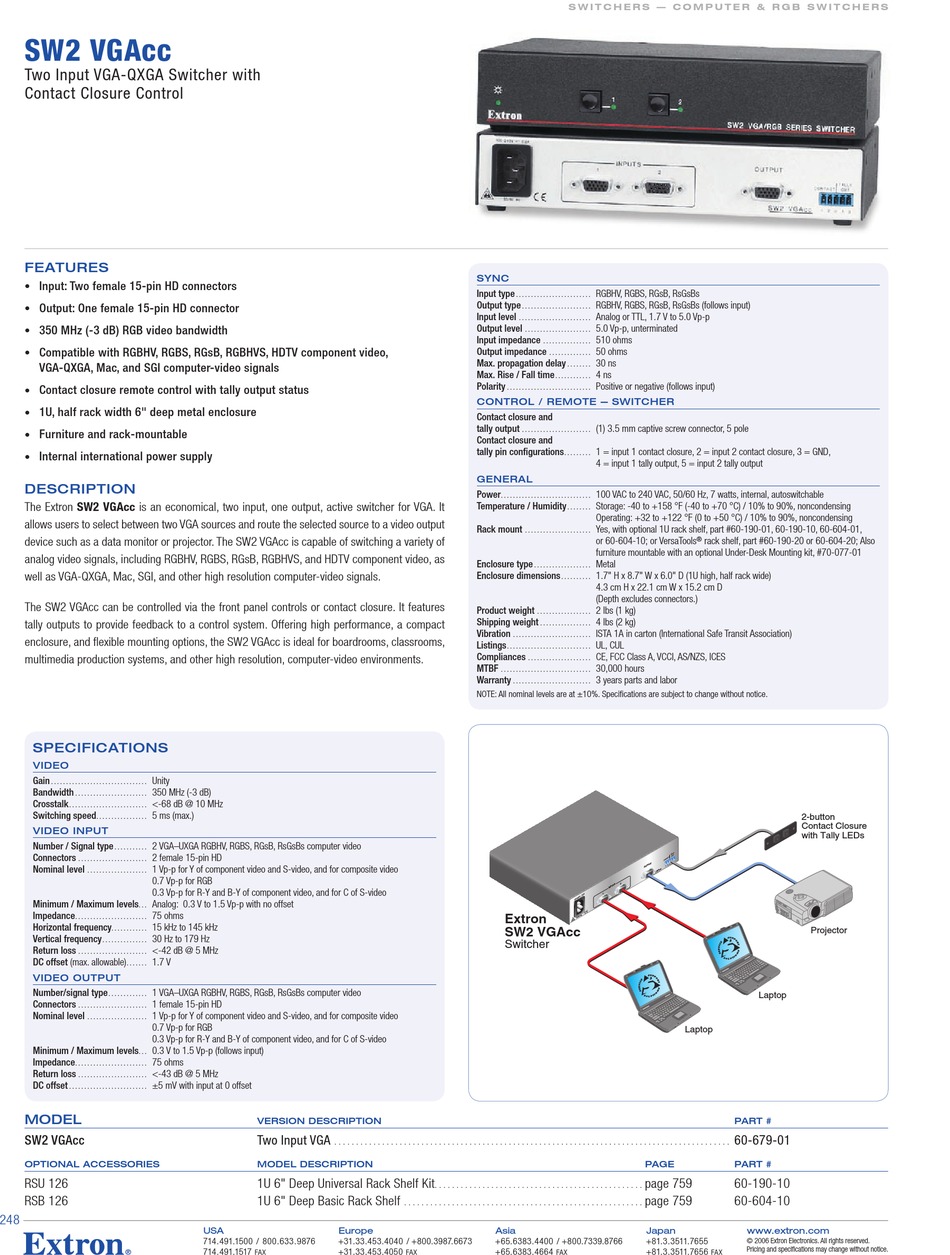

Extron electronics Extron SW 2 VGAcc Specifications

SW2 VGAcc
Two Input VGA-QXGA Switcher with
Contact Closure Control

FeAtureS

Input: Two female 15-pin HD connectors
•
Output: One female 15-pin HD connector
•
350 MHz (-3 dB) RGB video bandwidth
•
Compatible with RGBHV, RGBS, RGsB, RGBHVS, HDTV component video,
•
VGA-QXGA, Mac, and SGI computer-video signals
Contact closure remote control with tally output status
•
1U, half rack width 6" deep metal enclosure
•
Furniture and rack-mountable
•
Internal international power supply
•
deScriPtion
The Extron SW2 VGAcc is an economical, two input, one output, active switcher for VGA. It
allows users to select between two VGA sources and route the selected source to a video output
device such as a data monitor or projector. The SW2 VGAcc is capable of switching a variety of
analog video signals, including RGBHV, RGBS, RGsB, RGBHVS, and HDTV component video, as
well as VGA-QXGA, Mac, SGI, and other high resolution computer-video signals.
The SW2 VGAcc can be controlled via the front panel controls or contact closure. It features
tally outputs to provide feedback to a control system. Offering high performance, a compact
enclosure, and flexible mounting options, the SW2 VGAcc is ideal for boardrooms, classrooms,
multimedia production systems, and other high resolution, computer-video environments.

SPeciFicAtionS

Video

Gain.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unity
Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . 350 MHz (-3 dB)
Crosstalk. . . . . . . . . . . . . . . . . . . . . . . . . . . <-68 dB @ 10 MHz
Switching speed. . . . . . . . . . . . . . . . . . 5 ms (max.)

Video inPut

Number / Signal type.. . . . . . . . . . . 2 VGA–UXGA RGBHV, RGBS, RGsB, RsGsBs computer video
Connectors.. . . . . . . . . . . . . . . . . . . . . . . 2 female 15-pin HD
Nominal level.. . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB
0.3 Vp-p for R-Y and B-Y of component video, and for C of S-video
Minimum / Maximum levels. . . . Analog: 0.3 V to 1.5 Vp-p with no offset
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . 15 kHz to 145 kHz
Vertical frequency. . . . . . . . . . . . . . . . 30 Hz to 179 Hz
Return loss.. . . . . . . . . . . . . . . . . . . . . . . <-42 dB @ 5 MHz
DC offset (max. allowable). . . . . . . . 1.7 V

Video outPut

Number/signal type. . . . . . . . . . . . . . 1 VGA–UXGA RGBHV, RGBS, RGsB, RsGsBs computer video
Connectors.. . . . . . . . . . . . . . . . . . . . . . . 1 female 15-pin HD
Nominal level.. . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB
0.3 Vp-p for R-Y and B-Y of component video, and for C of S-video
Minimum / Maximum levels. . . . 0.3 V to 1.5 Vp-p (follows input)
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Return loss.. . . . . . . . . . . . . . . . . . . . . . . <-43 dB @ 5 MHz
DC offset.. . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mV with input at 0 offset
modeL
SW2 VGAcc

oPtionAL AcceSSorieS

RSU 126
RSB 126
248
VerSion deScriPtion
Two Input VGA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
modeL deScriPtion
1U 6" Deep Universal Rack Shelf Kit
1U 6" Deep Basic Rack Shelf
USA USA europe europe
714.491.1500 / 800.633.9876 714.491.1500 / 800.633.9876 +31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673
714.491.1517 714.491.1517 +31.33.453.4050 +31.33.453.4050
FAX FAX
S w i t c h e r S — c o m p u t e r & r G B S w i t c h e r S
Sync
Input type.. . . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs
Output type.. . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs (follows input)
Input level.. . . . . . . . . . . . . . . . . . . . . . . . Analog or TTL, 1.7 V to 5.0 Vp-p
Output level.. . . . . . . . . . . . . . . . . . . . . . 5.0 Vp-p, unterminated
Input impedance.. . . . . . . . . . . . . . . . 510 ohms
Output impedance.. . . . . . . . . . . . . . 50 ohms
Max. propagation delay.. . . . . . . . 30 ns
Max. Rise / Fall time. . . . . . . . . . . . . 4 ns
Polarity.. . . . . . . . . . . . . . . . . . . . . . . . . . . . Positive or negative (follows input)
controL / remote — Switcher
Contact closure and
tally output.. . . . . . . . . . . . . . . . . . . . . . . (1) 3.5 mm captive screw connector, 5 pole
Contact closure and
tally pin configurations. . . . . . . . . . 1 = input 1 contact closure, 2 = input 2 contact closure, 3 = GND,
GenerAL
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, 7 watts, internal, autoswitchable
Temperature / Humidity. . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount.. . . . . . . . . . . . . . . . . . . . . . Yes, with optional 1U rack shelf, part #60-190-01, 60-190-10, 60-604-01,
Enclosure type.. . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions. . . . . . . . . . . 1.7" H x 8.7" W x 6.0" D (1U high, half rack wide)
Product weight.. . . . . . . . . . . . . . . . . . 2 lbs (1 kg)
Shipping weight.. . . . . . . . . . . . . . . . . 4 lbs (2 kg)
Vibration.. . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL
Compliances.. . . . . . . . . . . . . . . . . . . . . CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty.. . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
0V
0- 24
10
Extron
H z
/6 0
50
SW2 VGAcc
Switcher
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 +65.6383.4664
FAX FAX FAX FAX
4 = input 1 tally output, 5 = input 2 tally output
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
or 60-604-10; or VersaTools rack shelf, part #60-190-20 or 60-604-20; Also
®
furniture mountable with an optional Under-Desk Mounting kit, #70-077-01
4.3 cm H x 22.1 cm W x 15.2 cm D
(Depth excludes connectors.)
LL Y
TA
O UT
T
AC
NT
CO
2
U T 1
T P 2
O U
1
A c c
V G
2
S W
T S 2
P U
IN
1
0. 2A
Laptop
Laptop
PArt #
60-679-01
PAGe PArt #
page 759 60-190-10
page 759 60-604-10
Japan Japan www.extron.com www.extron.com
+81.3.3511.7655 +81.3.3511.7655 © 2006 Extron Electronics. All rights reserved. © 2006 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice. Pricing and specifications may change without notice.
+81.3.3511.7656 +81.3.3511.7656
FAX FAX
2-button
Contact Closure
with Tally LEDs
Projector
mSrP
420
$
mSrP
130
$
60
$
