Extron electronics SW VGA Series Specification

SW VGA Switcher Series
Two, Four, and Six Input VGA and Stereo Audio Switchers

common FeAtureS

Inputs: Two, four, and six input models with 15-pin HD connectors; 3.5 mm stereo
•
mini jacks for audio
Output: One 15-pin HD connector for video; one captive screw connector for audio
•
350 MHz (-3 dB) RGB video bandwidth
•
Compatible with VGA-QXGA and HDTV component video signals
•
Autoswitching capabilities
•
Automatically detects which inputs have an active signal and reports this
•
information through the RS-232 port
RS-232 and contact closure remote control
•
Internal international power supply
•
1U, half rack width metal enclosure
•

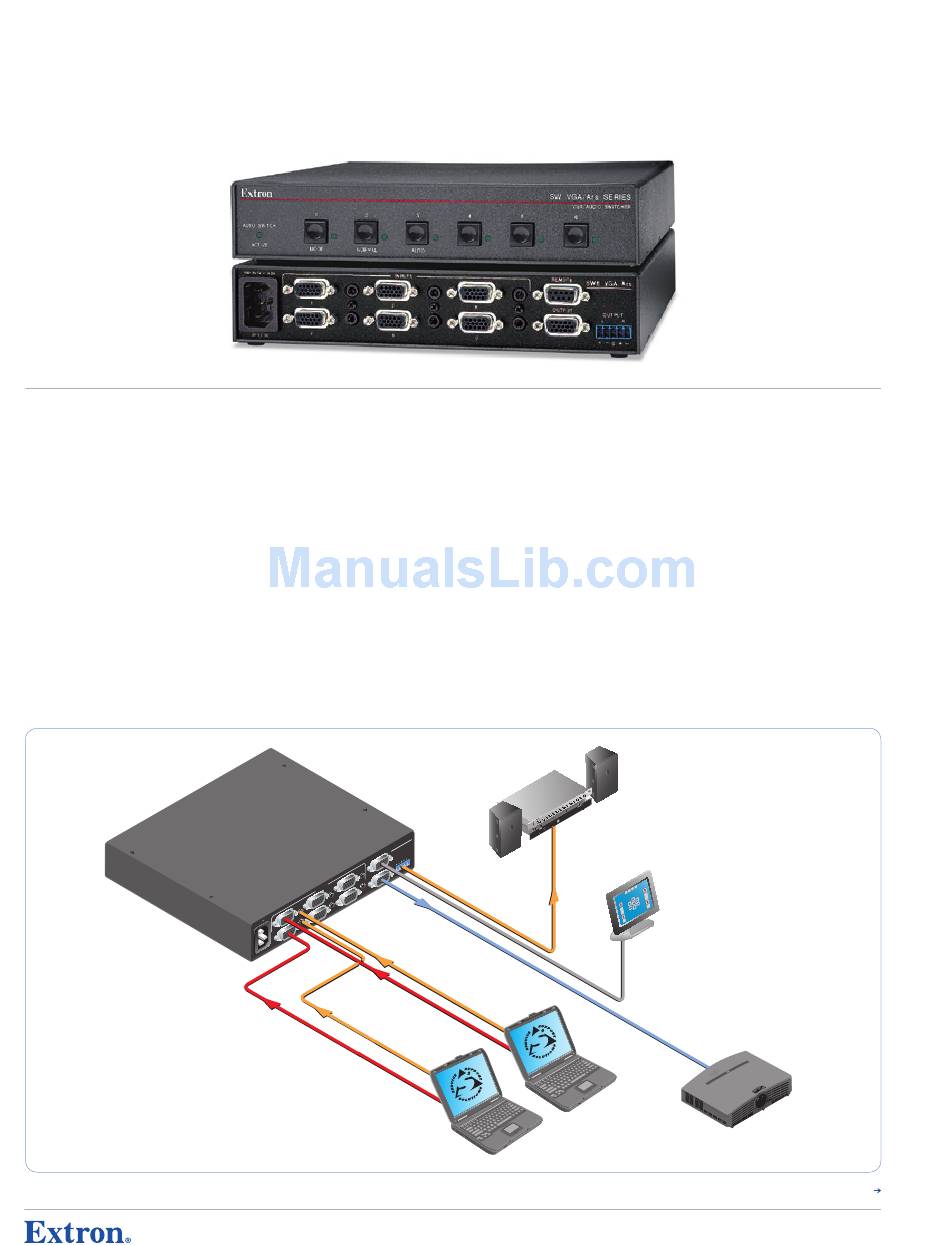

Extron
SW6 VGA Ars
VGA/Audio Switcher
252
s
A r
G A
6 V
S W
T E
M O
R E U T
T P
O U
U T R
T P
O U L
5
T S
P U
IN
6
3
4
1
0 .2 A
4 0 V
0 -2
1 0
2
H z
-6 0
5 0
USA West USA West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
deScriPtion
The Extron SW VGA Series are active switchers utilizing 15-pin HD connectors. There are six
switchers in the series. The SW2 VGArs, SW4 VGArs, and SW6 VGArs are two, four, and six
input, one output switchers that allow multiple VGA-QXGA computer inputs to be switched to
one compatible display. The SW2 VGA Ars, SW4 VGA Ars, and SW6 VGA Ars are also two,
four, and six input, one output VGA and audio switchers, but also include several audio features
such as active PC audio interfacing which accepts unbalanced computer-generated stereo
audio input signals on 3.5 mm stereo mini jacks and outputs balanced line level stereo audio
on a captive screw connector.
The SW VGA switchers are user-configurable for manual or autoswitching modes. The
autoswitch function can be enabled or disabled via the front panel buttons. Autoswitching allows
any input of the switcher to be selected automatically when the switcher detects a sync signal.
The 9-pin female D connector enables RS-232 control, as well as contact closure control, and
is compatible with the Extron KP 6 Keypad Remote Control and the Extron IR 102 Kit IR remote.
All of the SW VGA models are 1U, half rack width metal enclosures that will fit into an optional
Extron 1U Universal Rack Shelf Kit.
APA 754 R
AMP LIFIE
O POW ER
AUDI
2
CH
CH 1
ECT
CLIP PROT Sound System
NOR AL M
32 RS-2 SIGN
L
FRON T PANE OUT
LOCK
Laptop
Laptop
USA east USA east
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
c o m p u t e r & r G B S w I t c h e r S
Control
System
Projector
Continued
