Installation and Operation, cont'd

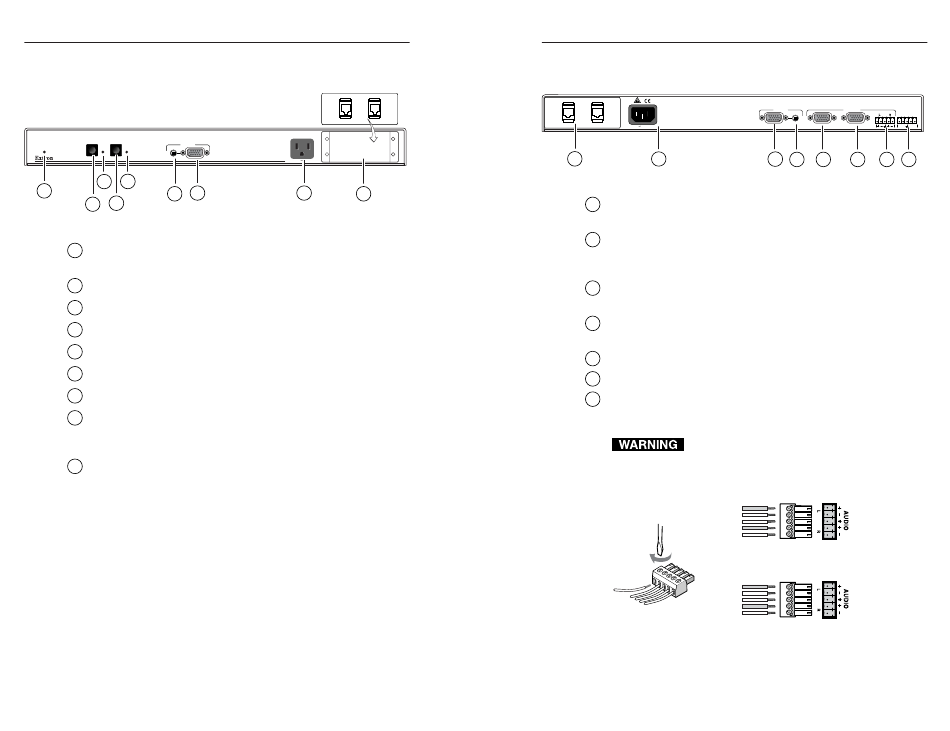

Front Panel Features

AUTO SWITCH
INPUT 2
1
2
ACTIVE
3
5
1
7
6
4
2
Auto-switching indicator LED — This LED lights when the
1
auto-switching feature is active.
Input 1 selection switch — Selects input 1
2
Input 1 indicator LED — This lights when input 1 is active.
3
Input 2 selection switch — Selects input 2
4
Input 2 indicator LED — This lights when input 2 is active.
5
Input 2 audio — 3.5 mm female audio jack
6
Input 2 video — 15-pin HD female VGA connector
7
AC power output connector — An unswitched standard IEC AC
8
power connector allows you to connect a peripheral device that
requires power.
Optional architectural adapter plates — Up to two adapter
9
plates for pass-through audio/video connections can be
attached at one time to the switcher. See the "Installing Adapter
Plates" section in this chapter for installation instructions.
www.camboard.de
2-8
SW2 VGA DA2 AF R • Installation and Operation
CAMBOARD Electronics
UNSWITCHED
SW2 VGA DA2 AF R
100-240
0.5A MAX.
8
9
Tel. 07131 911201
Fax 07131 911203

Rear Panel Features

100-240
50/60 Hz 0.5A
1
2
Cable access opening — Cables attached to the A/V pass-
1
through architectural adapter plates exit the enclosure here.
AC power input connector — Connect a standard IEC AC
2
power cord here for power input (100VAC to 120VAC, 50/60
Hz).
Input 1 video — 15-pin HD female VGA connector (Input 2
3
video is located on the front panel.)
Input 1 audio — 3.5 mm female audio jack (Input 2 audio is
4
located on the front panel.)
Output A — 15-pin HD female VGA connector
5
Output B — 15-pin HD female VGA connector
6
Stereo audio output connector — Balanced or unbalanced audio
7
can be output via this 3.5 mm, 5-pole captive screw connector.
The audio output cable should be wired as shown below.
Connect the sleeve to ground (GND). Connecting
the sleeve to a negative (-) terminal will damage the
audio output circuits.
Tip
See Warning
Sleeve (s)
Tip
See Warning
Tip
Ring
Sleeve (s)
Tip
Ring
Wiring the audio output connector
ce-info@camboard.de
SW2 VGA DA2 AF R • Installation and Operation
INPUT 1
OUTPUTS
AS/REMOTE
A
B
1 2
A S
3
4
5
6
7
8
Unbalanced Output
Balanced Output
2-9
