UNO-P166
6-port Isolated RS-232/422/485, 2-port IRIG-B, PCI-104 Card for UNO-4672
Packing List
Before installation, please make sure that you have:
• UNO-P166 plug in card
• Nameplate for integration
• Front and Rear brackets
• 11 x hex metal posts
• Driver CD
If anything is missing or damaged, contact your
distributor or sales representative immediately
Overview
UNO-P166 can add 6 more isolated serial ports and
2 IRIG-B ports for UNO-4672, it supports the fol-
lowing specifications:
• 6-port RS-232/422/485
• Automatic RS-485 data flow control
• 2,500 VDC EFT Protection
• 2,500 VDC Isolation Protection
• IRQ: All use the same IRQ assigned by PCI Bus
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: None, Even, Odd
• Baud-rate (bps): RS-232 : 50~115.2 k
RS-422/485 : 50~921.6 k
• Transmission Distance: 1000 m (RS-422/485)
• Data Signals:
TxD, RxD, RTS, CTS, GND for RS-232
Data+, Data-, GND for RS-485
Tx+, Tx-, Rx+, Rx- for RS-422
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for UNO-P166
Part No. 2003016600
1
Startup Manual
IRIG-B Information
IRIG Time Code Input
• Connectors: Female BNC-connector, male 9-pole
D-Sub connector
• Supported Formats: IRIG-B00X according to
IRIG STANDARD 200-04, 200-98
• Input Signal: Unmodulated (DC level shift) IRIG-
B, input insulated by photocoupler
IRIG Time Code Decoding
• Message syntax: QQQHHMMSS (year, day, hour,
minute & second)
• Resolution time: 1s
• Status info: 1 status LEDs for indicators

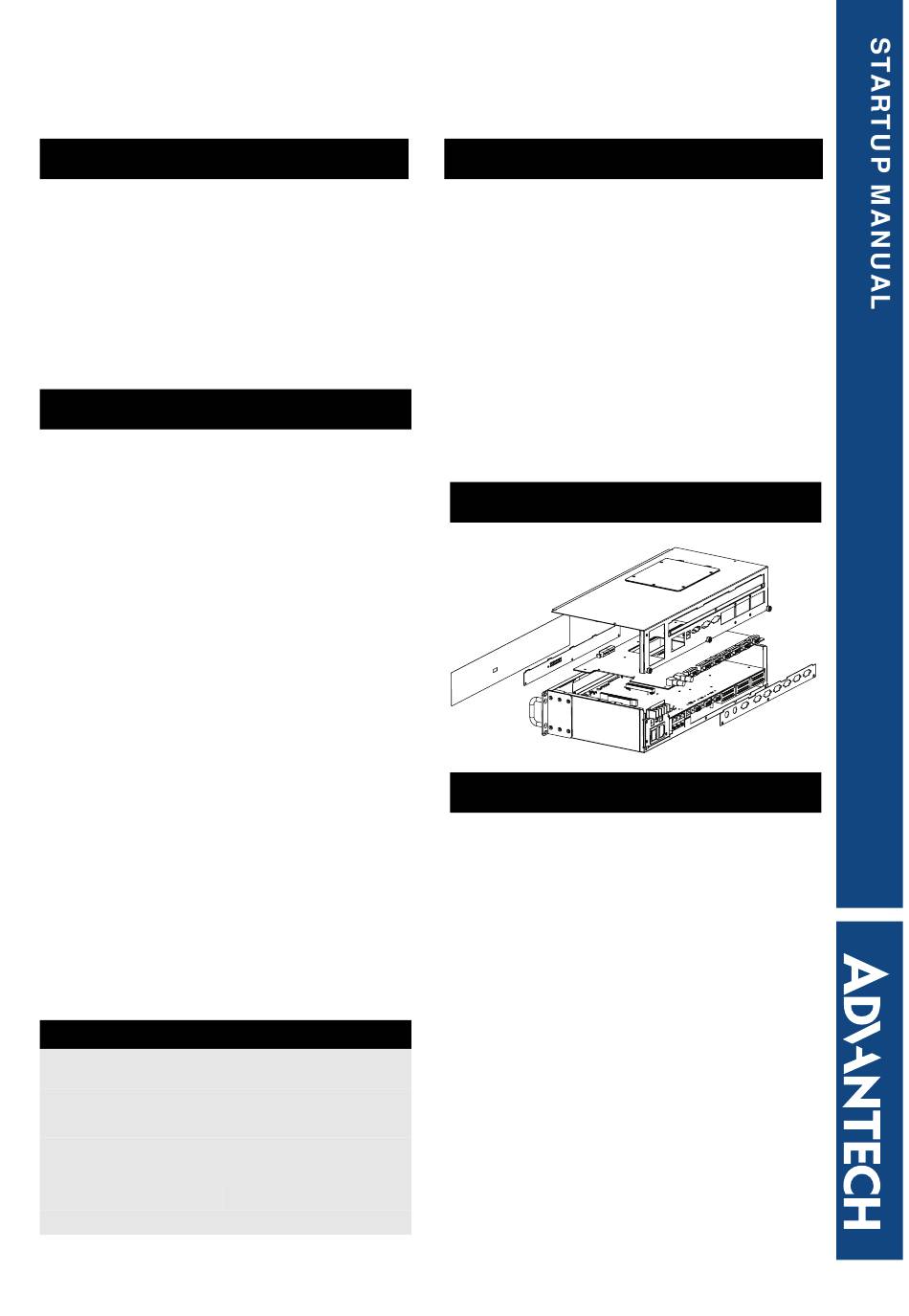

Diagram
Installation
Follow these steps to integrate into UNO-4672:
1. Please refer to the Chapter 3 of UNO-4672's
user manual to remove the L-shaped cover.
2. Remove each pair of hex nuts of the 8xCOM port
3. Refer to the 'COM port Configuration' section on
next page to set the configuration.
4. Refer to the screw hole of UNO-P166 to unscrew
the related screws on UNO-4672 and build the
provided 11x hex metal post on the same posi-
tion.
5. Plug UNO-P166 into UNO-4672 and fix it by the
screws you just get down on step 4.
6. Refer to the above diagram, replace the front/rear
bracket and nameplate to fit the UNO-P166's I/O
and LEDs
7. Put the L-shape cover back and fix it, then screw
back the hex nuts you get down on step 2
1st Edition
8. As for the software driver, please refer to the
April 2011
companion driver CD.
