The following figures shows the drive numbering sequence for the Remote Site (2 SSD and 4 HDD),
Small (2 SSD and 8 HDD), Medium or Large (4 SSD and 20 HDD), and the Small (5 SSD), Medium (10
SSD), and Large, All Flash (14 SSD) models.
The drive labels show the media type (SSD or HDD), interface (such as SCSI or SATA), and capacity
of the drive. If a drive fails or is reported as failing, contact Customer Support to obtain a replacement
drive of the same type, size, and speed.

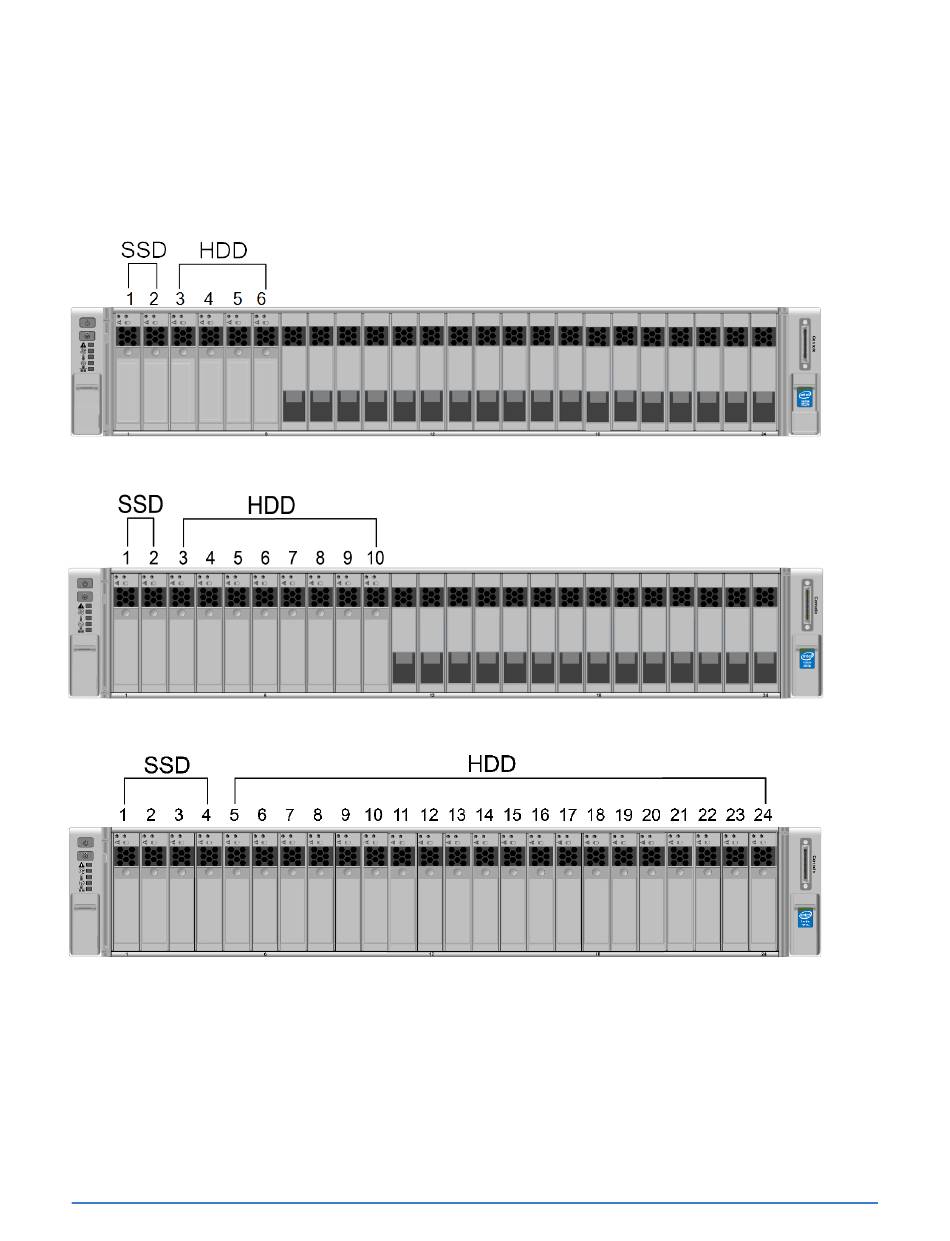

Figure 10: Drive numbering for a Remote Site model
Figure 11: Drive numbering for Small models
Figure 12: Drive numbering for Medium and Large models
