INSTALLATION INSTRUCTIONS

HEATER INSTALLATION INSTRUCTIONS

WARNING
Installation must be done by a qualified service person.
This appliance must be installed and used in accordance
with local codes, or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas
and Propane Installation Code, CSA B149.1, or Propane
Storage and Handling Code, B149.2 and must meet all the
requirements stipulated in the "Installation Requirements"
section of this manual.
CAUTION
Please see specifications for the weight of the Heater. The
installer of the Cobalt Gas Heaters must comply with all
relevant State Occupational Health & Safety Regulations.

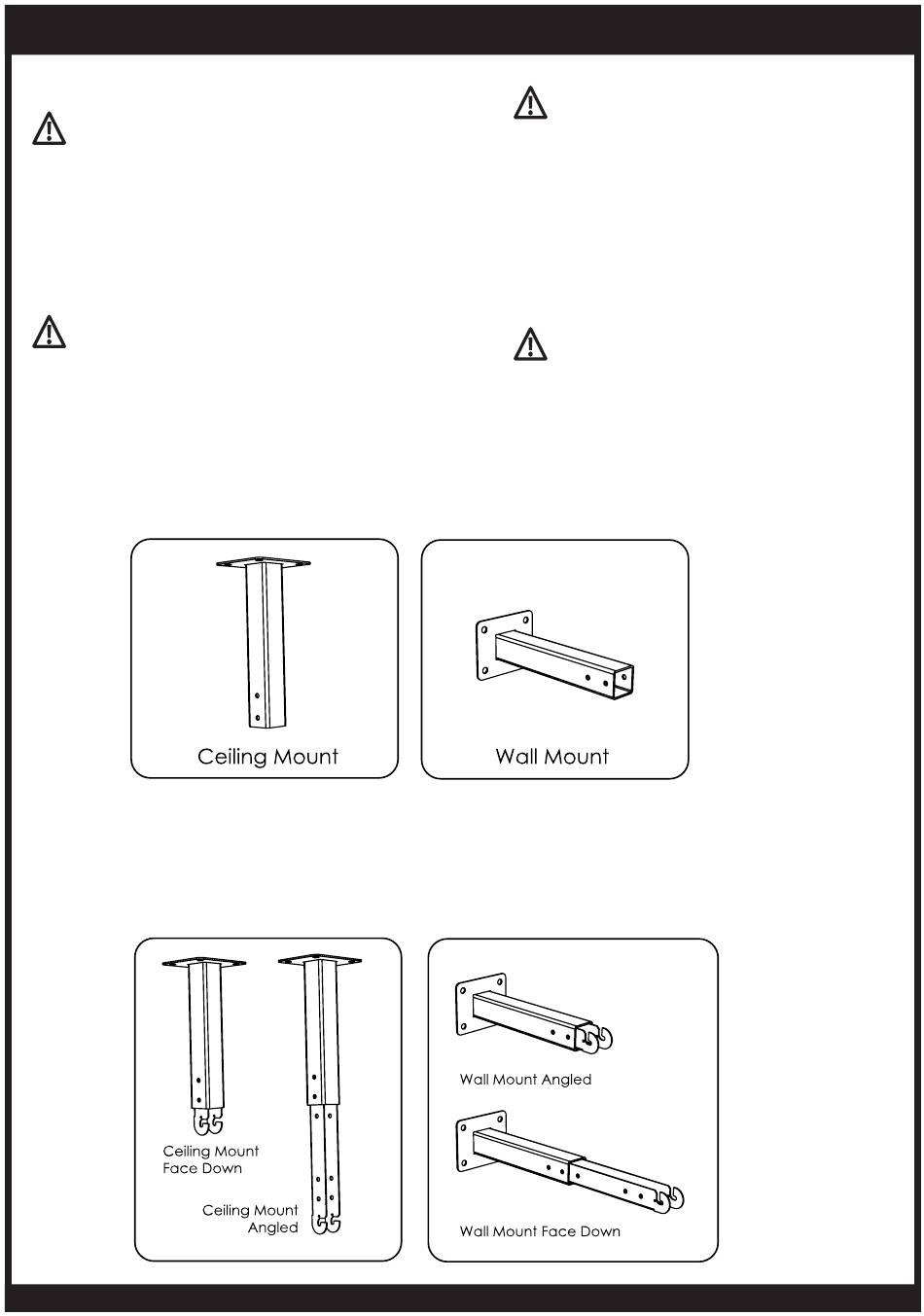

STEP 1:
Attach mounting bracket to ceiling or wall using fasteners appropriate for
the surface. Ensure the bracket is firmly secured with fasteners in all 4 holes
before proceeding.
STEP 2:
Assemble extension arm to the bracket.
Position of the extension arm must be set as shown below for face down
or angled mounting. These positions must be used to ensure correct
clearance of the heater from combustible materials. Secure with 2x bolts
and nuts supplied.
8
When mounting the heater, ensure the anchoring
to the structure is of sufficient strength, quality and
workmanship to support the weight of the heater
and any other load that could be applied to the
fixture.
The Heater shall be firmly and securely attached
to the wall. For Brick and masonry , use M8 "Flush
Head" "Dynabolts" (or equivalent). For Wood /
Timber fixtures , use suitable screw fixings no less
than 60mm in length.
Heater must be mounted horizontal in the
lengthwise direction.
Heater must be mounted in a fixed position
independent of gas and electrical supply lines.
