INSTALLATION INSTRUCTIONS
IMPORTANT

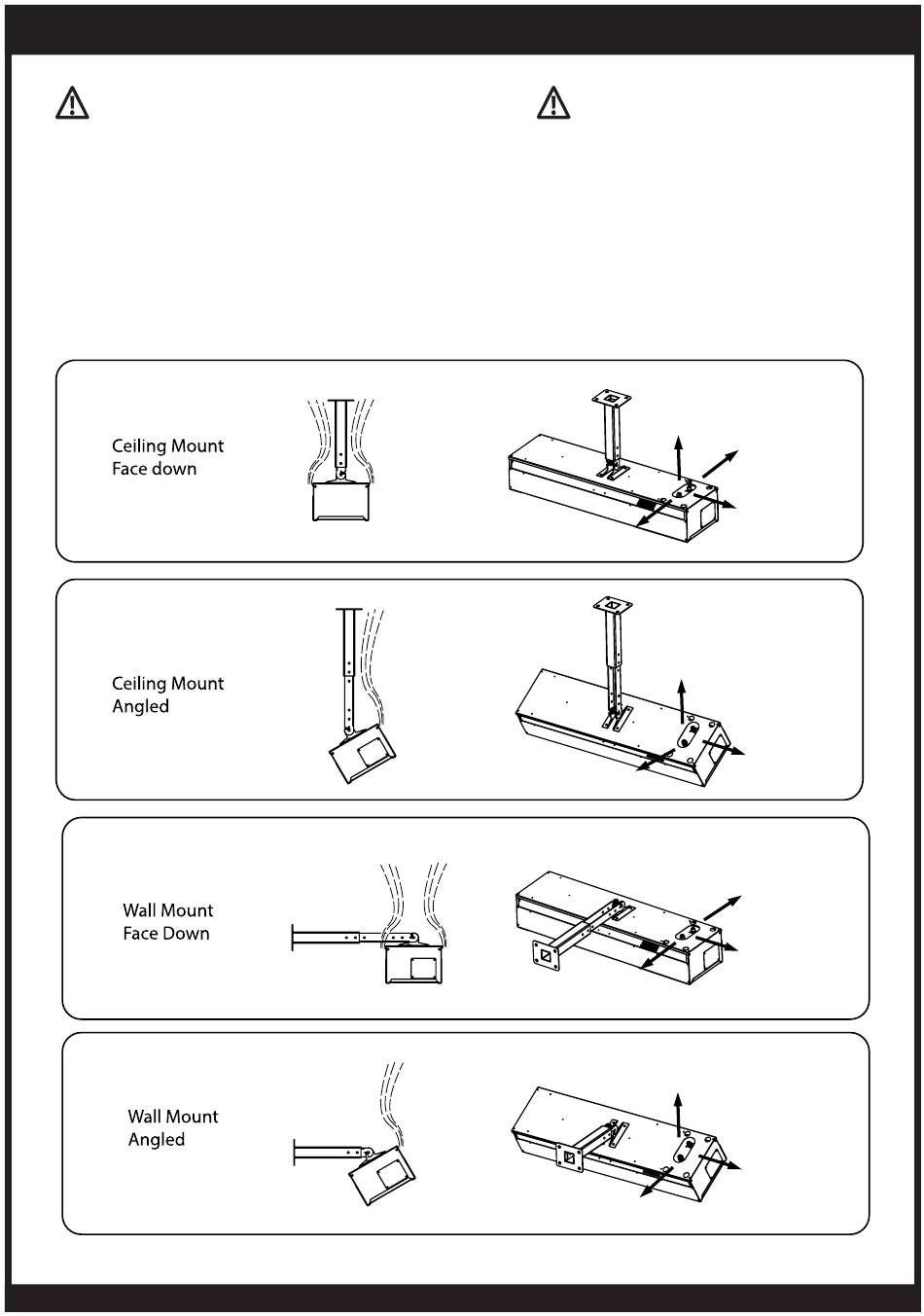

The gas hose & electrical supply cord must be kept away
from combustion gases of the heater.
The below diagrams illustrate where combustion gasses
exit the heater for each heater mounting position, and what
positions the gas hose and electrical supply cord must exit
the heater to ensure they are kept away from combustion
gasses.
The installer must ensure the gas hose and electrical supply
cord cannot come into contact with
combustion gasses.
Ceiling Mount
Ceiling Mount
Ceiling Mount
Ceiling Mount
Face down
Face down
Face down
Face down
Ceiling Mount
Ceiling Mount
Ceiling Mount
Ceiling Mount
Angled
Angled
Angled
Angled
Wall Mount
Wall Mount
Wall Mount
Wall Mount
Face Down
Face Down
Face Down
Face Down
Wall Mount
Wall Mount
Wall Mount
Wall Mount
Angled
Angled
Angled
Angled
www.bromic.com/heating
CONTINUED...
IMPORTANT
The gas hose & electrical supply cord must be
kept away from heater surfaces and mounting
bracket.
When the heater is on the heater surfaces and
mounting bracket reach high temperatures.
The installer must ensure the gas hose and
electrical supply cord cannot come into contact
with the heater surfaces and mounting bracket.
