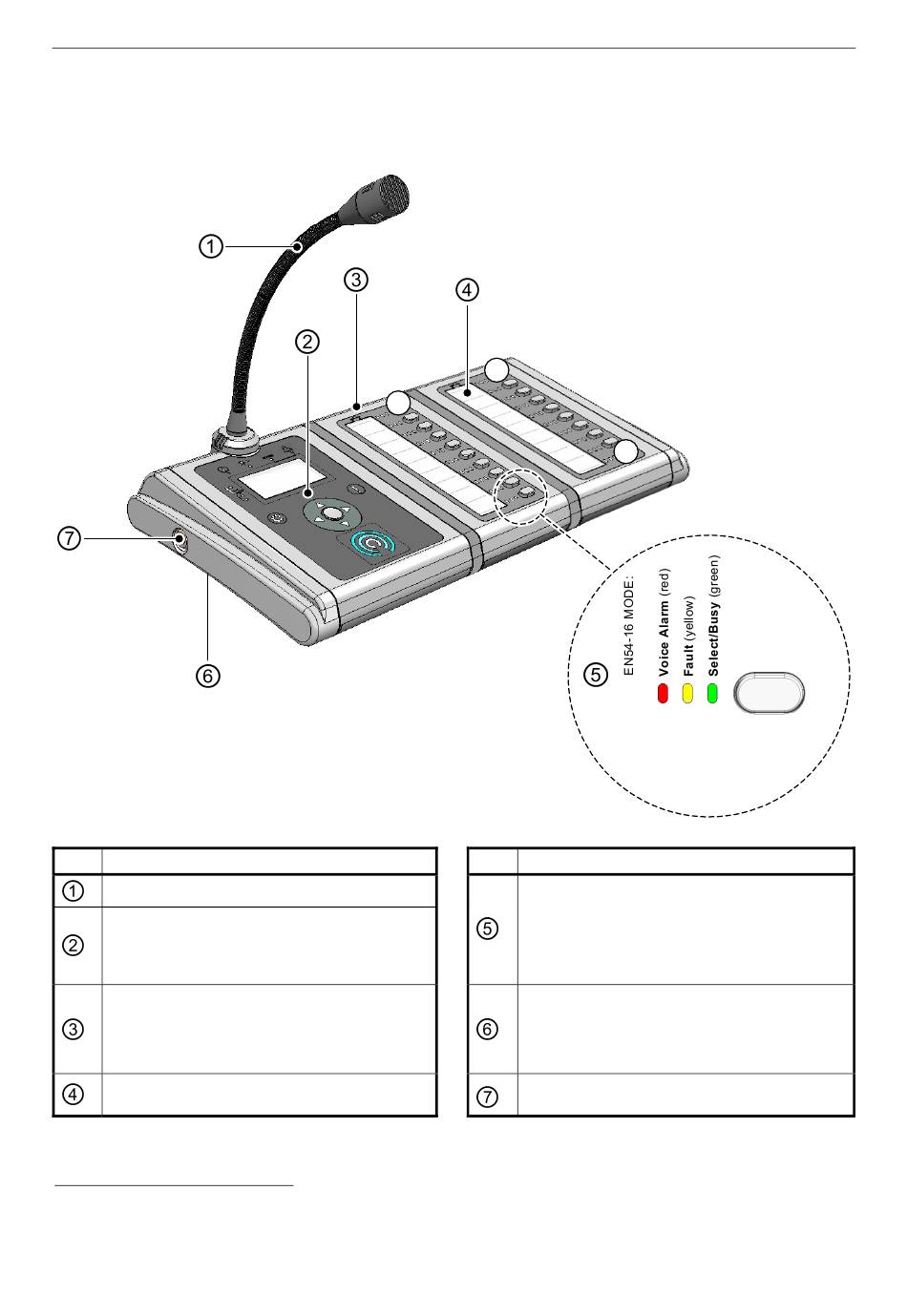

Controls and Indicators

Item Description
Gooseneck microphone
Main user interface (see details below)
MPX10 10-button Expansion Module
•
MPS01: none fitted
•
MPS10: one fitted
•
MPS20: two fitted
Function button identification label (under
plastic cover)
1
The available functions depend on the PA/VA system that hosts the microphone.
2
Refer to the application specific documentation for other indication modes.
3
Special variants are available to order, with more MPX10 button expansion modules and/or button module to the left of the gooseneck microphone and/or
to the right.
MPS-Series – Installation Guide
B11
B01
Item
3
:
U-0664-0174.doc – Issue: 07 complete, approved
Page 5 of 24
MPS20
(20-BUTTON MICROPHONE)
B20
LEDs
FUNCTION BUTTON
(B01 TO B20)
Description
1
Function button and indicators.
EN 54-16 indication mode
•
Red LED = Voice Alarm
•
Yellow LED = Fault
•
Green LED = Select/Busy
Built-in loudspeaker (under the unit)
Emergency mode keyswitch
BUTTON
2
:
