5

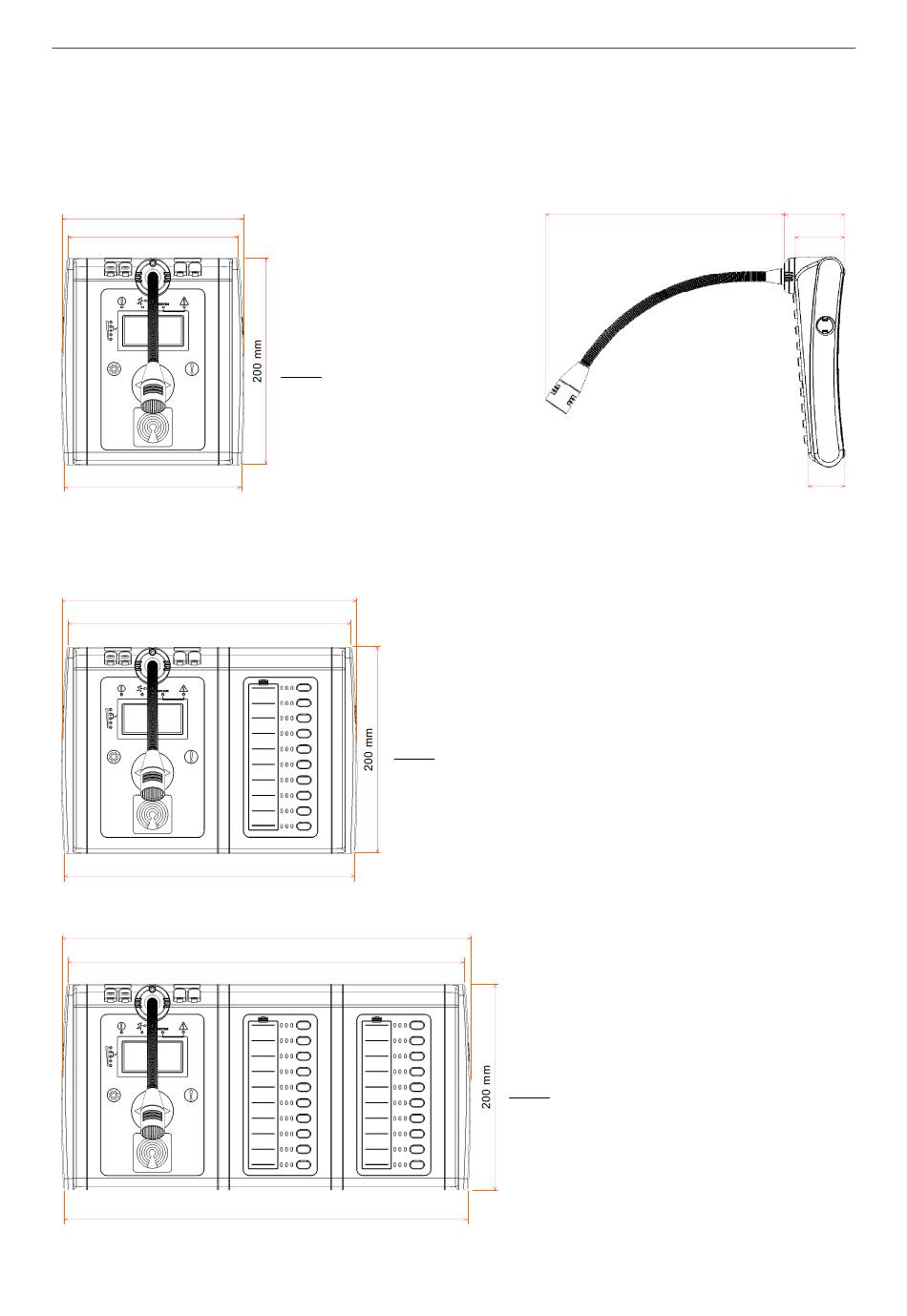

Mechanical Dimensions
Figure 18
MPS dimensions
175 mm
165 mm
171 mm
Note: Increase the width by a further 110 mm for each MPX10
Expansion Module. See examples below for MPS10 and
MPS20 .
285 mm
275 mm
281 mm
MPS-Series – Installation Guide
MPS01
MPS10
395 mm
385 mm
391 mm
U-0664-0174.doc – Issue: 07 complete, approved
MPS20
Page 22 of 24
~ 260 mm (maximum)
58 mm
48.5 mm
35 mm
