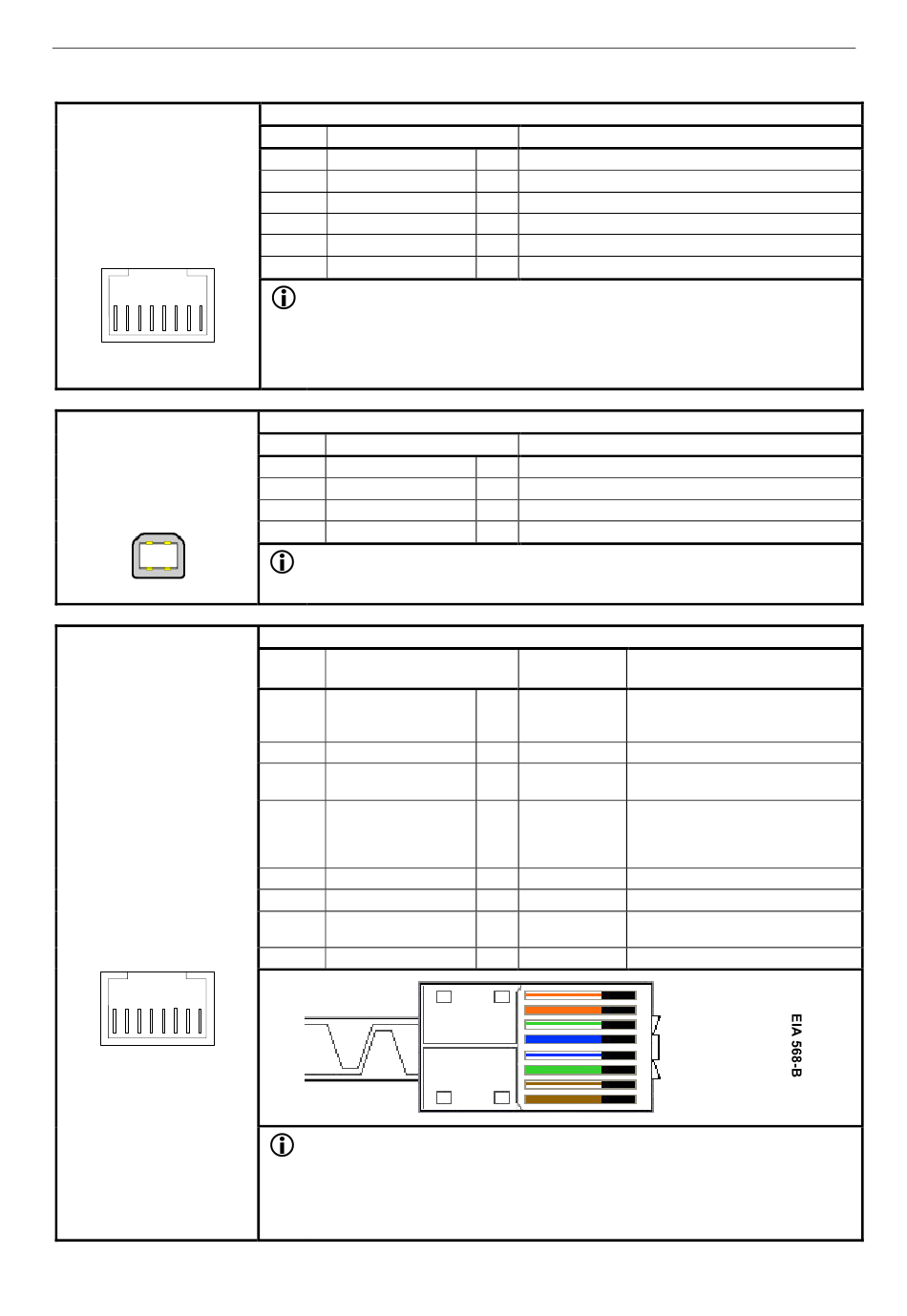

ASL INTERCOM MPS Series Installation Manual page 19

①
ETHERNET
Ethernet Port
8 7 6 5 4 3 2 1
②
USB
USB Port
2 1
3 4
③
ROUTER MIC AUX PORT
ASL Aux. Microphone
Port (Listen-in and
Hardware Bypass
PTT+Speak-Now)
8 7 6 5 4 3 2 1
MPS-Series – Installation Guide
RJ45 Socket
Pin No. Signal
1 TRANSMIT+
2 TRANSMIT −
3 RECEIVE+
4 and 5 DC+
6 RECEIVE −
7 and 8 DC −
•
PoE (Power over Ethernet): see Figure 16 (page 17) for required link settings
•
The Ethernet port can be used for digital audio I/O and for configuration purposes
•
Ethernet and PoE connections do not provide EN 54-16 compliance
•
ASL protocols supported over IP: ASL Serial, TRL (Transactionless) and Paging (DMS).
The protocol is defined by the host (if any), and the MPS will automatically discover the
protocol upon connection.
USB Type B
Pin No. Signal
1 VBUS
2 D −
3 D+
4 GND
•
USB port can be used for digital audio I/O and for configuration purposes
•
Refer to ASL for software compatibility details
RJ45 Socket
Pin No. Signal
1 PTT-2+
2 PTT-1+
3 LISTEN-IN+
4 SPEAK NOW LED-1
5 SPEAK NOW LED-2
LISTEN-IN −
6
7 PTT GND
8 PTT GND
•
Used to provide hardware bypass and listen-in functions
•
Hardware bypass is provided on inputs 1 and 2 of ASL Voice Alarm Routers
•
Used in addition to one or both standard ASL microphone ROUTER 1 and ROUTER 2
ports below
•
Routers with All Call LED connection: a pull up resistor (10 k Ω / 0.25 W) to +V supply is
required in order to suppress the All Call LED fault
