ASL INTERCOM MPS Series Installation Manual page 11

3.3.2 Wall and Desk/Console Mounting Installation Procedure
To prevent injury, this microphone must be securely attached to the wall/desk in accordance with these
!
!
installation instructions.
1. Connect the installation wiring to the wall socket connector(s) to suit the installation requirements of
the specific location. Refer to Section "4 Connections" (page 18) for connection details.

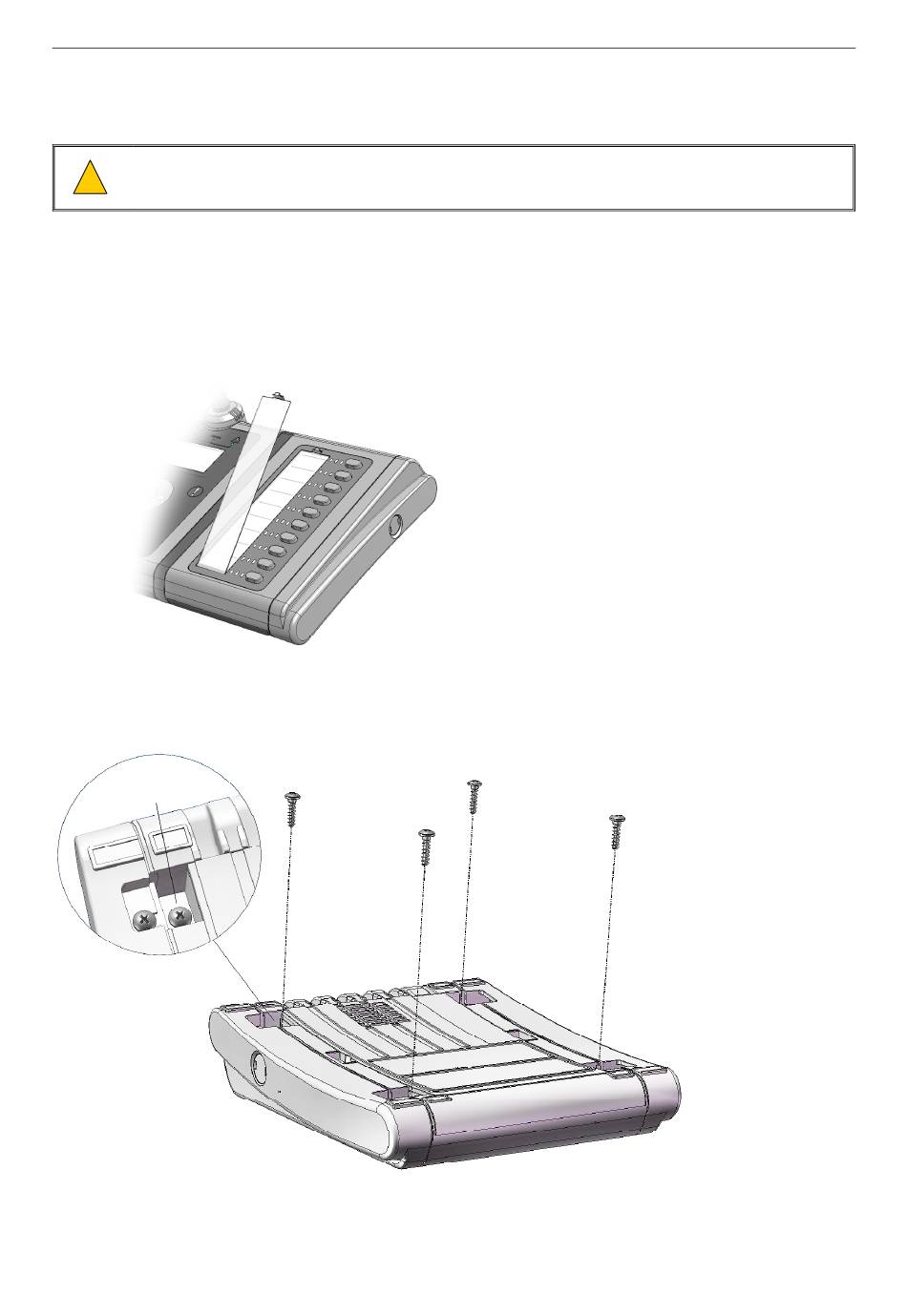

2. Insert the completed button identification label into the label slot as required; see Figure 6 (page 11).
Figure 6 Fitting the zone identification label
3. Remove the four Torx screws that retain the case bottom half using a T20 driver (do not remove the
end cheeks' fixing screws); see Figure 7 (page 11).
Figure 7 Removing the case bottom half
REMOVE THIS
TORX SCREW (T20)
MPS-Series – Installation Guide
1)
2)
3)
(MPS10 shown as example)
U-0664-0174.doc – Issue: 07 complete, approved
Page 11 of 24
Remove the label protection cover by pressing in
on the plastic clip and lifting the cover off.
Fit the zone identification label into the slot.
Fit the label protection cover back in place.
FOR MICROPHONES WITH
MPX10 10-BUTTON EXPANSION
MODULE(S), REMOVE THE FOUR
TORX SCREWS THAT RETAIN
THE CASE BOTTOM HALF OF
EACH MPX10
