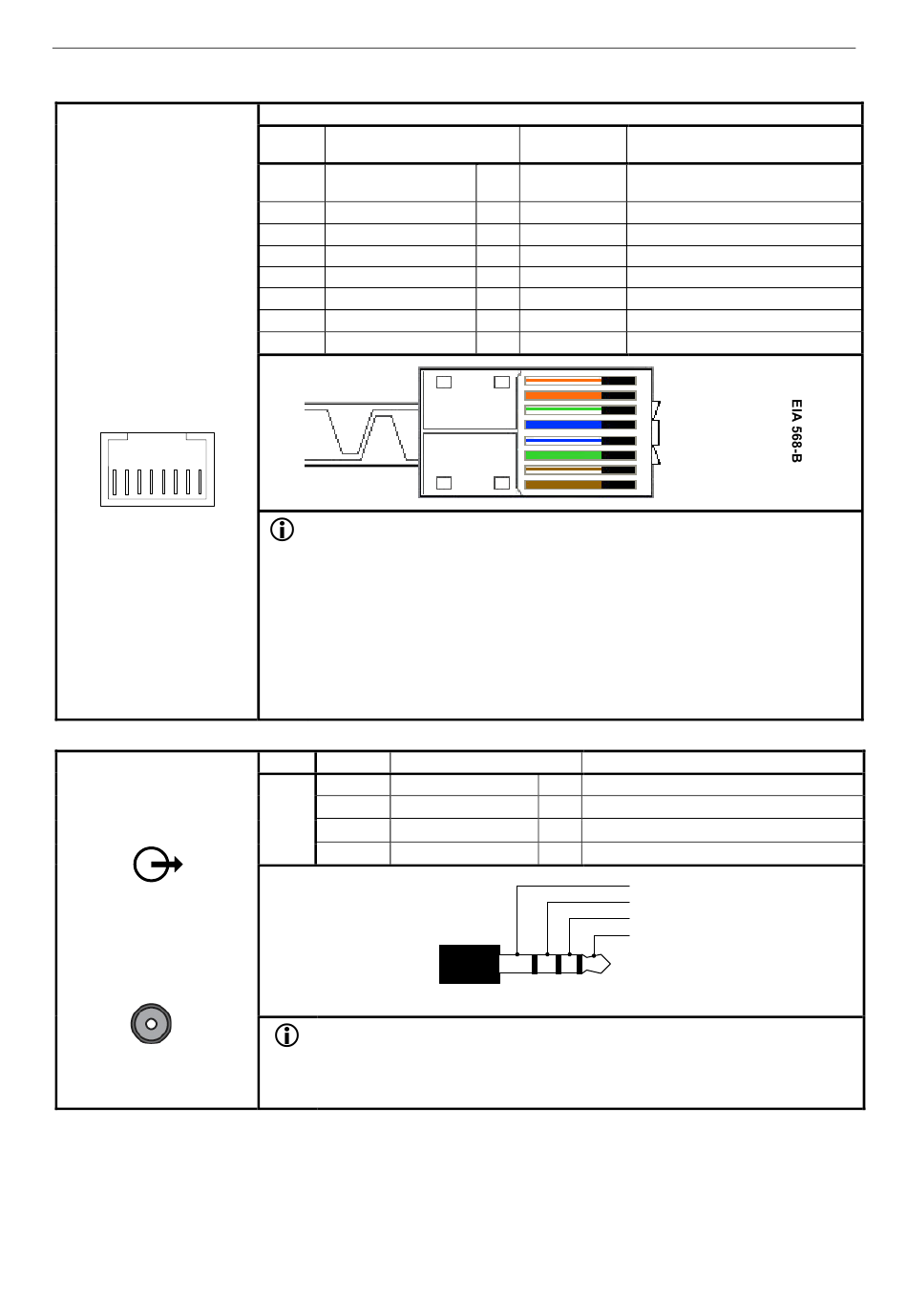

ASL INTERCOM MPS Series Installation Manual page 20

④ ⑤
ROUTER 1 MIC PORT and
ROUTER 2 MIC PORT
ASL Microphone Port
8 7 6 5 4 3 2 1
⑥
Audio
Output/Speaker/Headset
Microphone
3.5 mm jack
MPS-Series – Installation Guide
RJ45 Socket
Pin No. Signal
1 AUDIO+
2 AUDIO −
3 DATA DXP
4 +SUPPLY
5 +SUPPLY
6 DATA DXN
7 0V SUPPLY
8 0V SUPPLY
1) ROUTER 1 port is used for connection to the Router as standard.
Use ROUTER 2 port if the MPS firmware is V1.5.20 or earlier.
2) ROUTER 2 port is used for connection to the 'B' Router in a dual interface connection
with 'A' and 'B' Routers.
3) ASL protocols supported on the serial connection: ASL Serial, Paging (DMS) and
Console (ACU). The protocol is defined by the host, and the MPS will automatically
discover the protocol upon connection.
4) Emergency Microphones that are used as location for display of mandatory EN 54-16
indications and controls should have dual power supply: one power supply connected
to ROUTER 1 port, and the other power supply to ROUTER 2 port.
5) DC power supply via Router connections: see Figure 16 (page 17) for required link
settings
Plug Contact Signal
Tip LEFT CHANNEL
Ring 1 RIGHT CHANNEL
TRRS
Ring 2 GROUND
Sleeve MIC IN
1) TRRS plug: a headset with boom microphone can be connected for stereo wired
mono audio output plus a microphone input
2) Headset microphone should not be used in emergency mode.
3) Inserting a connector to the audio output jack will mute the built-in speaker for listen-
in and message preview functions – The fault beeper will not be affected
U-0664-0174.doc – Issue: 07 complete, approved
Page 20 of 24
CAT5 Cable
(EIA 568-B)
O/P White/Orange
O/P Orange
− White/Green
I/P Blue
I/P White /Blue
− Green
− White/Brown
− Brown
Description
O/P Unbalanced stereo left channel output
O/P Unbalanced stereo right channel output
− Ground
I/P Headset boom microphone input
TRRS JACK PLUG
Description
Balanced audio output
(+ve / 0 dBu nominal / 220 Ω )
Same as above, but -ve
RS485 Data+ (19200 baud)
+V supply input (15 to 40 V DC)
+V supply input (15 to 40 V DC)
RS485 Data- (19200 baud)
0 V supply
0 V supply
1 Orange/White
2 Orange
3 Green/White
Blue
4
5 Blue/White
Green
6
Brown/White
7
8 Brown
SLEEVE
RING 2
RING 1
TIP
