ASL INTERCOM MPS Series Installation Manual page 14

Note that if fixing the microphone to a flat desk or console, it is suggested that the alternative drilling
centres shown in Figure 11 (page 14), and that the wall bracket (and R/H bracket if used) be rotated
by 180 degrees in order to impart an aesthetically pleasing slant to the mounted unit.

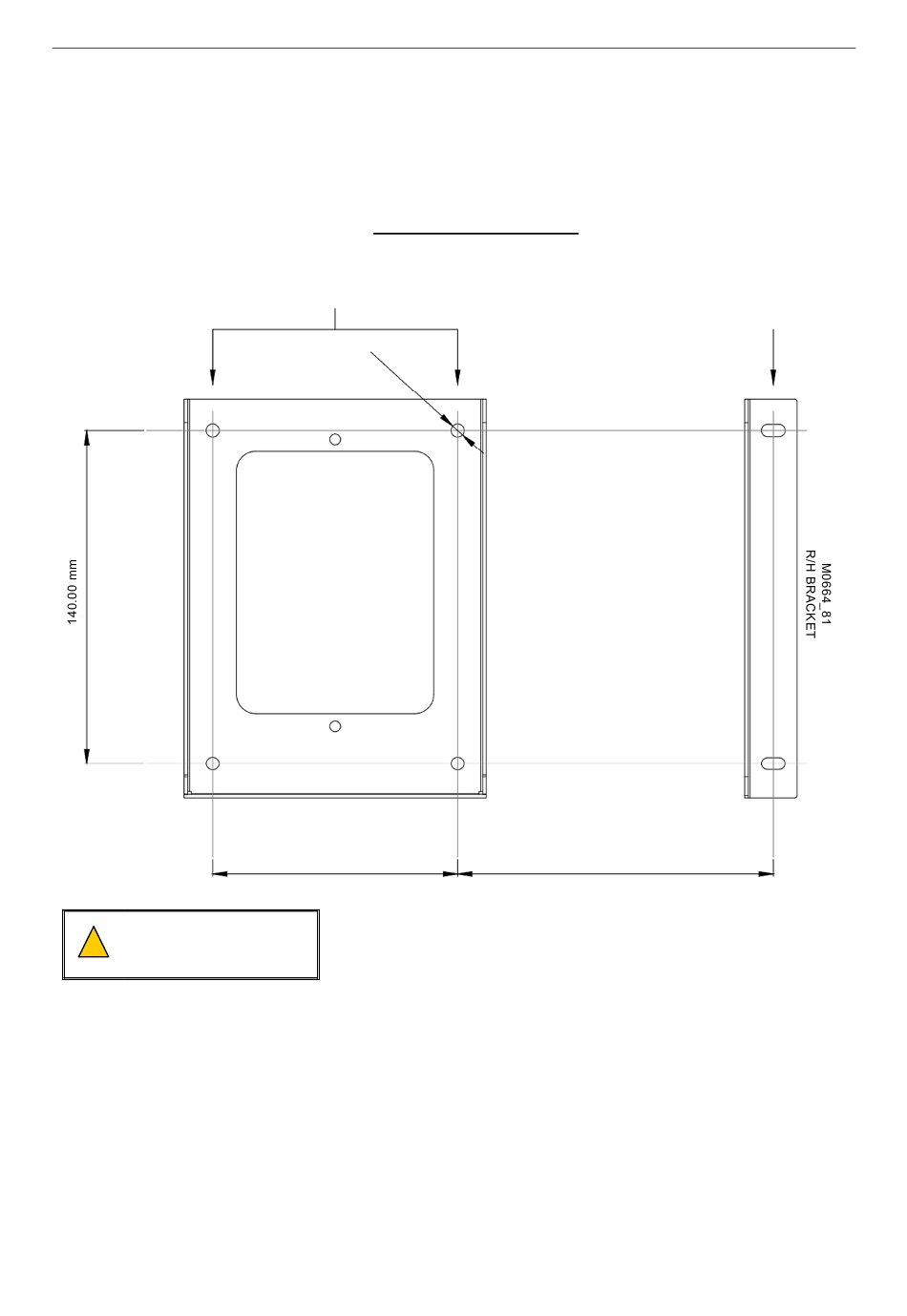

Figure 11 Desk/Console-mounting: mounting hole and Right-Hand Side Bracket position
M0664_80 WALL-MOUNT BRACKET
DIAMETER=5.50 mm
Mount the MPS microphone
!
at eye height for best viewing
!
angle of the LCD display.
MPS-Series – Installation Guide
DESK/CONSOLE-MOUNTING
DRILLING CENTRES
M0664_80
WALL BRACKET
102.80 mm
INCREASE THIS DISTANCE BY A FURTHER 110 mm FOR EACH
ADDITIONAL MPX10 10-BUTTON EXPANSION MODULE (e.g. FOR
U-0664-0174.doc – Issue: 07 complete, approved
Page 14 of 24
ADDITIONAL PAIR OF HOLES REQUIRED
WHEN MOUNTING MICROPHONES WITH
MPX10 10-BUTTON EXPANSION MODULE(S)
USING A M0664_81 RIGHT-HAND BRACKET
132.50 mm
THIS DISTANCE IS CORRECT
FOR MOUNTING A MPS10 UNIT.
A MPS20 THIS DISTANCE WOULD BE 242.50 mm)
