14.
Fist microphone: fix the fist microphone retaining clip (supplied) to the wall next to the microphone
case.
15.
Gooseneck microphone: fit the foam windshield to the microphone capsule housing; see Figure 14
(page 16).

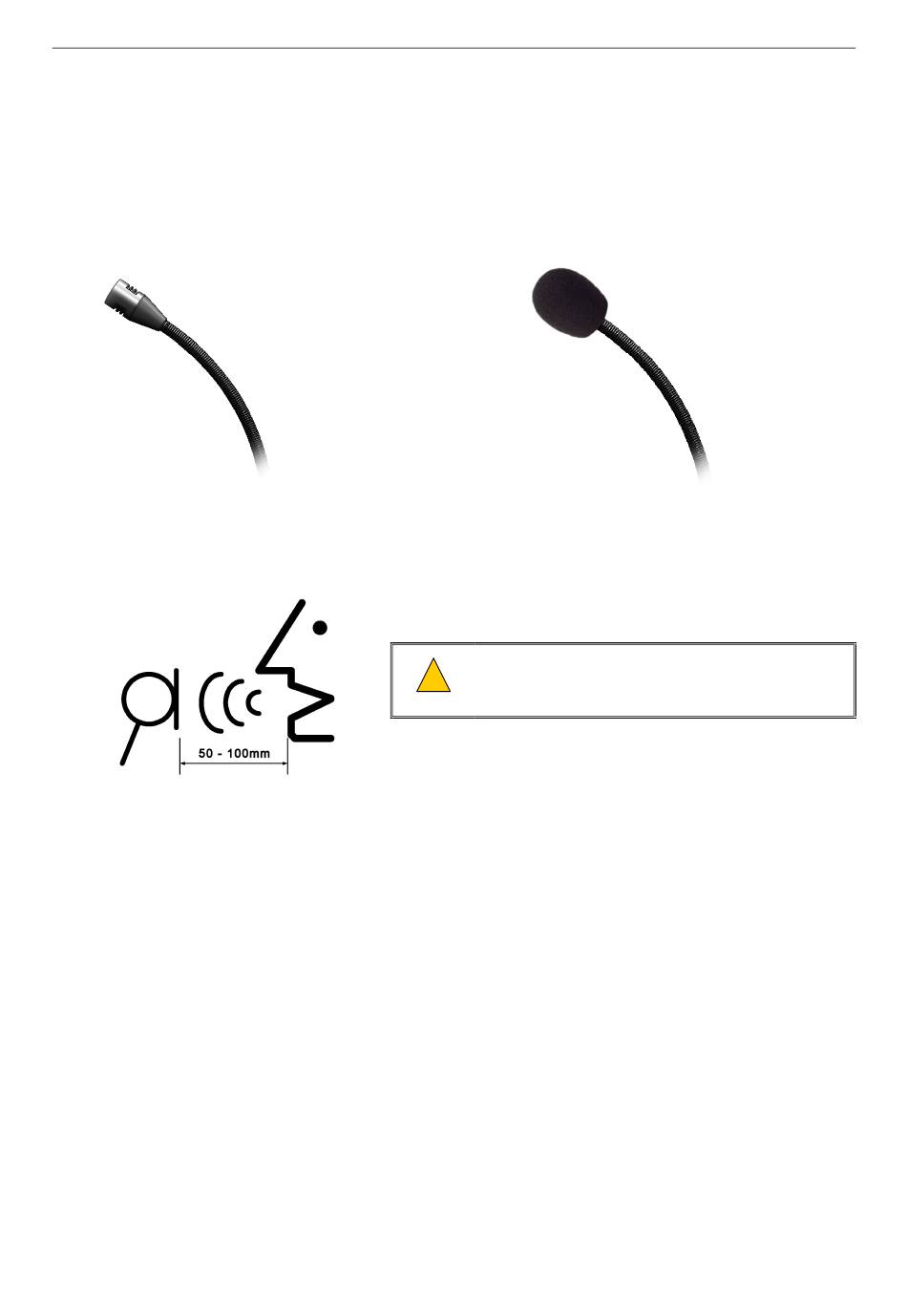

Figure 14
Fitting the foam windshield
Microphone capsule housing
without foam windshield
16.
If the MPS microphone is to be used as an Emergency Microphone, place the supplied pictogram
label adjacent to the microphone; see example in Figure 15 (page 16).
Figure 15
Example of pictogram label
17.
The installation is now complete and ready for system commissioning.
MPS-Series – Installation Guide
BS5839-8 requires the pictogram label to be placed so
!
!
that it is clearly visible to any person operating the
microphone.
U-0664-0174.doc – Issue: 07 complete, approved
Page 16 of 24
Microphone capsule housing
with foam windshield fitted
