4
Connections

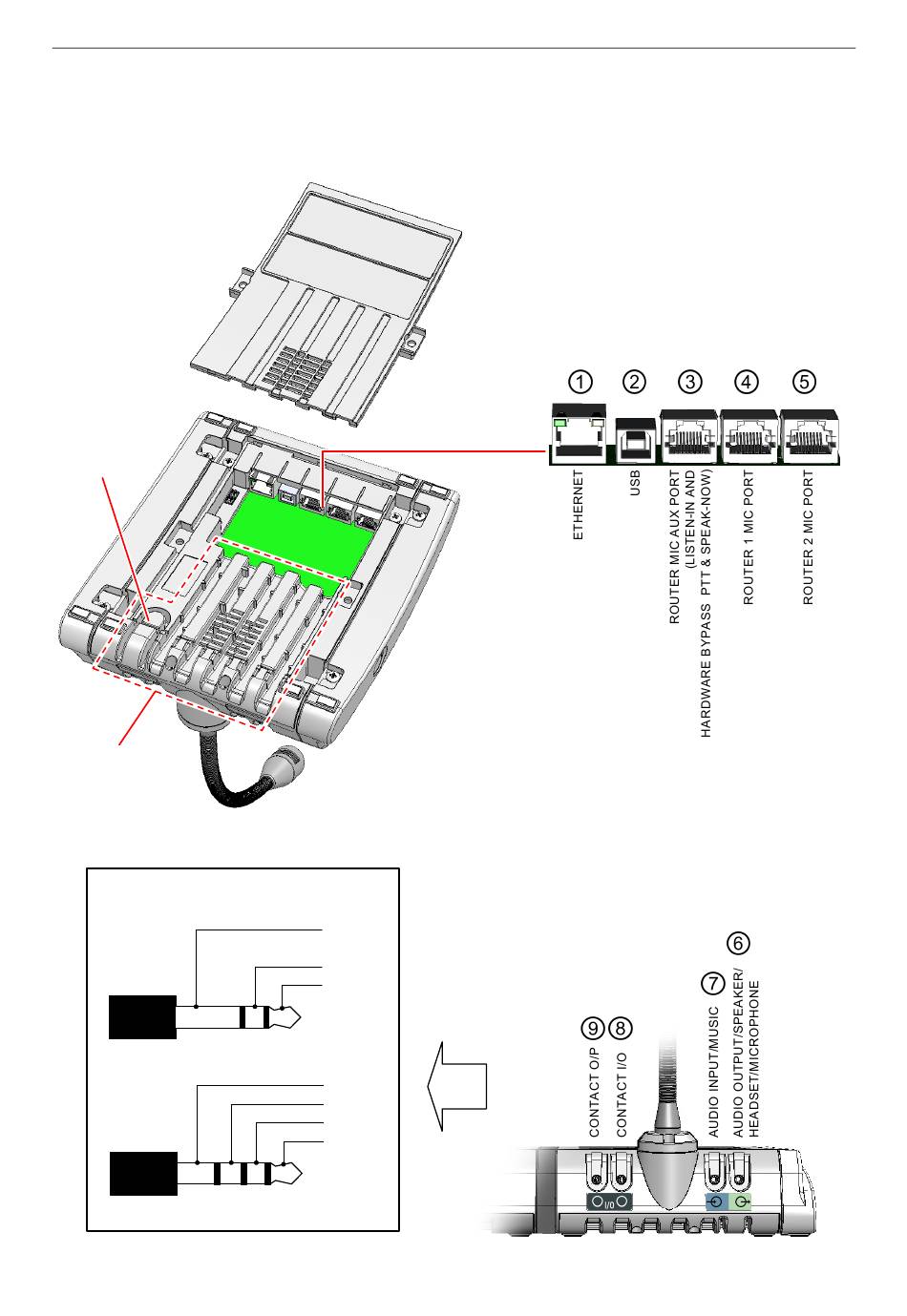

Figure 17
MPS connections
(Cover removed)
Cable strain
relief guide for
audio I/O cables
(3.5 mm jack)
CABLE STRAIN
RELIEF GUIDES
CABLE TERMINATION OPTIONS
TRS JACK PLUG
TRRS JACK PLUG
MPS-Series – Installation Guide
SLEEVE
RING
TIP
SLEEVE
RING 2
RING 1
TIP
U-0664-0174.doc – Issue: 07 complete, approved
Page 18 of 24
