Quadratec
Spare Tire
®

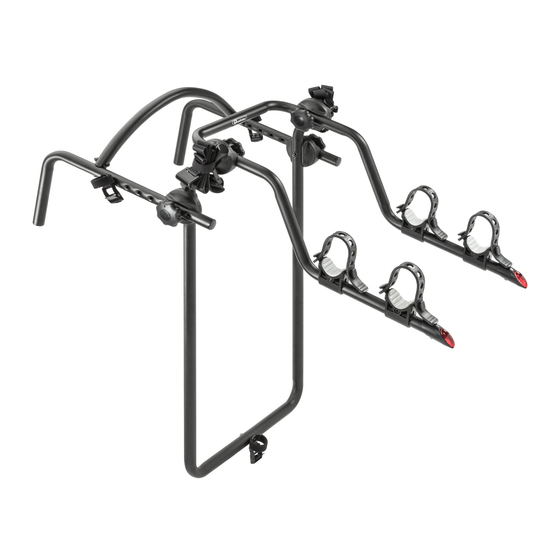

Mount Bike Rack
Installation Manual: Designed for Jeep '76-'19
CJ, YJ, TJ, JK and JL Wrangler Vehicles
#
92034.1007
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUC-
TIONS AND PROCEDURE NOTI ES BEFORE ATTEMPTING TO
INSTALL OR USE THIS PRODUCT. FOLLOW ALL INSTRUCTIONS
AND WARNINGS WITH PRODUCT & VEHICLE OWNERS MANUAL.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT ALL
TIMES WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
TORQUE AND RECHECK FASTENERS AFTER 250 MILES AND
FREQUENTLY THEREAFTER. DO NOT USE IF DAMAGED.
MAKE CERTAIN BICYCLES ARE PROPERLY SECURED BEFORE
DRIVING ON PUBLIC ROADS. FAILURE TO DO SO COULD CAUSE
PROPERTY DAMAGE OR PERSONAL INJURY.
