Quadratec
Front Bumpers

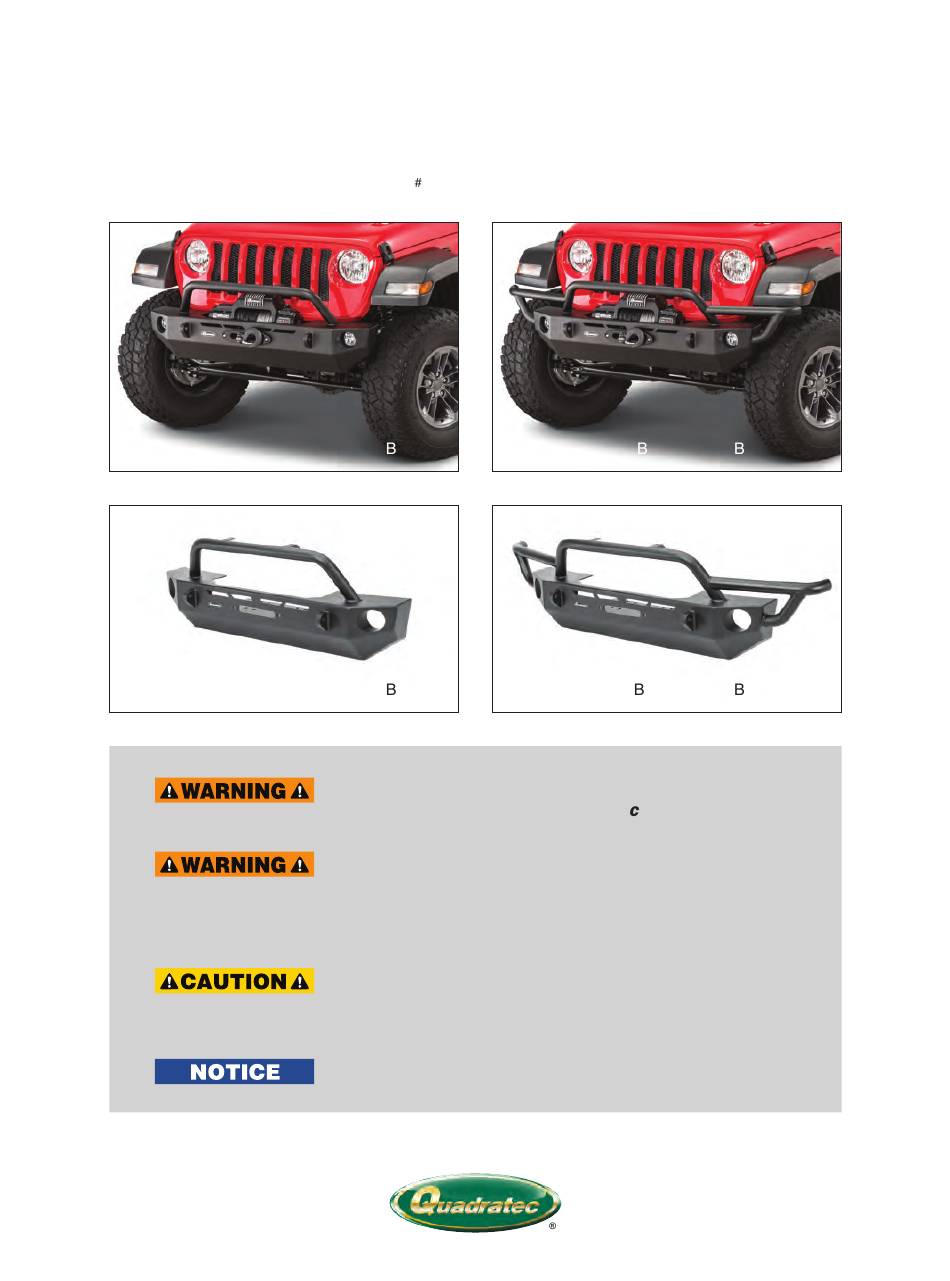

Installation Manual for '18 - Current Wrangler JL Vehicles
Stubby umper
Stubby umper
12057.014X
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS AND PROCEDURE NOTI ES BEFORE
ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
MOUNT WINCH USING ONLY APPROVED MOUNTING PLATE.
BUMPER/WINCH PLATE NOT INTENDED FOR WINCHES IN EX-
CESS OF 10000LBS. LOAD LIMITS FOR YOUR BUMPER/WINCH
MAY BE LESS DEPENDING ON CONDITION OF YOUR VEHICLE
AND ATTACHMENTS. FOLLOW ALL INSTRUCTIONS, LIMITATIONS
& WARNINGS WITH YOUR VEHICLE, THIS PRODUCT, YOUR
WINCH AND SAFE WINCHING PRACTICES SUPPLEMENT.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT
ALL TIMES WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
TORQUE AND RECHECK FASTENERS AFTER 250 MILES AND
FREQUENTLY THEREAFTER. INSPECT BUMPER, WINCH AND
MOUNT BEFORE USE. DO NOT USE IF DAMAGED.
CHECK STATE AND LOCAL HIGHWAY SAFETY LAWS REGARDING
PERMITTED BUMPER TYPES AND HEIGHTS.
The Trusted Source
QRC
®
umper with rush Guard
umper With rush Guard
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Quadratec 12057.014 Series
Summary of Contents for Quadratec 12057.014 Series
- Page 1 Quadratec ® Front Bumpers Installation Manual for ’18 - Current Wrangler JL Vehicles 12057.014X Stubby umper umper with rush Guard Stubby umper umper With rush Guard TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE: READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS AND PROCEDURE NOTI ES BEFORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
- Page 2 Careful attention is required to this instruction or operation but does ® generally not relate to personal injury. Damage to your Quadratec product or other property may result if you don’t follow instructions. Before You Begin Installation: Congratulations on your purchase of your bumper looking like new.
- Page 3 QRC Front Bumper Parts & Tools: Stubby Bumper Bumper With Brush Guard PARTS LIST: REQUIRED TOOLS: A) QRC Front Bumper QTY 1 Safety Glasses B) 12 x 35mm Hex Bolts QTY 4 13, 16, & 18mm deep Sockets C) 12mm Flat Washers QTY 8 19mm Socket D) 12mm Lock Washers...
- Page 4 QRC JL Front Bumper Installation Prep: FIG2 Put on safety glasses. Start by removing Remove the two screws on the under- the factory splash guard. Remove the 8 side using a 5/16” socket. (FIG2) Re- plastic push rivets on the underside of move the splash guard.
- Page 5 QRC JL Front Bumper Installation Prep: FIG6 FIG7 Using a 18mm deep socket remove the Lastly disconnect the fog light wiring (8) bumper retaining nuts. There are 2 harness plug so the bumper can be on the inside and outside of each frame removed.
- Page 6 Foglight Harness Removal from Original Bumper (Sport Model) FIG 2 Now you will be able to access the fog Remove the 3 screws retaining the fog light wiring harness. Remove harness lamps to bumper fascia using a T-20 using a trim removal tool and set aside driver and set aside for re use.
- Page 7 Foglight Harness Removal from Original Bumper (Sahara & Rubicon Models) FIG16 FIG17 Remove the two fog light wiring harness Locate the six plastic fasteners holding retainers from metal sub structure using the frame guard to bumper and remove a trim removal tool. (FIG16) using a flat blade screwdriver.
- Page 8 Fog Light Installation on QRC Bumpers: Sport Model Vehicles FIG21 FIG22 FIG21 shows the bumper mounting Hold fog lamp in place and loosely configuration for your fog lamps. attach to bumper with two 4mm button You will be using three holes just as the head screws and two washers using factory original did.
- Page 9 Fog Light Installation on QRC Bumpers: Sahara & Rubicon Vehicles FIG24 FIG25 Loosely attach the supplied fog lamp secure with a 4mm nut using the bracket to bumper with two 4mm but- provided 2.5mm hex key and a 7mm ton head screws and two washers using wrench.
- Page 10 QRC Front Bumper: Install on Vehicle FIG28 FIG29 Install the fog lamp harness as shown. Route the wiring harness over passenger Connect to body side connector until side frame rail and down under winch you hear a “click”. (FIG28) plate to drivers side fog lamp as shown. (FIG29) Cable ties may be necessary to secure harness if there is extra slack.
- Page 11 Final Results: Shown installed with the Quadratec Q-Performance Stealth Winch sold separately) The Trusted Source...
- Page 12 Quadratec to obtain a RGA number only to Quadratec branded accessories first sold (610-701-3336). All labor, removal, shipping in the United States, Quadratec warrants to the and installation costs are customer’s initial retail purchaser only that your responsibility.
