Quadratec
Installation Manual: for '07 - 18 JK Unlimited (4Door)

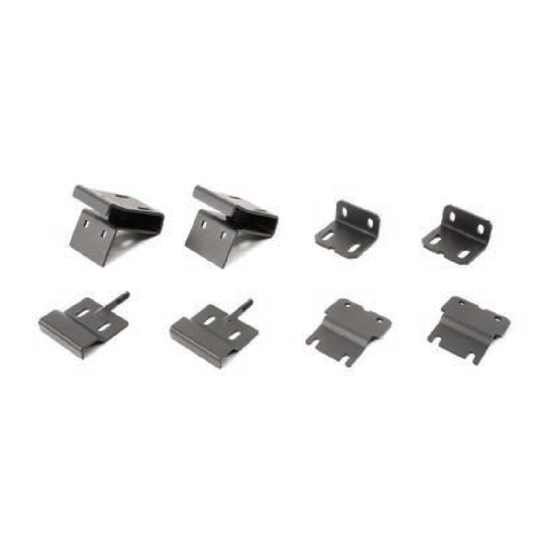

PARTS LIST:
Gutter Mount Bracket
Gutter Mount Bracket Clamp
Hinge Mount Bracket
Rear Rack Mount Bracket
88mm x 35mm x 5.5mm Foam Pads QTY 2
88mm x 12mm x 3.2mm Foam Pads QTY 2
88mm x 25mm x 3.2mm Foam Pads QTY 2
M8 x 1.25 x 20 Carriage Bolt
M8 x 1.25 x 25 Hex Head Bolt
M8 x 24mm OD Flat Washer
M8 x 16mm OD Flat Washer
M8 Nylon Lock Nut
®
for Roof Rack
QTY 2
QTY 2
QTY 2
QTY 2
QTY 4
QTY 12
QTY 24
QTY 6
QTY 18
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS BEFORE ATTEMPTING TO INSTALL THIS
PRODUCT. ALWAYS WEAR SAFETY GLASSES DURING INSTALL.
Bracket Kit
REQUIRED TOOLS:
Safety Glasses
Ratchet Handle Wrench
10mm Shallow Socket
13mm Shallow and Deep Sockets
13mm Box end or Ratcheting Wrench
92034.1091
#
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Quadratec 92034.1091
Summary of Contents for Quadratec 92034.1091
- Page 1 Quadratec Bracket Kit ® for Roof Rack Installation Manual: for ’07 - 18 JK Unlimited (4Door) 92034.1091 PARTS LIST: REQUIRED TOOLS: Gutter Mount Bracket QTY 2 Safety Glasses Gutter Mount Bracket Clamp QTY 2 Ratchet Handle Wrench Hinge Mount Bracket...
- Page 2 A Few Words About Product Safety: Throughout these instructions import- Your Quadratec Roof Rack Bracket Kit ® ant safety information is generally is intended to enhance the utility of your preceded by one of three signal words off road capable vehicle. Before installa-...
- Page 3 Installation Instructions: FIG 1 FIG 1 FIG 2 FIG 2 Put on safety glasses. Start by applying The 88mm x 25mm pads will be applied foam pads to the required areas. The to the main brackets foot as shown. 88mm x 12mm narrow pads will be (FIG 2) The pad needs to wrap around applied to the Bracket clamps as shown.
- Page 4 Installation Instructions: FIG 7 FIG 7 FIG 8 FIG 8 Open the tailgate and then the rear Loosely install the rear rack mount window glass. Using a 10mm socket brackets to the hinge brackets with the carefully loosen the hinge brackets just supplied M8 hex head bolts, washers enough to slide the hinge mounting and lock nuts using 13mm tools.
- Page 5 Installation Instructions: FIG 11 FIG 11 FIG 12 FIG 12 Now snug the top mounting stud using Once you have the rack in its desired a 13mm deep socket. (FIG 12) Lastly location start by snugging the main tighten the side mounting bolts using a brackets to the hard top.
- Page 6 Quadratec to only to Quadratec branded accessories first sold obtain a RGA number (610-701-3336). All labor, in the United States, Quadratec warrants to the removal, shipping and installation costs are initial retail purchaser only that your Quadratec customer’s responsibility.
