Quadratec
Adjustable
®

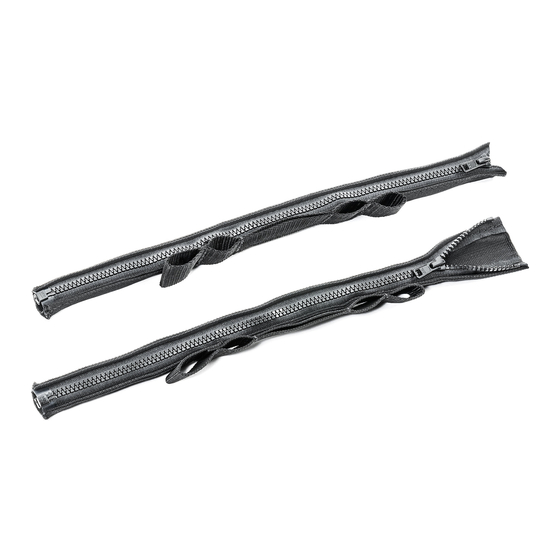

Replacement Door Check Straps
Installation Manual for 2007 - Current Wrangler (JK)
#
14018.1213
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS AND PROCEDURE NOTICES BEFORE
ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT
ALL TIMES WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
MAKE SURE YOU DO NOT CUT OR DAMAGE VEHICLE DOOR
WIRES DURING THIS INSTALLATION.
®
The Trusted Source
Advertisement
Related Manuals for Quadratec 14018.1213
Summary of Contents for Quadratec 14018.1213
- Page 1 Adjustable ® Replacement Door Check Straps Installation Manual for 2007 - Current Wrangler (JK) 14018.1213 TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE: READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS AND PROCEDURE NOTICES BEFORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
-
Page 2: Required Tools
Careful attention is required to this instruction or operation but does ® generally not relate to personal injury. Damage to your Quadratec product or other property may result if you don’t follow instructions. READ ALL SAFETY MESSAGES AND ALWAYS WEAR SAFETY GLASSES WHEN WORKING WITH TOOLS. - Page 3 Remove the Inner door panel. Consult our how- to video at Quadratec.com (Search for 14018.1213) for more details. Using a T30 torx bit. Remove the two bolts that attach the footman loop to Figure 5 the door.
- Page 4 Adjustable Door Check Strap Installation: Figure 6 Figure 7 Remove the footman loop from the door Carefully remove the electrical tape that is attached to the end of the check and slide it out of the loop on the check strap.
- Page 5 First, slide the Footman loop through the desired loop on the panel. Repeat all steps on opposite side check strap and reinstall it with the of the vehicle. Your new Quadratec two factory T30 bolts. (FIG12) adjustable door check straps are now installed.
- Page 6 Quadratec to obtain a RGA number only to Quadratec branded accessories first sold (610-701-3336). All labor, removal, shipping in the United States, Quadratec warrants to the and installation costs are customer’s initial retail purchaser only that your responsibility.
