Installation Manual: for '07 - Current Wrangler JKU, JL, JLU & Gladiator JT
PARTS LIST:

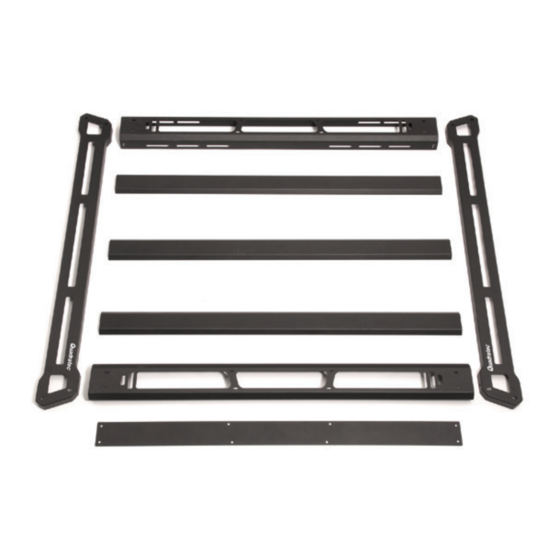

End Panel
Side Panel
Floor Slat
Wind Deflector
M8 x 1.25 x 25 Hex Button Head Screw QTY 28
M8 x 24mm OD Flat Washer
M8 Hex Nut
M8 Lock Washer
M6 x 1.00 x 20 Capture
Washer Screw
M6 x 18mm OD Flat Washer
M6 Hex Nut
Q_RFRACK_JK_JL_JT_92034_1090_XPG_A4.indd 1
Q_RFRACK_JK_JL_JT_92034_1090_XPG_A4.indd 1
Quadratec
Roof Rack
REQUIRED TOOLS:
QTY 2
Safety Glasses
QTY 2
Ratchet Handle Wrench
QTY 3
4mm & 5mm Allen Hex Key Wrenches
QTY 1
10mm Box End Wrench or Socket & Ratchet
13mm Box End or Ratcheting Wrench
QTY 44
QTY 16
QTY 28
QTY 8
QTY 8
QTY 8
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS BEFORE ATTEMPTING TO INSTALL THIS
PRODUCT. ALWAYS WEAR SAFETY GLASSES DURING INSTALL.
®
92034.1090
#
11/13/20 9:42 AM
11/13/20 9:42 AM
