Quadratec
Front Bumpers

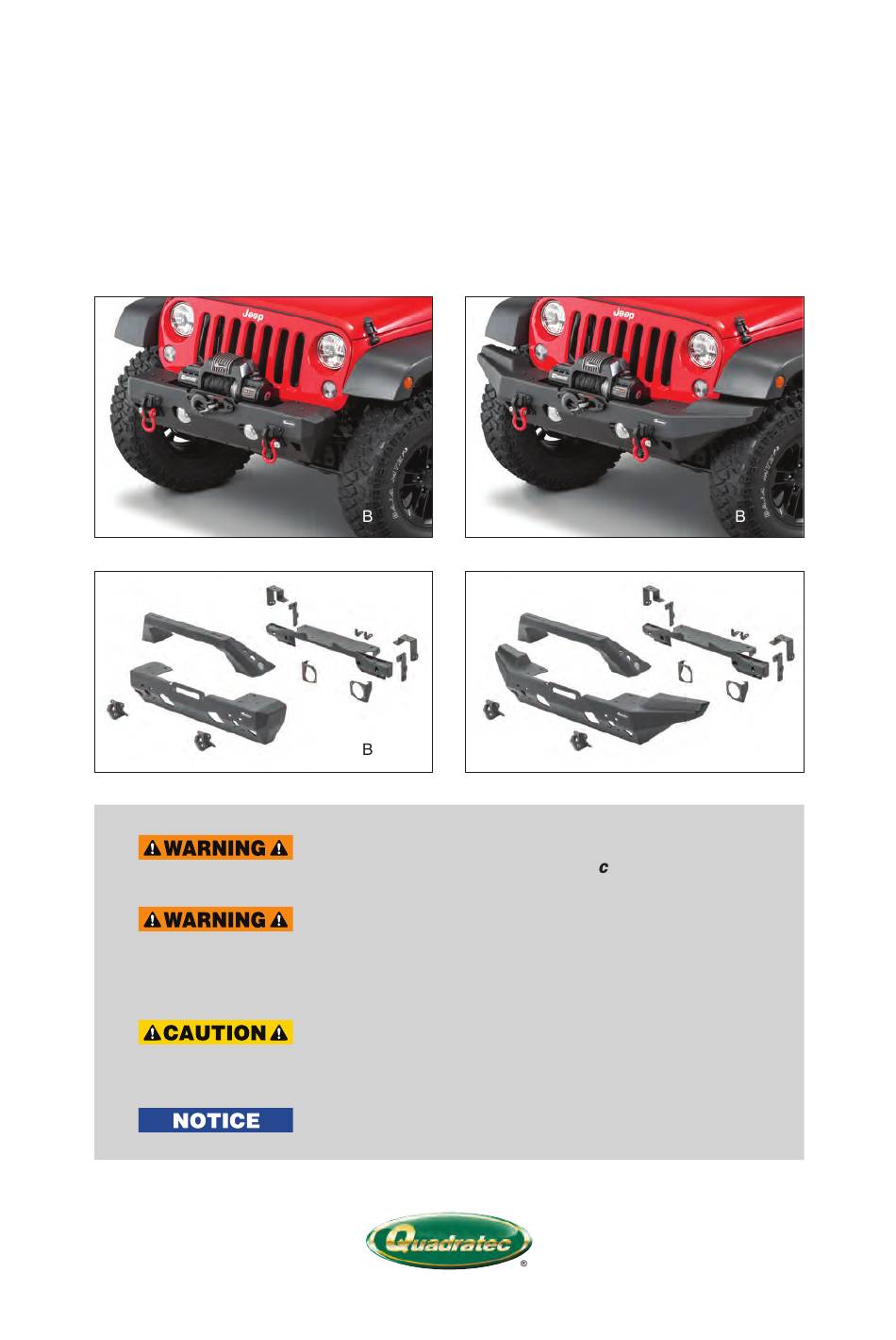

Installation Manual for '07-'18 Wrangler JK Vehicles
#
12057.0263 and 12057.0264
Narrow umper
Narrow umper
Aluminum
®
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS AND PROCEDURE NOTI ES BEFORE
ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
MOUNT WINCH USING ONLY APPROVED MOUNTING PLATE.
BUMPER/WINCH PLATE NOT INTENDED FOR WINCHES IN EX-
CESS OF 10000LBS. LOAD LIMITS FOR YOUR BUMPER/WINCH
MAY BE LESS DEPENDING ON CONDITION OF YOUR VEHICLE
AND ATTACHMENTS. FOLLOW ALL INSTRUCTIONS, LIMITATIONS
& WARNINGS WITH YOUR VEHICLE, THIS PRODUCT, YOUR
WINCH AND SAFE WINCHING PRACTICES SUPPLEMENT.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT
ALL TIMES WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
TORQUE AND RECHECK FASTENERS AFTER 250 MILES AND
FREQUENTLY THEREAFTER. INSPECT BUMPER, WINCH AND
MOUNT BEFORE USE. DO NOT USE IF DAMAGED.
CHECK STATE AND LOCAL HIGHWAY SAFETY LAWS REGARDING
PERMITTED BUMPER TYPES AND HEIGHTS.
The Trusted Source
Full Width umper
Full Width
Advertisement
Related Manuals for Quadratec 12057.0263
Summary of Contents for Quadratec 12057.0263
- Page 1 Quadratec Aluminum ® Front Bumpers Installation Manual for ’07-’18 Wrangler JK Vehicles 12057.0263 and 12057.0264 Narrow umper Full Width umper Narrow umper Full Width TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE: READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS AND PROCEDURE NOTI ES BEFORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
- Page 2 Careful attention is required to this instruction or operation but does ® generally not relate to personal injury. Damage to your Quadratec product or other property may result if you don’t follow instructions. Before You Begin Installation: Congratulations on your purchase of Please see page 10 for important care &...
-
Page 3: Required Tools
Quadratec Aluminum Front Bumper Parts & Tools: BUMPER PARTS LIST: 1) Aluminum Front Bumper QTY 1 2) Over Rider Bar QTY 1 3) Tow Hooks QTY 2 4) Winch Mount Plate QTY 1 5) Over Rider Support Brackets QTY 2... - Page 4 (FIG2) Remove the plastic push rivets on the underside of splash guard. Note: This will not be the bumper. (FIG1) reused with your Quadratec bumper. Figure 3 Figure 4 Next remove the factory bumper. Using Be careful not to damage the fog light an 18mm socket remove the 8 bumper harness.
- Page 5 JK Front Bumper Installation Preparation: Figure 5 Figure 6 Disconnect the factory wiring harness Next, remove the Factory frame guard. from the bumper mounted fog lights. Locate the plastic screw rivets on either (FIG5) side. (FIG6) Figure 7 Figure 8 Remove the plastic screw rivets with Now remove the factory fog lights from a phillips screwdriver.
- Page 6 JK Front Bumper Installation Preparation: FIG9 FIG1 On 2012 and newer models locate and Slide down the green tab and slide off remove the mounting hardware for the the large hose. (FIG 10) brake vacuum canister using 10mm socket or wrench. (FIG 9) FIG11 FIG12 Pull of the small breather hose by...
- Page 7 JK Front Bumper Installation: FIG15 FIG16 Loosely install M10 x 20 Bolts and Loosely install M10 x 20 Bolts and fender washers through the winch plate fender washers through the winch plate and into the nut plates using a 17mm and into the nut plates using a 17mm socket.
- Page 8 JK Front Bumper Installation: FIG2 FIG21 Attach the fog lamps to the brackets as Secure the fog lamp brackets to the shown with the supplied M4 hardware winch plate with the supplied M6 bolts using a 3mm hex key and 7mm wrench. and washers using a 10mm socket.
- Page 9 JK Front Bumper Installation: FIG24 Loosely install the over rider bar through the bumper and into the support brackets with two M10 allen head bolts and washers using a 6mm hex key. (FIG 24) FIG25 Lastly, loosely install the final hardware for the over rider bar using 4 M10 allen head bolts, 8 washers and 4 nylock...
- Page 10 Final Adjustments: FIG26 Final Adjustment: You may now tighten the M10 allen head hardware through the tow hooks to 55ft lbs. Torque the over rider bar bracket to winch plate Hex Head M10 hardware and bracket to outside of the frame rail to 38ft lbs. Now torque the remaining over rider bar M10 mounting hardware to 38ft lbs.
- Page 11 Final Results: Narrow Width Shown installed with the Quadratec Q-Performance Stealth Winch (sold separately) Full Width Shown installed with the Quadratec Q-Performance Stealth Winch (sold separately) The Trusted Source...
- Page 12 Quadratec to obtain a RGA number only to Quadratec branded accessories first sold (610-701-3336). All labor, removal, shipping in the United States, Quadratec warrants to the and installation costs are customer’s initial retail purchaser only that your responsibility.
