Kessel Staufix FKA Standard Installation And Operating Manual

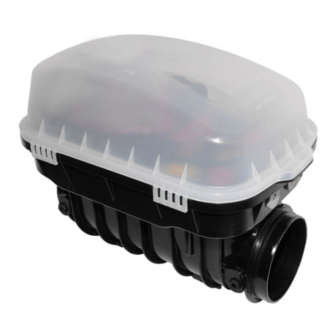

Backwater valve for wastewater with or without raw sewage
Hide thumbs
Also See for Staufix FKA Standard:
- Installation and operating manual (144 pages) ,
- Installation and operating manual (82 pages) ,
- Installation and operating manual (72 pages)
Advertisement
Quick Links
INSTALLATION AND OPERATING MANUAL
Backwater Valve
KESSEL - Staufix
Installation
This system was installed and commissioned by the following service
company:
Name/Signature
Edition 03/2011
for wastewater with or without raw sewage
®
FKA Standard/Comfort
Commissioning
Training
Date
Location
Product Advantages:
For wastewater with or without sewage
For installation in exposed or concrete
slab piping
Operational even during power outages
Automatic backwater flap closure during
backwater
Staufix
FKA also offer powerless
®
backwater protection during the building
phase (no power supply to building)
Upgradable to KESSEL Pumpfix
backwater valve with integrated
sewage pump
Offers full channel wastewater passage
Simple maintenance and service
Available with control unit with display
(Staufix
FKA Comfort)
®
DIN EN 13564 Type 3
Product requires maintenance in
accordance with DIN EN 13564
LGA
Landesgewerbeamt Bayern
Bauart
Bauart
Bauart
geprüft
geprüft
geprüft
und überwacht
und überwacht
und überwacht
Company Stamp
F
®
Nr. 010-842EN
Advertisement
Related Manuals for Kessel Staufix FKA Standard
Summary of Contents for Kessel Staufix FKA Standard
- Page 1 Staufix FKA also offer powerless ® backwater protection during the building phase (no power supply to building) Upgradable to KESSEL Pumpfix ® backwater valve with integrated sewage pump Offers full channel wastewater passage Simple maintenance and service Available with control unit with display...
-
Page 2: Table Of Contents
During backwater or potential backwater Before installing and commissioning death to the operator. conditions no service or maintenance is to this KESSEL Staufix® SWA or Control- be conducted on the system. fix®, please thoroughly read through Before and service, maintenance or... -
Page 3: General
2. General and at the same time are protected against The KESSEL Staufix® SWA backwater During the buildingʼs construction phase backwater. 2.1 Application 2.3 Pre-installation tips valve, designated as a DIN EN 13564 only the body of the system will be instal- Type 3 backwater valve, is designed to be led and connected to the buildingʼs drai-... -
Page 4: Installation
/ lower levels. Rainwater drainage pipes must not be separate drainage pipes. connected to a backwater valve. 50 (2 inch), KESSEL recommends not using centering tip are pointing up. The centering tip DIN EN 12056 requirements should be close- 90 degree bends –... - Page 5 • Counterflange quired depth of installation, either one or • Sealing sheet two of the KESSEL extension sections can be used. Connection gaskets are supplied with the 83071 and should be properly lu- bricated as stated previously. In order to...
- Page 6 3. Installation Prinzipdarstellung (Bsp. Pumpfix ® Œ KESSEL-Pumpfix F, Staufix ® ® FKA, Staufix SWA, Controllfix ® Concrete floor with moisture protective Groundwater protection set 83023 sheet Ž Extension section (Article Number 83071) DN 100 intermediate section Tiles...
-
Page 7: Inspection And Maintenance
4. Inspection and Maintenance a) Close the motorized backwater The backwater valve should be 4.1 Inspection flap by pressing flap close button checked on a monthly basis by the on the control unit. Close the ma- owner or a representative of the nual closure level be closing and owner. - Page 8 4. Inspection and Maintenance Caution: - When removing both covers make sure both closure levers are in the open 4.2.1 Assembly of both covers position – this serves to use the leverage of the levers. (see Illustr. 12, 13) - When replacing both covers, both closure levers must be in the vertical position.
-
Page 9: Warranty
Manually operated closure lever in the closed / locked position. 5. Warranty 1. In the case that a KESSEL product is de- or part needing repair or replacement and and operated in accordance with the valid fective, KESSEL has the option of repai-... -
Page 10: Replacement Parts
6. Replacement Parts Staufix® FKA for exposed pipe installations (Article Numbers 83100, 83125, 83150, 83200 and FKA Comfort Article Numbers 84100, 84125, 84150 and 84200) FKA motor IP 68 (5 meter length) 80076 Description Art.-Nr. Œ Œ FKA control unit standard IP 54 80073 ... -
Page 11: Commissioning Protocol For Installer
__________________________________________________________ Planner __________________________________________________________ Address __________________________________________________________ Telephone / Fax __________________________________________________________ Contracted plumbing company __________________________________________________________ Address __________________________________________________________ Telephone / Fax __________________________________________________________ KESSEL-Commissions no.: System operator /owner __________________________________________________________ Address __________________________________________________________ Telephone / Fax __________________________________________________________ User __________________________________________________________ Address __________________________________________________________ Telephone / Fax __________________________________________________________ Person of delivery... - Page 12 Notizen...
-
Page 13: Commissioning Protocol For Installation Company
8. Commissioning Protocol for installation company Handover certificate (copy for the company carrying out the installation) The initial operation and instruction was carried out in the presence of the person authorised to perform the accep- tance and the system operator. The system operator/person authorised to perform the acceptance was informed about the obligation to service the product according to the enclosed operating instructions. - Page 14 Notice...
