8-4 Bosch Rexroth AG | Electric Drives and Controls
Maintenance and Installation
8.7

Front Panel

2. Fit the wires with wire end ferrules and connect the wires to the con-
nector.

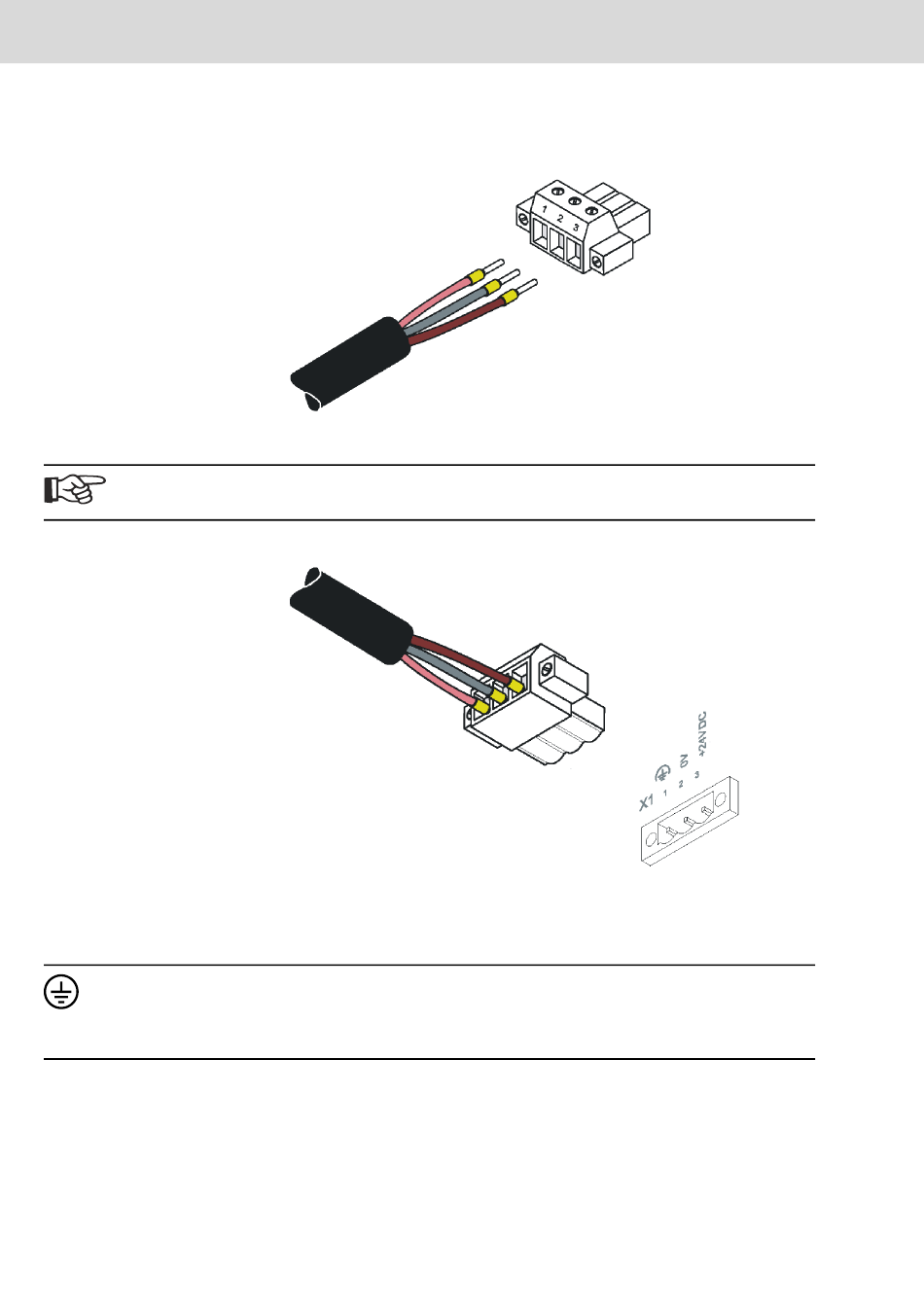

Fig. 8-4: Connecting the female connector strip

If shielded connecting cables are used in the supply voltage area, the
shield should be connected to pin 1.
3. Plug the female connector strip onto connector X1.

Fig. 8-5: Female connector strip is plugged on

4. Secure the female connector strip in place with a screw-type locking
to prevent it from slipping out.
A separate conductor must always be provided for the protective
grounding at the threaded bolt. The conductor must have a minimum
cross-section of 1.5 mm² (16 AWG) and must be kept as short as pos-
sible.
Only use a damp cloth to remove any dirt from the front panel.
Rexroth IndraControl VCP 05 | R911310377 / 02
