configurations. Then click "Close."
After completing the configurations of "Xport Installer" and "lantronix," the inverter can communicate
with the machine supporting RS485 communication protocol and monitor it.


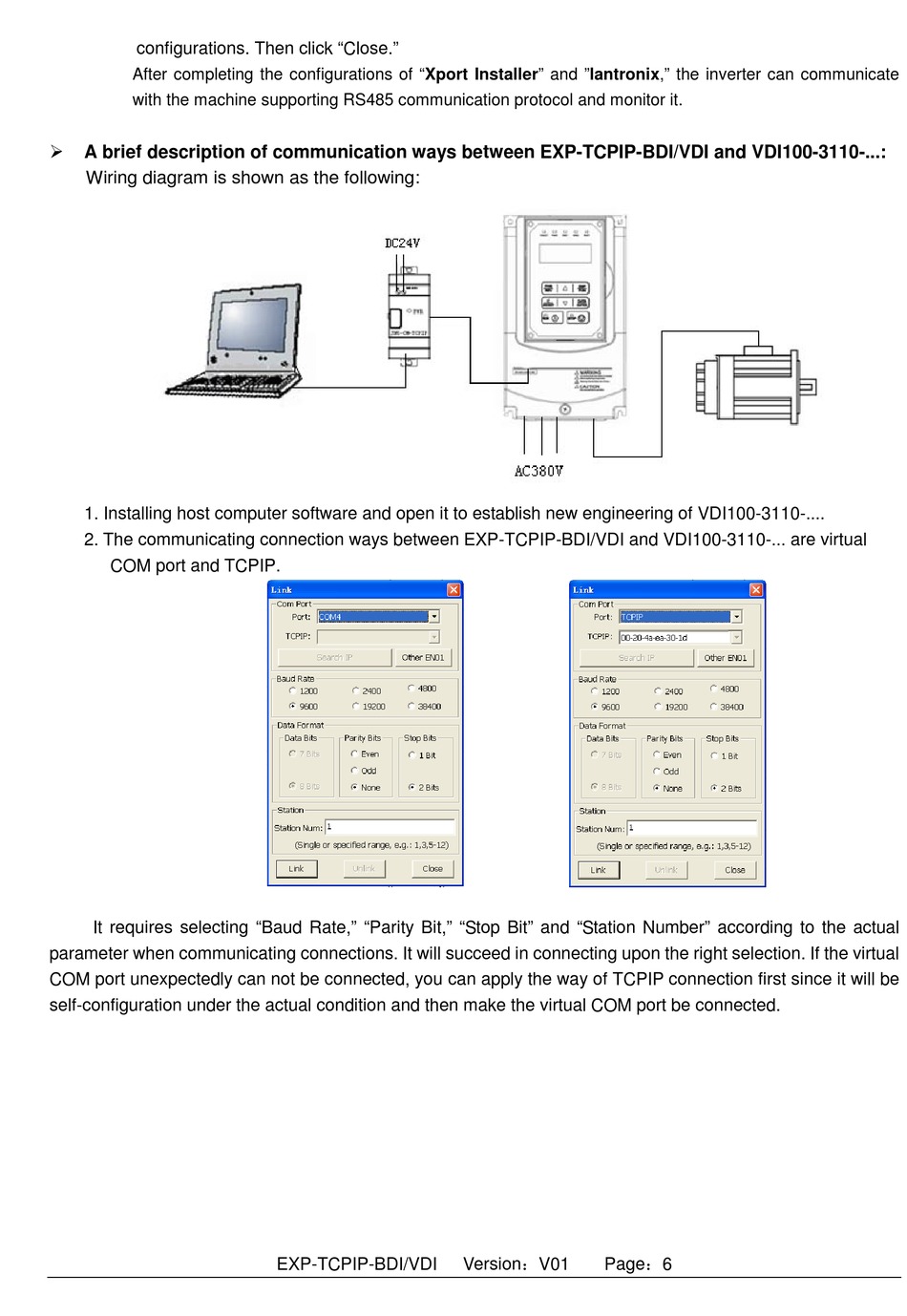

A brief description of communication ways between EXP-TCPIP-BDI/VDI and VDI100-3110-...:
Wiring diagram is shown as the following:
1. Installing host computer software and open it to establish new engineering of VDI100-3110-....
2. The communicating connection ways between EXP-TCPIP-BDI/VDI and VDI100-3110-... are virtual
COM port and TCPIP.
It requires selecting "Baud Rate," "Parity Bit," "Stop Bit" and "Station Number" according to the actual
parameter when communicating connections. It will succeed in connecting upon the right selection. If the virtual
COM port unexpectedly can not be connected, you can apply the way of TCPIP connection first since it will be
self-configuration under the actual condition and then make the virtual COM port be connected.
EXP-TCPIP-BDI/VDI Version：V01 Page：6
