gefran R-A/D8 Installation And Operation Manual

• 8 analog inputs configurable via software
• 16 bit resolution
• Intercepts
• Configuration of inputs via software
This section contains the instructions necessary for correct
installation of the GILOGIK II into the machine control panel
or the host system and for correct connection of the system
power supply, inputs, outputs and interfaces.
Before proceeding with installation read the following
warnings carefully!
Remember that lack of observation of these warnings
could lead to problems of electrical safety and electroma-
gnetic compatibility, as well as invalidating the warranty.
Qualified staff
the installation and use of the system and components are only reserved
at qualified staff.
Conform use
the system and relative components are usable exclusively to the use
previewed in the manual
In order to guarantee a correct and sure operation are indispensable that
the product comes transported, stored correctly, installed, and controlled
second the previewed modalities.
Suitable for use in pollution degree 2 environment.
Open type equipment.
Notes Concerning Electrical Safety and Electromagnetic
Compatibility:
- 8 analog inputs with 16 bit A/D conversion
- Sample time <100µsec for all channels
- Digital Filter
- Power supply: via R-BUS(x) 3.3V backplane
Inputs for:
- Potentiometer min. 2kΩ
- Differential 0...100mV, 0...30mV for strain gauge
- Linear 0...10V, ±10V, 0...2V
- Linear 0...20mA, 4...20mA
Input impedance for:
- Potentiometer > 1MΩ

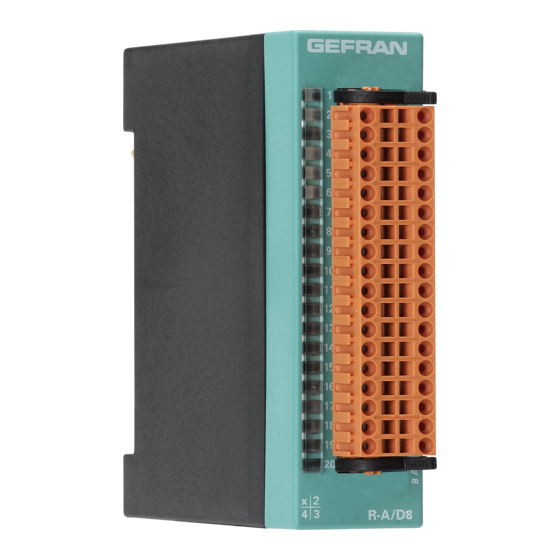

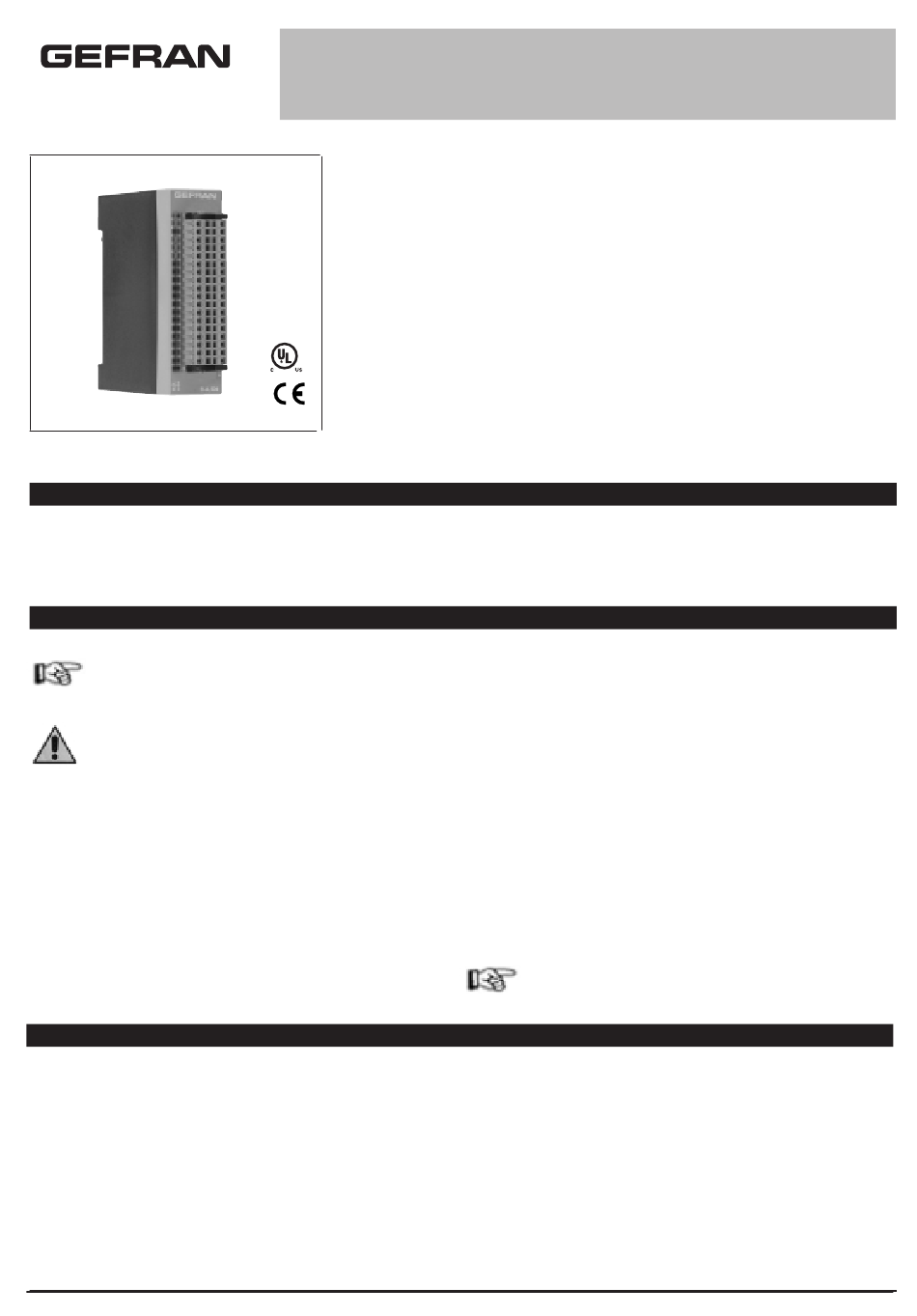

R-A/D8
MODULE WITH 8 ANALOG INPUTS
INSTALLATION AND OPERATION MANUAL
cod. 80129C / Edit 04 - 0809 - ENG
1 • MAIN FEATURES
I
2 • INSTALLATION AND CONNECTION
3 • TECHNICAL DATA
I
• On board power supply for transducers
• Diagnostics LEDs for power supplies and alarm
• Removable connector supplied
• CE MARKING: EMC Conformity (electromagnetic compatibility)
in accordance with EEC Directive 2004/108/CE. The GILOGIK II
system is mainly designed to operate in industrial environments,
installed on the switchboards or control panels of productive process
machines or plants.
Norm of applicable product EN 61131-2.
The Declaration of conformity is available on GEFRAN web:
www.gefran.com
• UL listed standard: UL508 file E198546
• BT Conformity (low tension)
in accordance with Directive LVD 2006/95/CE.
Advice for Correct Installation for EMC
Inputs and outputs connection
• The externally connected circuits must be doubly isolated.
• To connect the analogue inputs the following is necessary:
- physically separate the input cables from those of the power supply, the
outputs and the power connections.
- use woven and screened cables, with the screen earthed in one point
only.
GEFRAN S.p.A. declines all responsibility for any damage
to persons or property caused by tampering, neglect,
improper use or any use which does not conform to the
characteristics of the controller and to the indications
given in these Instructions for Use.
- Linear 0...10V, ±10V e 0...2V > 1MΩ
- Strain gauge 0...30mV, 0...100mV > 1MΩ
- Linear 0/4...20mA = 100Ω
Accuracy of inputs better than 0,2%
Power supply for transducers and potentiometers
24VDC ± 25% 500mA max. external (fed to front terminals)
Power supply is internally distributed to the various channels:
• 10V for strain-gauge max 150mA
• 24V amplified sensors max. 500mA
Input isolation: > 2,0kV
Over-voltage on inputs for 1 ms maximum: max. 1kV
For UL: supply with class 2 device
80129C_MHW_R-A/D8_0809_ENG
