gefran R-E16 Installation And Operation Manual

• 16 digital inputs 24 Vdc ± 25%
• PNP optically isolated Inputs
• Filters selectable individually via software
This section contains the instructions necessary for correct
installation of the GILOGIK II into the machine control panel
or the host system and for correct connection of the system
power supply, inputs, outputs and interfaces.
Before proceeding with installation read the following
warnings carefully!
Remember that lack of observation of these warnings
could lead to problems of electrical safety and electroma-
gnetic compatibility, as well as invalidating the warranty.
Qualified staff
the installation and use of the system and components are only reserved
at qualified staff.
Conform use
the system and relative components are usable exclusively to the use
previewed in the manual
In order to guarantee a correct and sure operation are indispensable that
the product comes transported, stored correctly, installed, and controlled
second the previewed modalities.
Suitable for use in pollution degree 2 environment.
Open type equipment.
Notes Concerning Electrical Safety and Electromagnetic
Compatibility:
- Control of 16 optically isolated digital inputs, 24Vdc
- Maximum input voltage: 32V 25mA
- Protection against inversion of polarity
- Input trigger maximum voltage for "0" (input OFF) = 12 Vdc
minimum voltage for "1" (input ON) = 15 Vdc
- 100Hz and 5KHz input filters selectable via software
- Inputs independently programmable as system interrupt (via software)
- Isolation > 3kV
- Overvoltage on input for 1ms maximum 1kV
- Power supply: via R-BUS(x) 3.3V backplane
- For UL: supply with class 2 device
Diagnostics
- Green state LED for each input
80124C_MHW_R-E16_0809_ENG

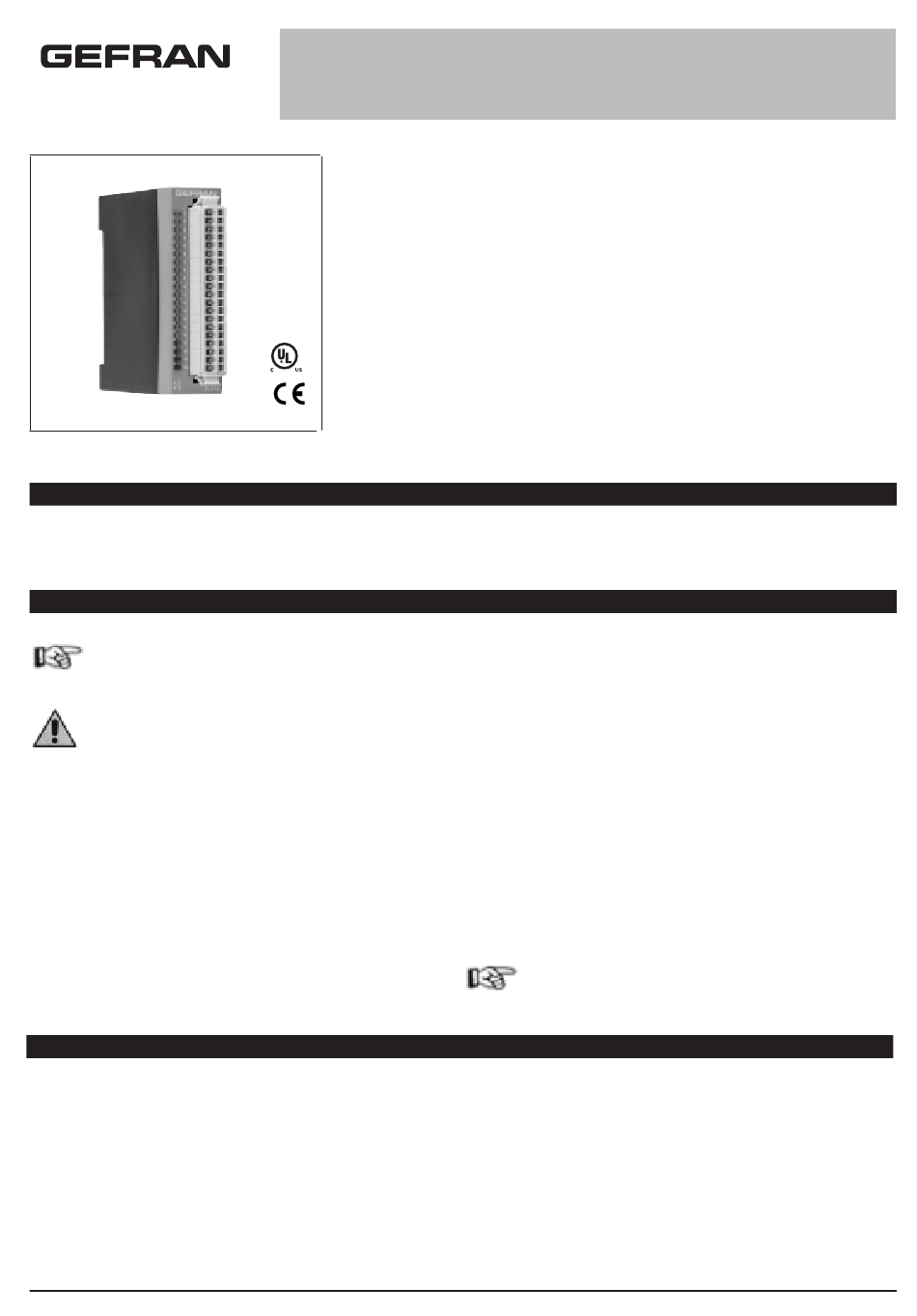

R-E16
16 DIGITAL INPUT MODULE
INSTALLATION AND OPERATION MANUAL
cod. 80124C / Edit 04 - 08/09 - ENG
1 • MAIN FEATURES
I
2 • INSTALLATION AND CONNECTION
3 • TECHNICAL DATA
I
± 25%
• Protection against inversion of polarity
• Interrupt control for each input with front selectable via software
• Removable connector supplied
• CE MARKING: EMC Conformity (electromagnetic compatibility)
in accordance with EEC Directive 2004/108/CE. The GILOGIK II
system is mainly designed to operate in industrial environments,
installed on the switchboards or control panels of productive process
machines or plants.
Norm of applicable product EN 61131-2.
The Declaration of conformity is available on GEFRAN web:
www.gefran.com
• UL listed standard: UL508 file E198546
• BT Conformity (low tension)
in accordance with Directive LVD 2006/95/CE.
Advice for Correct Installation for EMC
Inputs and outputs connection
• The externally connected circuits must be doubly isolated.
• To connect the analogue inputs the following is necessary:
- physically separate the input cables from those of the power supply, the
outputs and the power connections.
- use woven and screened cables, with the screen earthed in one point
only.
GEFRAN S.p.A. declines all responsibility for any damage
to persons or property caused by tampering, neglect,
improper use or any use which does not conform to the
characteristics of the controller and to the indications
given in these Instructions for Use.
M
ECHANICAL DATA
Dimensions: 92x90x25,4mm
Weight: 150g.
Attachment: mechanically snaps onto R-BUS(x)
Protection level: IP20
Connector: front 20 pin female with spring-mounted lock
A C
MBIENT ONDITIONS
Working temerature: 0...50°C
Storage temperature: -20...70°C
Humidity: max. 90% Rh not condensing
For UL: Maximum surrounding air temperature 50°C
