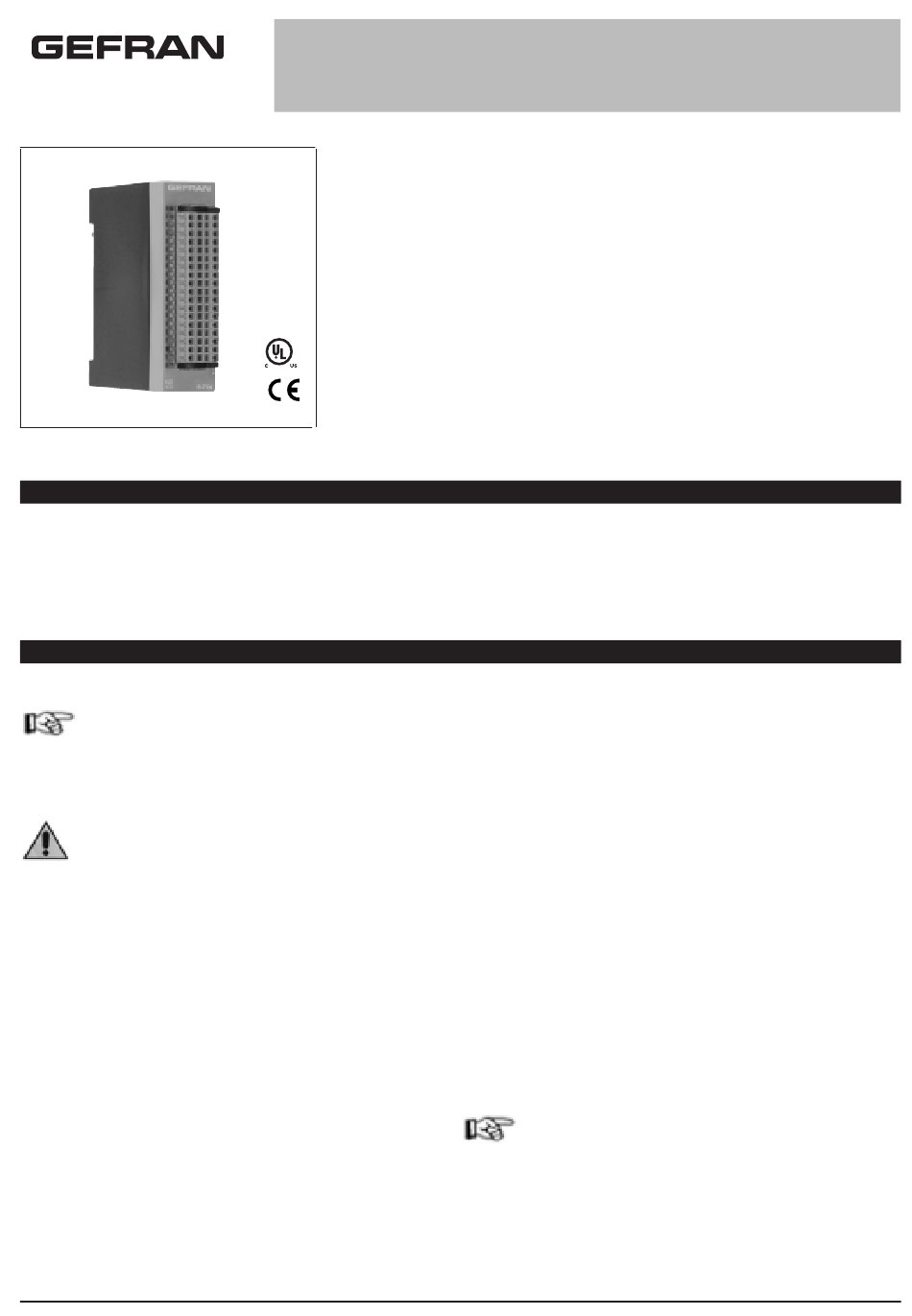

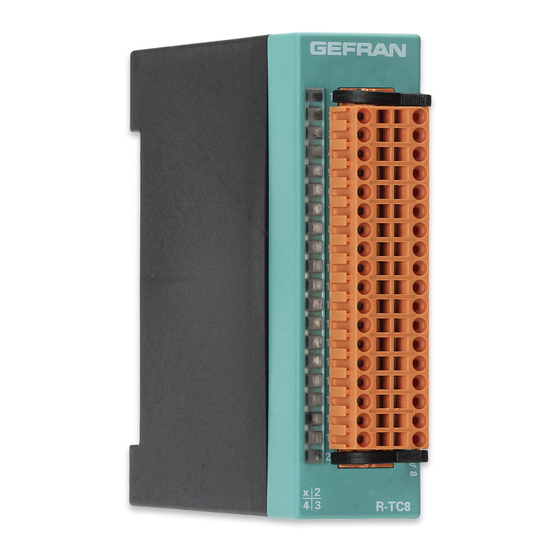

gefran R-TC8 Installation And Operation Manual

• 8 optically isolated inputs for thermocouple, 2 of which are configurable
as input for PT100 resistance thermometers
• Thermocouples type J, K, N, R, S, E, L, T
• 16 isolated digital outputs 24Vdc ± 25%
• Protection against polarity inversion, overload, and overheating.
This section contains the instructions necessary for correct
installation of the GILOGIK II into the machine control panel
or the host system and for correct connection of the system
power supply, inputs, outputs and interfaces.
Before proceeding with installation read the following
warnings carefully!
Remember that lack of observation of these warnings
could lead to problems of electrical safety and electroma-
gnetic compatibility, as well as invalidating the warranty.
Qualified staff
the installation and use of the system and components are only reserved
at qualified staff.
Conform use
the system and relative components are usable exclusively to the use
previewed in the manual
In order to guarantee a correct and sure operation are indispensable that
the product comes transported, stored correctly, installed, and controlled
second the previewed modalities.
Suitable for use in pollution degree 2 environment.
Open type equipment.
Notes Concerning Electrical Safety and Electromagnetic
Compatibility:
• CE MARKING: EMC Conformity (electromagnetic compatibility)
in accordance with EEC Directive 2004/108/CE.
80131D_MHW_R-TC8_1109_ENG
R-TC8
MODULE 8 TEMPERATURE LOOPS
INSTALLATION AND OPERATION MANUAL
cod. 80131D / Edit 05 -11/09 - ENG
1 • MAIN FEATURES
I
2 • INSTALLATION AND CONNECTION
• 1 optically isolated frequency input 1,5kHz
• Software configuration of TC inputs
• Diagnostics LEDs for power supplies, outputs, and alarm
• Removable connector supplied
The GILOGIK II system is mainly designed to operate in industrial
environments, installed on the switchboards or control panels of
productive process machines or plants.
Norm of applicable product EN 61131-2
The Declaration of conformity is available on GEFRAN web:
www.gefran.com
• UL listed standard: UL508 file E198546
• BT Conformity (low tension)
in accordance with Directive LVD 2006/95/CE.
Advice for Correct Installation for EMC
Inputs and outputs connection
• The externally connected circuits must be doubly isolated.
• To connect the analogue inputs the following is necessary:
- physically separate the input cables from those of the power supply, the
outputs and the power connections.
- use woven and screened cables, with the screen earthed in one point
only.
GEFRAN S.p.A. declines all responsibility for any damage
to persons or property caused by tampering, neglect,
improper use or any use which does not conform to the
characteristics of the controller and to the indications
given in these Instructions for Use.
1
