APPLICATIONS:
EXP-TCPIP-BDI/VDI is applied to communicating with the inverter that supports RS485 communication
protocol and it can perform remote control.
DIMENSIONS:
Unit: mm（1inch=25.4mm）
INSTALLATIONS:
CLIMATIC CONDITION:
Temperature : -10°C~+40°C;
Umidity : 95%.
EXP-TCPIP-BDI/VDI

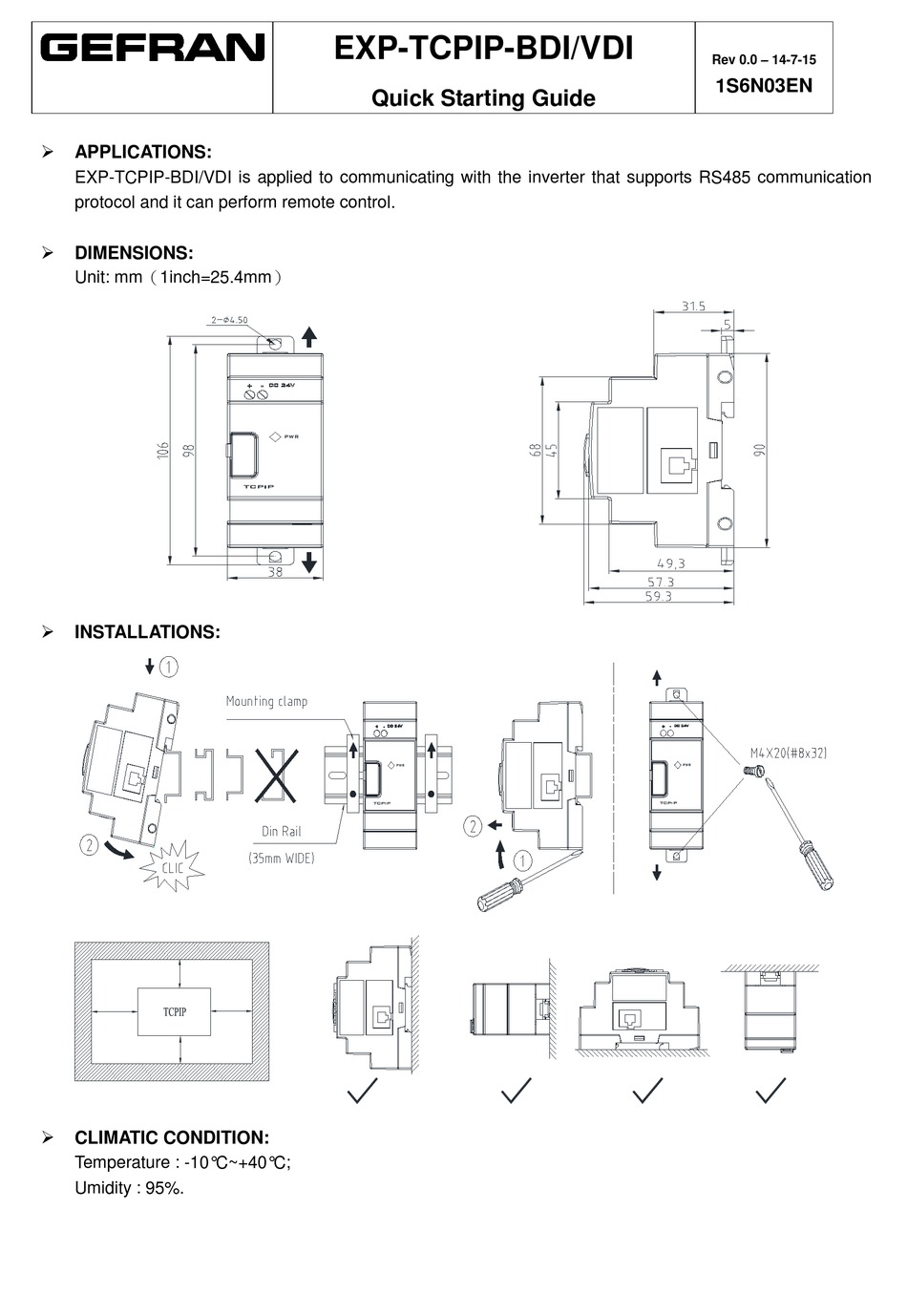

Quick Starting Guide
Rev 0.0 – 14-7-15
1S6N03EN
Advertisement
Table of Contents
Related Manuals for gefran EXP-TCPIP-BDI/VDI
Summary of Contents for gefran EXP-TCPIP-BDI/VDI
- Page 1 EXP-TCPIP-BDI/VDI Rev 0.0 – 14-7-15 1S6N03EN Quick Starting Guide APPLICATIONS: EXP-TCPIP-BDI/VDI is applied to communicating with the inverter that supports RS485 communication protocol and it can perform remote control. DIMENSIONS: Unit: mm（1inch=25.4mm） INSTALLATIONS: CLIMATIC CONDITION: Temperature : -10°C~+40°C;...
- Page 2 1. EXP-TCPIP-BDI/VDI module port can connect directly with PC, which is applied to short-distance monitor. 2. EXP-TCPIP-BDI/VDI module port can connect with network that will be in the same subnet as PC, shown as figure 1 so that it can perform remote control.
- Page 3 Figure 3: Searching for IP address of EXP-TCPIP-BDI/VDI A. IP Address: Each EXP-TCPIP-BDI/VDI will search out the unique IP address which will be in the same subnet as PC and is the only one, different from other IP addresses. B. Hardware Address: Format: 00-20-4A-XX-XX-XX,“XX”presents the unique one.
- Page 4 2. lantronix Instructions (under the conditions of Xport Installer searching for enabled IP address) (1). Click“START” “PROGRAM” “lantronix” “Redirector” “Configuration” and enter the user interface of Lantronix Redirector Configuration, shown as figure 7: Figure7: User interface of Lantronix Redirector Configuration EXP-TCPIP-BDI/VDI Version：V01 Page：4...
- Page 5 (3). Click “Add IP” and enter the interface of IP Service Setup, shown as figure 9: Figure 9: Interface of IP Service Setup Host column is filled out the configured IP address of EXP-TCPIP-BDI/VDI. TCPPort column is filled out”10001.”...
- Page 6 Wiring diagram is shown as the following: 1. Installing host computer software and open it to establish new engineering of VDI100-3110-..2. The communicating connection ways between EXP-TCPIP-BDI/VDI and VDI100-3110-... are virtual COM port and TCPIP. It requires selecting “Baud Rate,” “Parity Bit,” “Stop Bit” and “Station Number” according to the actual parameter when communicating connections.
