(2). Click"Com Setup" and enter the user interface of Com Setup, shown as figure 8. In this user
interface, set up 79 virtual serial ports of Com2- Com80 for PC. Com1 is the existing serial port of
PC so you can not set up virtual serial ports. Select one or several serial ports and click "OK."
(3). Click "Add IP" and enter the interface of IP Service Setup, shown as figure 9:

Host column is filled out the configured IP address of EXP-TCPIP-BDI/VDI.

TCPPort column is filled out"10001."
(4). Click "Port Settings" and enter the interface of Port Setting, shown as figure 10. Select "Raw
Mode" and click "OK."
(5). Select "Silent Mode" in the user interface of Lantronix Redirector Configuration. It can hide pop-up
window, shown as figure 11:
(6). Click "Save" in the interface of Lantronix Redirector Configuration so as to keep the above

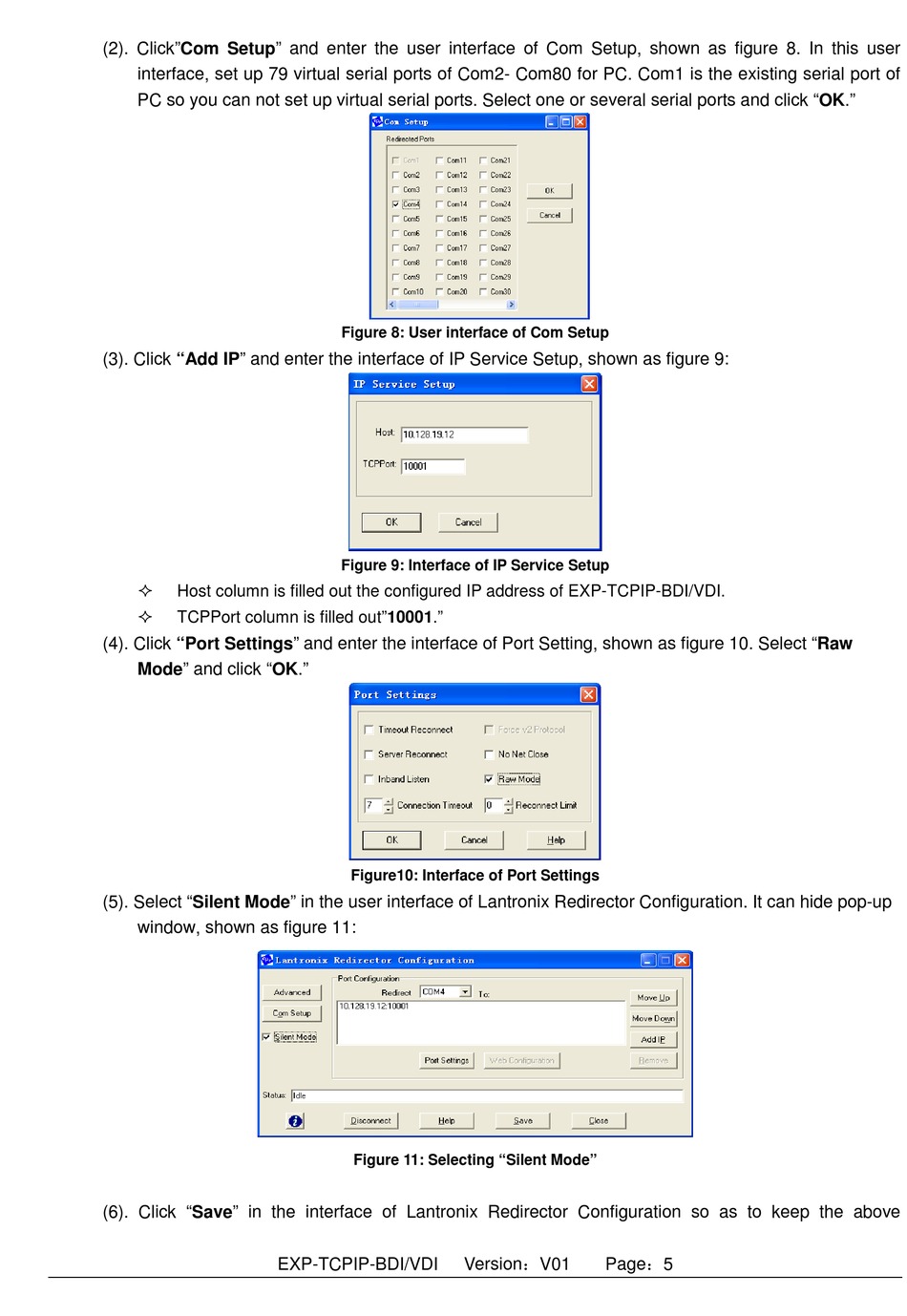

Figure 8: User interface of Com Setup
Figure 9: Interface of IP Service Setup
Figure10: Interface of Port Settings
Figure 11: Selecting "Silent Mode"
