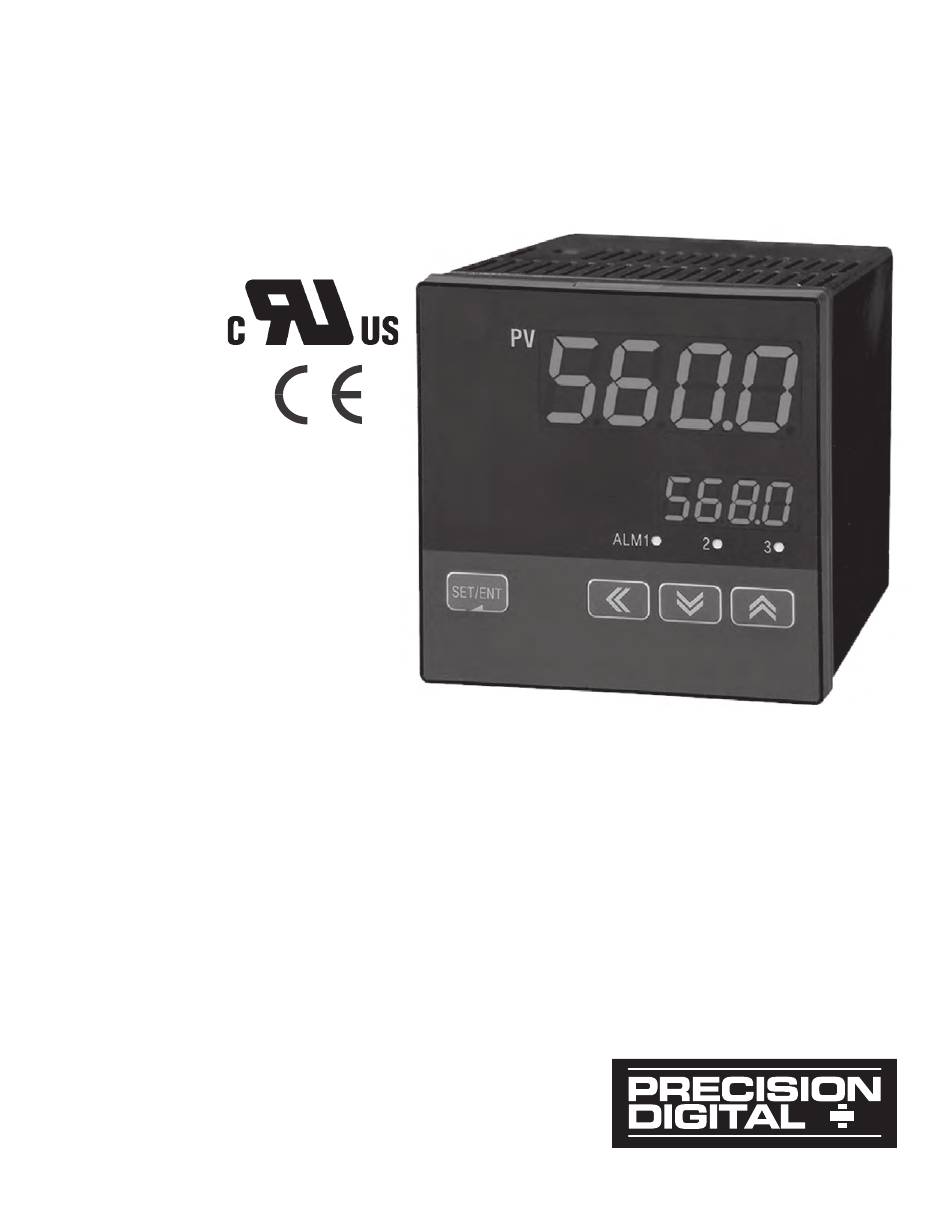

- Page 1 DIGITAL METER ® NOVA PD560 Series Instruction Manual PD562 & PD568 PRECISION DIGITAL CORPORATION GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Disclaimer The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
-
Page 3: Table Of Contents
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Table of Contents 1. Safety Guide and Specifications 1.1 Specifications 2. Front Panel Buttons and LED Indicators 3. Parameter Map 4. Operation Flow Chart 5. Parameter Setup 5.1 Input Group (G.IN) 5.2 Control Group (G.CTL) 5.3 Alarm Group (G.ALM) 5.4 Retransmission Group (G.RET) - Page 4 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 7.6 Grounding and Power Cable Connection 7.7 Signal Input Connection 7.8 Retransmission Output Connection (RET) 7.9 Relay Output Connection (RELAY) 7.10 Digital Input Connection (DI) 7.11 Use of an External Relay 7.12 Communication Wiring (RS-485) Appendix Table of D-Registers...
-
Page 5: Safety Guide And Specifications
(6) Exposure to excessive moisture, electrical overloads, or mechanical vibration may damage the product. Limited Liability Precision Digital Corporation assumes no liability to any party for any loss or damage, direct or indirect, CAUTION caused by the use of or any unpredictable defect of the product. - Page 6 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Operational Environment Precautions (1) Only operate the controller when it is properly installed. CAUTION (2) When installing the controller, select a location where: Rear terminals are protected from accidental contact. Mechanical vibrations are minimal.
-
Page 7: Specifications
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 1.1 SPECIFICATIONS Except where noted all specifications apply to operation at 23ºC. General DISPLAY Dual 4 digits, red LED, -1999 to 9999 DIN Sizes PV Display SP Display Weight mm (inch) mm (inch) g (oz) 19.8 (0.78) 11.5 (0.45) 306 (10.6) - Page 8 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Process and Temperature Inputs TEMPERATURE DRIFT Refer to accuracy specifications below DECIMAL POINT Up to three decimal places for process inputs: 9.999, 99.99, 999.9, or 9999 REAR JUNCTION Automatic or off settings for temperature inputs. No user COMPENSATION calibration required.
- Page 9 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Relay Outputs RATINGS Alarm1: 250 VAC @ 3 A or 30 VDC @ 3 A (resisitive load) Alarm2, 3: 250 VAC @ 1 A or 30 VDC @ 1 A (resistive load) ELECTRICAL NOISE A suppressor (snubber) should be connected to each SUPPRESSION...
-
Page 10: Front Panel Buttons And Led Indicators
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 2. Front Panel Buttons and LED Indicators Control Keys Function Pressing SET/ENT key for at least 3 seconds switches between the operating display and SET/ENT the parameter setting display. This key is used to verify and bypass parameter settings (ENTER) when in the parameter group display. -
Page 11: Parameter Map
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 3. Parameter Map PwD: Lockout Password Use the arrows to enter the NOTE password and press the SET/ENT key. The default password is 0. SET /ENT G.ALM G.RET G.COM G.CTL G.IN SET /ENT SET /ENT... -
Page 12: Operation Flow Chart
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 4. Operation Flow Chart Power On When setting controller Operation Display parameters, G.IN should be set Group Display up prior to any other parameters. PV Value G.CTL (note 1) ENT 3 sec G.IN (note 2) ENT key for... -
Page 13: Parameter Setup
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 5. Parameter Setup 5.1 Input Group (G.IN) Press SET/ENT key to select input group. Press press key to cycle through groups as shown below. (Refer to parameter map in section 3.) G.CTL G.IN G.COM... - Page 14 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual This parameter sets the display temperature unit for ºC or ºF. Its default selection is ºC. Refer to Table 1 when changing the temperature unit for the temperature input range. This parameter sets the high limit of the temperature display range (maximum temperature displayed).
-
Page 15: Fig 2: Bias Formula Calculation
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 0ºC = BS4 -3ºC = BS3 -3ºC Original Temperature Temperature After Bias +1ºC = BS2 +1ºC -2ºC = BS1 -2ºC 0ºC = BS0 BSP1 BSP2 BSP3 0ºC 50ºC 75ºC 100ºC 25ºC Fig 1: Temperature Bias Example 1:... - Page 16 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Input Group Parameter Summary Display Parameter Setting Range Unit Default Remark Refer to Table 1: Universal Input Selection IN-T Input Type TC.K1 ºC / ºF ºC IN-U Display Unit T/C, RTD Max PV IN.RH Within sensor input range...
-
Page 17: Control Group (G.ctl)
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 5.2 Control Group (G.CTL) Press SET/ENT key to select control group. (Refer to parameter map in section 3.) G.CTL G.IN G.COM G.RET G.ALM This parameter displays the lowest input value that has occurred. It stores this information until the unit is turned off. - Page 18 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual This parameter sets the high limit of the sensor input in the PV display. The PV value will not display higher than this limit, however the control functions will operate based on the actual input value.
-
Page 19: Alarm Group (G.alm)
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 5.3 Alarm Group (G.ALM) Press SET/ENT key to select alarm group. (Refer to parameter map in section 3.) G.CTL G.IN G.COM G.RET G.ALM The parameter to establish the type of alarm to be used for alarm relay output 1 (ALARM1: relay output). -
Page 20: Fig 3: Alarm Operation
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Table 3: Alarm Selection Operation Standby Alarm Type Display Data Absolute Value High Limit Alarm AH.F Absolute Value Low Limit Alarm AL.F Absolute Value High Limit Alarm AH.R Absolute Value Low Limit Alarm AL.R Absolute Value High Limit Alarm with Standby AH.FS... - Page 21 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Alarm Group Parameter Summary Setting Range Display Parameter Unit Default Remark ALT1 Alarm Type 1 Refer to Table 3: Alarm Selection AH.F Set Value of AEU (-100.0 to 00.0%) AL-1 AEU (100.0%) Alarm 1 GEU (0.0 to 100.0%)
-
Page 22: Retransmission Group (G.ret)
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 5.4 Retransmission Group (G.RET) Press SET/ENT key to select retransmission group. (Refer to parameter map.) G.CTL G.IN G.COM G.RET G.ALM This parameter sets the type of retransmission output used. The retransmitting output can be a 4-20 mA signal based on the PV, or LPS for a loop power supply. -
Page 23: Communication Group (G.com)
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 5.5 Communication Group (G.COM) Press SET/ENT key to select communication group. (Refer to parameter map.) G.CTL G.IN G.COM G.RET G.ALM The parameter to select the type of communication protocol to be used. The parameter to set the communication speed (baud rate). - Page 24 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Communication Group Parameter Summary Setting Range Display Parameter Unit Default Remark Communication PCC0, PCC1, Modbus ASCII, COM.P PCC0 Option Protocol Modbus RTU BAUD Baud Rate 600, 1200, 2400, 4800, 9600, 19200 9600 Option None, Even, Odd...
-
Page 25: Error Display And Correction
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 6. Error Display and Correction Error Message Error Incident Action Needed E.SYS EEPROM, DATA Loss Needs Repair E.RJC RJC Sensor Failure Needs Repair SP Decimal Communication Failure Check Comm Cable Flashing S.OPN Open Sensor Detected... -
Page 26: Installation
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 7. Installation 7.1 Dimensions and Panel Cutouts PD568 1/4 DIN (3.78) (0.45) (3.92) (4. 72) (3. 78XN) (3. 62) Units: (inch) - for reference only GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 27 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual PD562 1/8 (H) DIN 9 9 .6 (3.78) (3.92) (0.45) (4.72) +0 .6 (3.62) Units: (inch) - for reference only GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 28: Panel Mounting
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 7.2 Panel Mounting PD568 Mounting Bracket Panel PD562 Mounting Bracket Panel Installation Steps 1. Cut the mounting panel. (Refer to 7.1 Dimensions and Panel Cutouts) 2. Insert the controller through the front of the panel rear terminals first. 3. -
Page 29: Power Cable Specifications
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 7.3 Power Cable Specification Make power connections using 0.9 to 2.0 mm or 16 AWG vinyl insulated wire. (Voltage rating of 300 VAC) 7.4 Terminal Specification Use M3.5 screw-compatible crimp on terminals with insulating sleeve as shown below. Minimum Diameter 3.0 mm (0.118 in) -
Page 30: Terminal Assignment, Connections, And Ratings
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 7.5 Terminal Assignment, Connections, and Ratings PD568 Rating: 250 VAC @ 1 A 30 VDC @ 1 A Rating: 250 VAC @ 3 A 30 VDC @ 3 A Rating: 250 VAC @ 1 A 30 VDC @ 1 A Max: 19200 bps 100 - 240 VAC 50/60 Hz... - Page 31 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual PD562 100 - 240 VAC 50/60 Hz Rating: 250 VAC @ 3 A 30 VDC @ 3 A NO switches (external excitation not required) or open collector transistor 2 0 19 18 17 16 15 14 13 12 11 Open circuit voltage: approximately 5 VDC Logic levels:...
-
Page 32: Grounding And Power Cable Connection
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 7.6 Grounding and Power Cable Connection Use a thick grounding cable of at least 2 mm or 14 AWG and shorter than 20 m (approximately 22 ft) for class-3 grounding or better with a grounding resistance of less than 100 Ω . Be sure to ground from the grounding terminal to an independent grounding point. -
Page 33: Retransmission Output Connection (Ret)
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual 7.8 Retransmission Output Connection.(RET) To prevent electric shock, be sure to turn off power to the Nova Controller and the source circuit breaker before wiring. CAUTION Be sure to connect to correct polarities. Connecting to a wrong polarity may cause a controller malfunction. Use shielded wires for the wiring and connect independently to ground (1 point grounding). -
Page 34: Digital Input Connection (Di)
1. Use capacitors rated for 250 VAC. 2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation. 3. RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901. -
Page 35: Communication Wiring (Rs-485)
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual (2) AC External Relay External AC Power Meter CAUTION CR Filter (snubber) (Connect directly to the relay coil terminals) Relay (Verify relay coil ratings are less than the voltage and current ratings of the relay contacts of the controller) CAUTION 7.12 Communication Wiring (RS-485) -
Page 36: Table Of D-Registers
PD560 Series Nova Digital Process and Temperature Meter Instruction Manual Table of D-Registers: The following data registers are used to direct the US1 and US2 commands or for Modbus communication. PROCESS FUNCTION SET POINT SIGNAL ALARM IN/OUT ALT1 IN-T ALT2 INT-U ALT3 IN.RH... - Page 37 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual PROCESS FUNCTION SET POINT SIGNAL ALARM IN/OUT RETH RETL COM.P BAUD PRTY SBIT DLEN ADDR RP.TM GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 38 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual PROCESS FUNCTION SET POINT SIGNAL ALARM IN/OUT Read Only Location NOTE GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 39 Any returns under a warranty claim should be returned freight prepaid. Upon warranty confirmation Precision Digital will repair or replace and return the unit at no charge via UPS Ground. Other shipping is available upon request and at customer expense. All product returns should be shipped to:...
- Page 40 PD560 Series Nova Digital Process and Temperature Meter Instruction Manual LIM560_D 10/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
