PRECISION DIGITAL ProVu Series Quick Start Manual

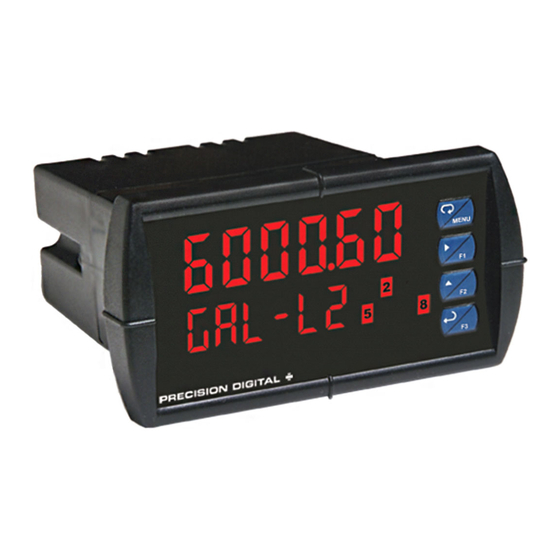

ProVu PD6000 Process Meter
Thank you for your purchase of the
ProVu PD6000 process meter.
This quick start guide will briefly
describe some of the common setup
procedures for this meter.
This guide includes:
Installing MeterView Pro......................
Basic Wiring for ProVu Meter..............
Program and Scale the Input...............
Program Relays for Automatic Reset...
Program Custom Unit Tags..................
Program 4-20 mA Analog Output.........
Reset Meter to Factory Defaults..........
For additional information about the
ProVu PD6000 meter not covered in
this quick start guide, please consult
the instruction manual included on the
CD or available at
P
R
© 2016 Precision Digital Corporation.
.
All rights reserved
Quick Start Guide
www.predig.com.
V
U
S
ERIES
Menu Button - Use this button to
access Programming Mode and to
return to Run Mode.
Note: If you think you have made a mistake while
programming the meter, use this button to
return the meter to Run Mode without saving.
Right/F1 Button - Use this button to
2
change the selected digit while input-
3
ting a numeric value in Programming Mode.
4
5
Up/F2 Button - Use this button to
6
increment the selected digit while
inputting a numeric value in Programming
7
Mode.
8
Enter/F3 Button - Use this but-
ton to access or accept a menu
item while in Programming Mode.
®
233 South Street
Hopkinton MA 01748-2208 USA
Tel. (508) 655-7300 www.predig.com
MeterView Pro
USB Install
